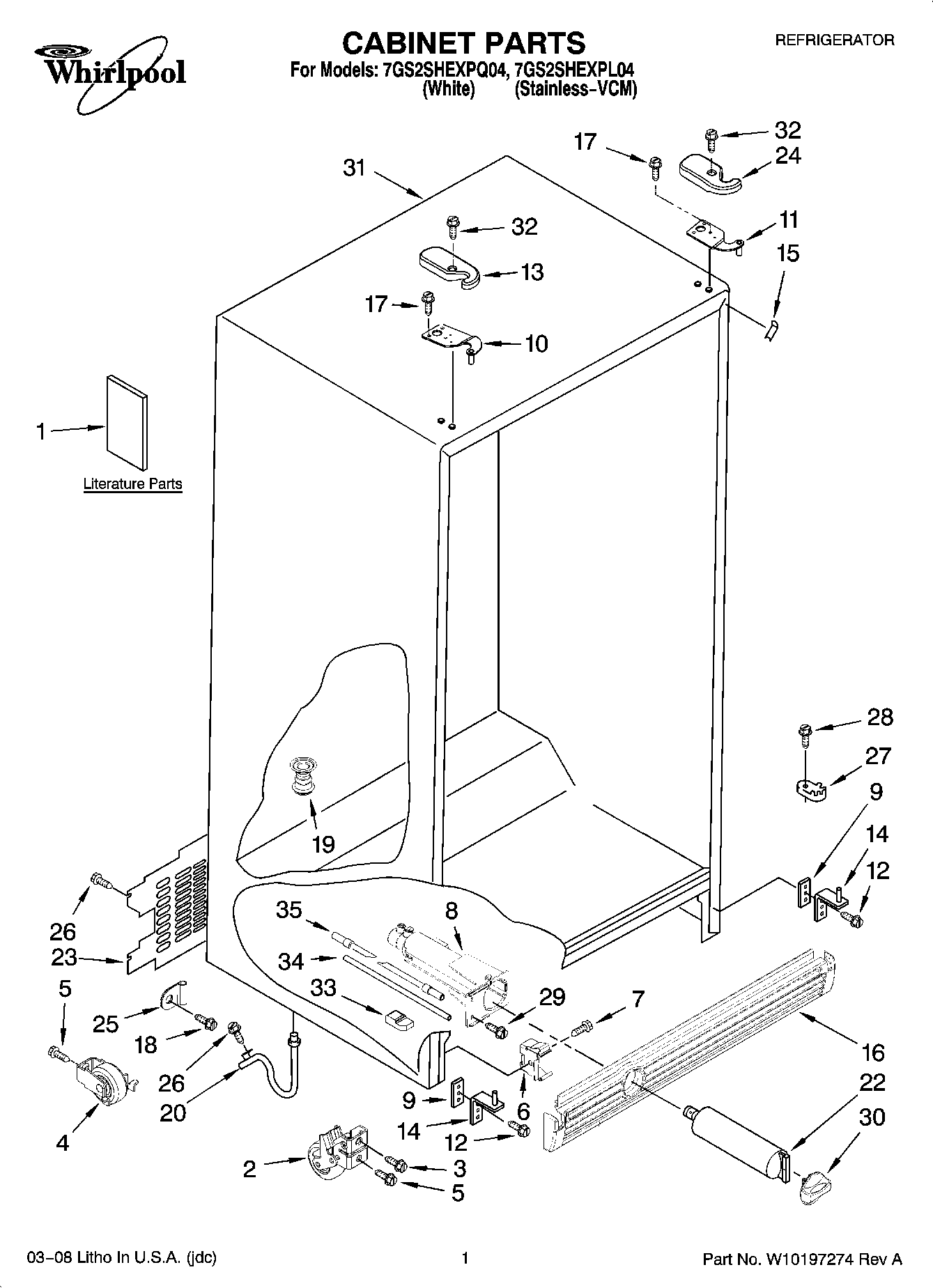

7GS2SHEXPQ04 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP2186443 Whirlpool Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP489497 Whirlpool Screw
13	WP2203407B Whirlpool Refrigerator Cover
13	WP2203407W Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (White)
15	Filler, Wrapper (Black)
16	W10802713 Whirlpool Refrigerator Grille
18	W11693756 Whirlpool Screw Assembly
19	W11566763 Whirlpool Fitting
20	Extension Tube
22	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
23	COVER, UNIT
24	WP2203408B Whirlpool Refrigerator Cover
24	WP2203408W Whirlpool Refrigerator Cover
25	489348 Whirlpool Refrigerator Tube Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP489500 Whirlpool Refrigerator Screw
30	WP2186494W Whirlpool Water Filter Cap
30	WP2186494B Whirlpool Refrigerator Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
33	Block, Housing Support
34	W11496481 Whirlpool Refrigerator Water Tube
35	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
