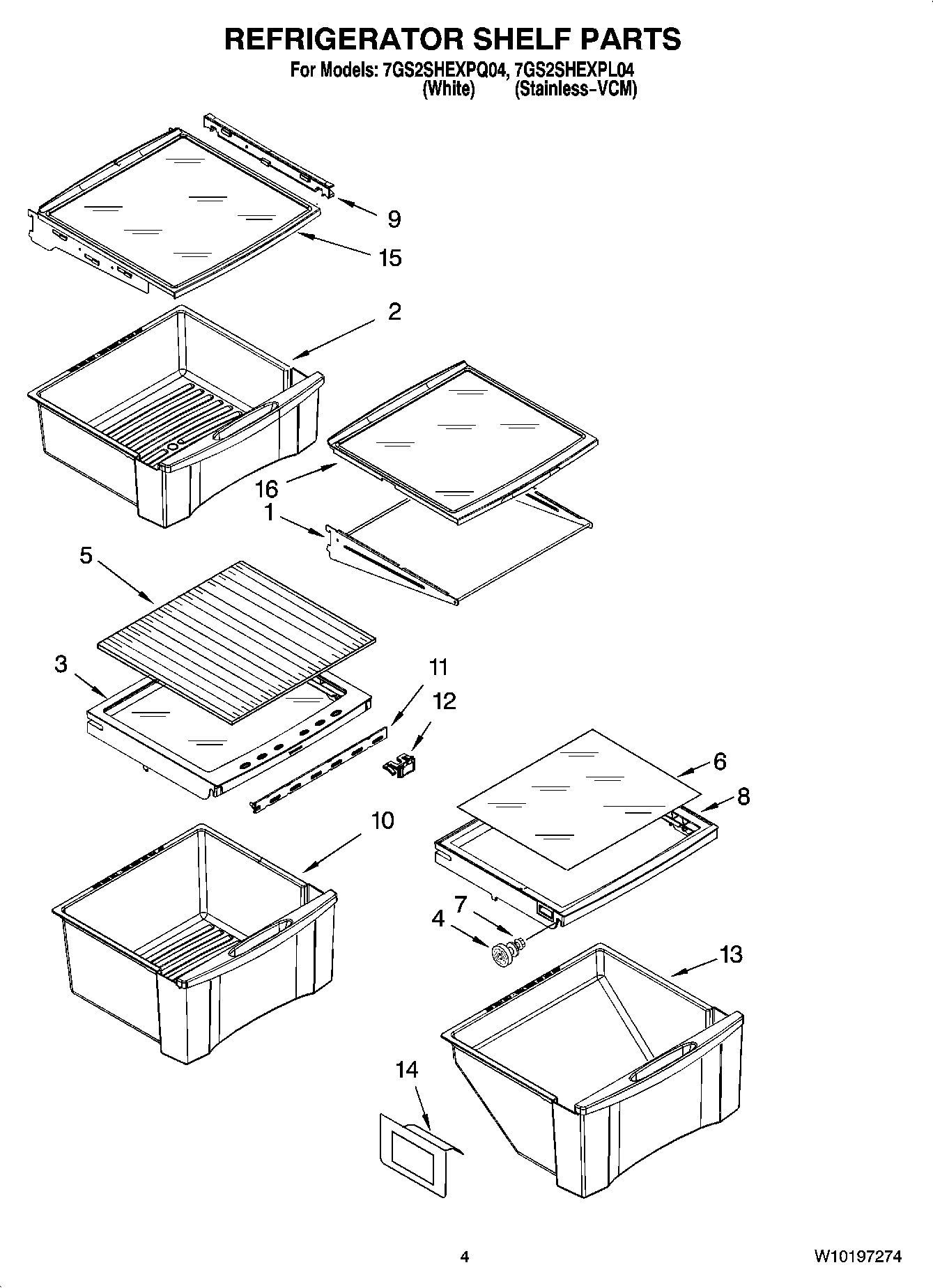

7GS2SHEXPQ04 03 – REFRIGERATOR SHELF PARTS

7GS2SHEXPQ04 03 – REFRIGERATOR SHELF PARTS

Written by

in

7GS2SHEXPQ04 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2Snack Bin Asm
3Cover, Crisper
4W11223328 Whirlpool Refrigerator Shelf Stud
5WP2223591 Whirlpool Refrigerator Glass Shelf
6Glass, Meat Cover
7WP3-24004-109 Whirlpool Refrigerator Screw
8WP2223242 Whirlpool Refrigerator Cover
9WP2223320 Whirlpool Slide Track Pan
10WPW10233488 Whirlpool Refrigerator Crisper Pan
112223308 Whirlpool Refrigerator Slide
12Knob, Humidity Control
13Meat Pan Assembly
142179350 Whirlpool Refrigerator Deflector
15WP2223288 Whirlpool Refrigerator Cantilever Shelf
16Shelf, Slide Out (2)
