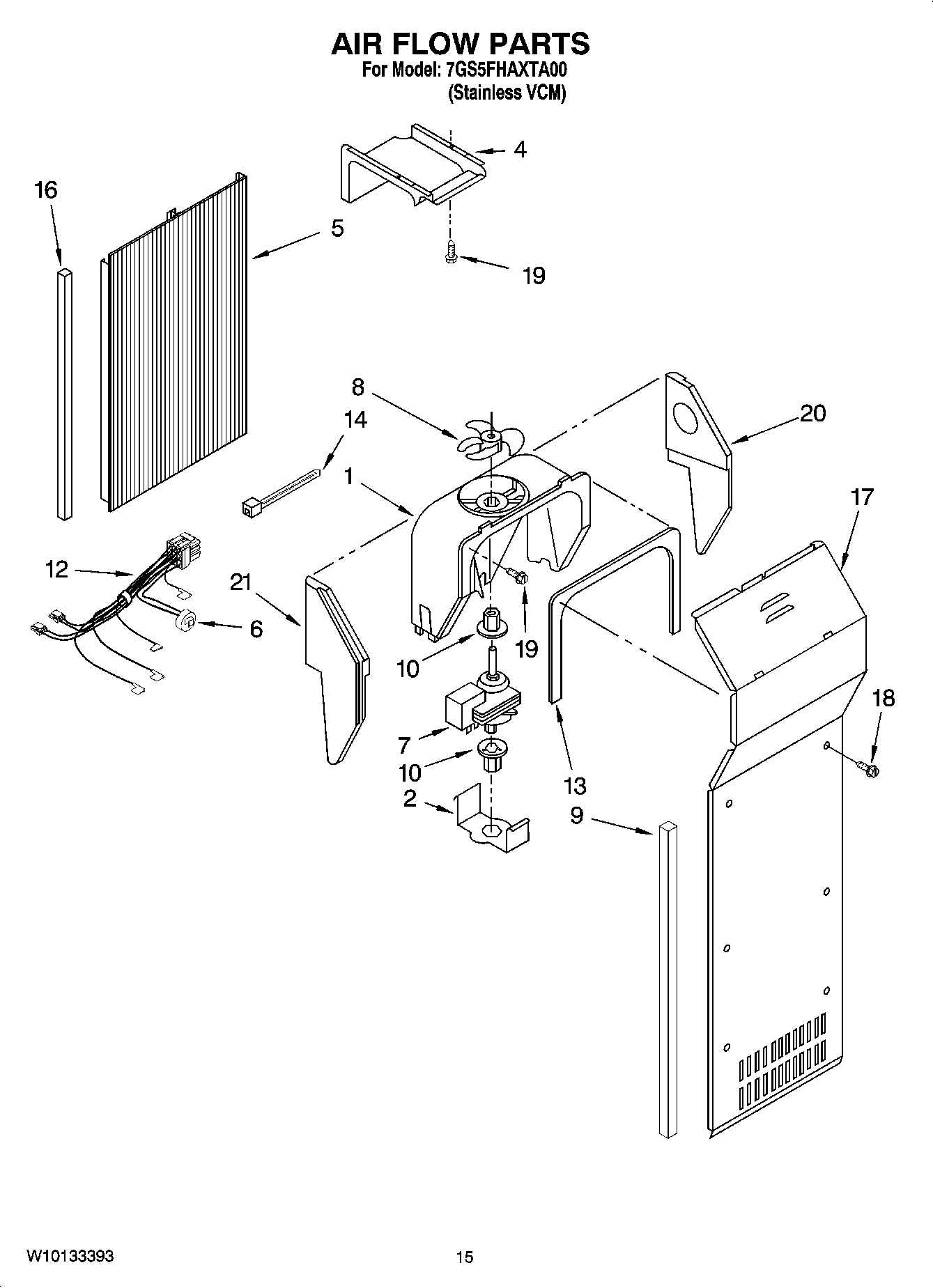

7GS5FHAXTA00 09 – AIR FLOW PARTS

7GS5FHAXTA00 09 – AIR FLOW PARTS

Written by

in

7GS5FHAXTA00 09 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
42313359 Whirlpool Refrigerator Air Duct
5Air Duct Freezer
6WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
122310237 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator (Includes 9)
184389654 Whirlpool Screw
19WP489478 Whirlpool Refrigerator Screw
204388358 Whirlpool Refrigerator Support Bracket
