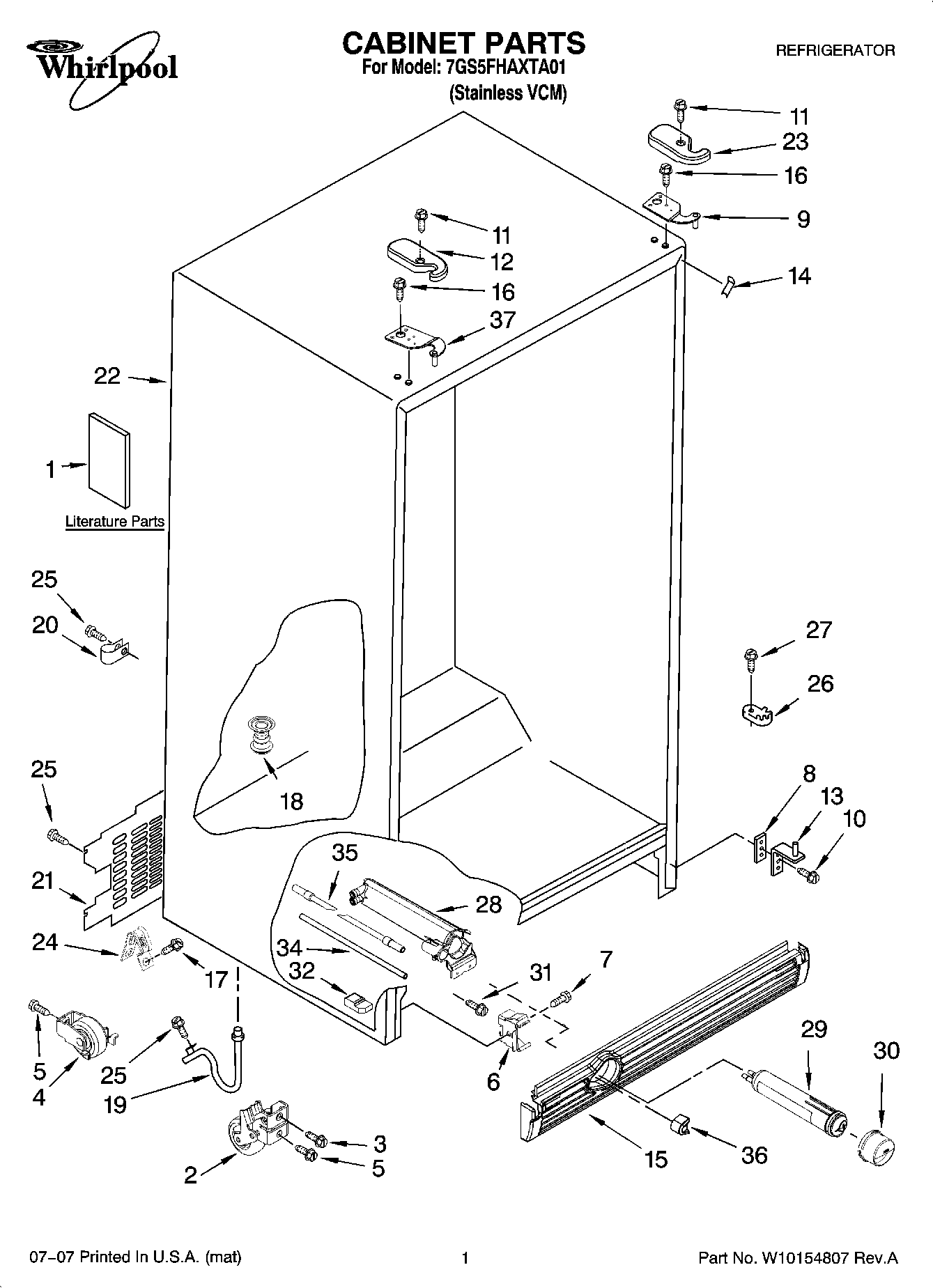

7GS5FHAXTA01 01 – CABINET PARTS

7GS5FHAXTA01 01 – CABINET PARTS

Written by

in

7GS5FHAXTA01 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, ICEMAKER
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET (DOOR REMOVAL)
1Use & Care Guide
1Service & Wiring Sheet
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489399 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP489497 Whirlpool Screw
11WP8281227 Whirlpool Screw
122203407AP Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Apollo Grey)
15Grille (Apollo Gray)
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Extension Tube
21Cover, Unit
22Cabinet, (Not A Serviceable Part)
232203408AP Whirlpool Refrigerator Cover
24489348 Whirlpool Refrigerator Tube Clamp
26WPW10329686 Whirlpool Door Cam Black
27WP489483 Whirlpool Screw
28WPW10121138 Whirlpool Refrigerator Water Filter Housing
29FILTER 3-SINGLE TEAL
30WP2260518AP Whirlpool Filter Cap Assembly
31WP489500 Whirlpool Refrigerator Screw
32Block, Housing Support
34WPW10350006 Whirlpool Refrigerator Water Tube
358201597 Whirlpool Inlet Water Fill Tube Kit Filter
36Button, Water
37WP2203770 Whirlpool Refrigerator Door Hinge
