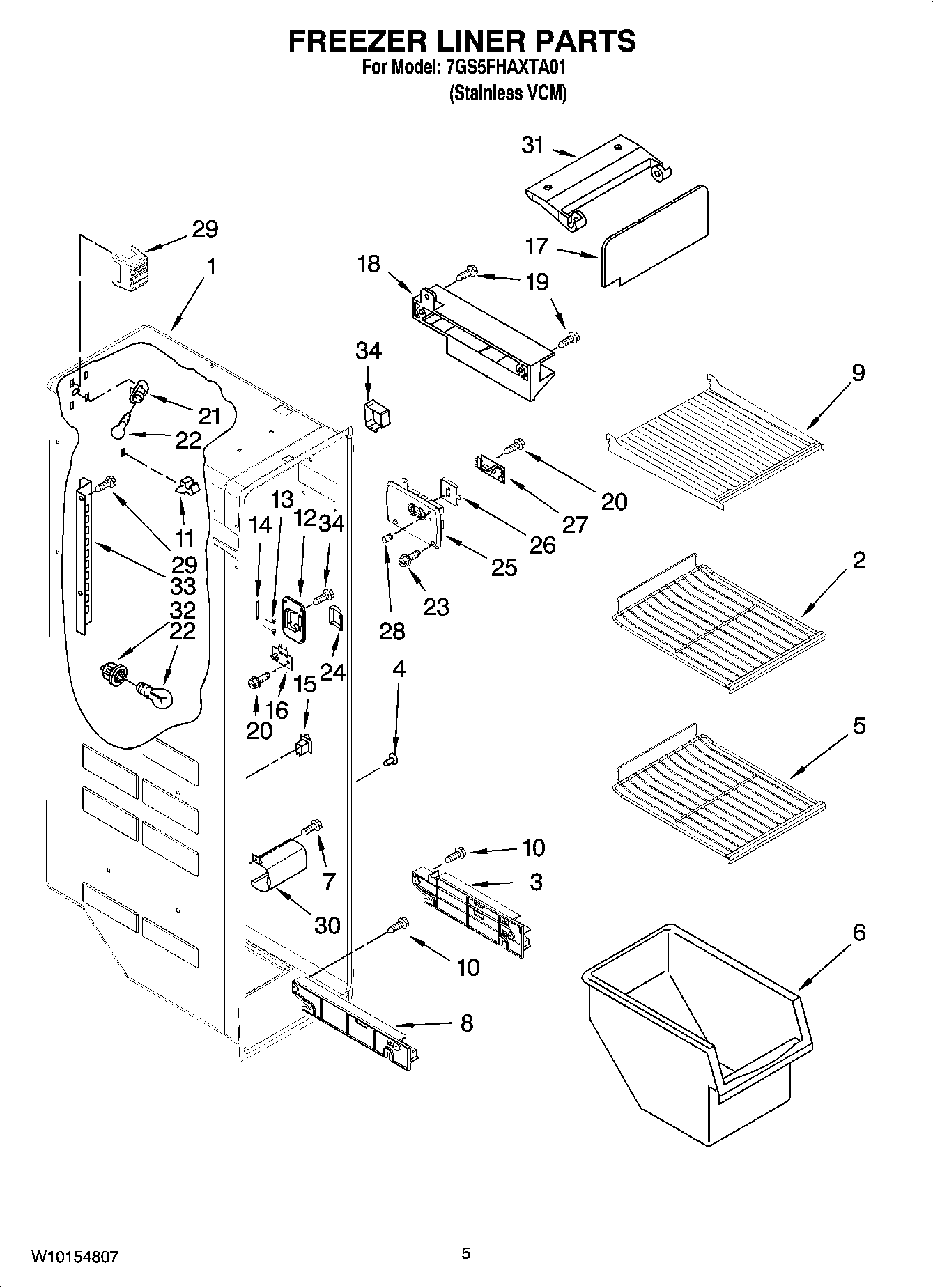

7GS5FHAXTA01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Shelf, Slide Out Upper
3	2301291 Whirlpool Refrigerator Track
3	2301292 Whirlpool Refrigerator Track
4	WP941839 Whirlpool Refrigerator Button Plug
5	WPW10317556 Whirlpool Refrigerator Wire Shelf
6	WP2182971 Whirlpool Refrigerator Freezer Bin
7	W10142289 Whirlpool Air Conditioner Screw
8	Shelf Track (Right Side)
8	Shelf Track (Left Side)
9	Shelf (2)
10	W10759522 Whirlpool Screw
11	2215823 Whirlpool Refrigerator Clip
12	WP2198587 Whirlpool Refrigerator Cover
13	WP2198635 Whirlpool Refrigerator Spring
14	WP2198634 Whirlpool Door Pin
15	W11457217 Whirlpool Refrigerator Rocker Switch Combination
16	W10757851-includeCORE Whirlpool Electronic Control+Core
17	WP2255720 Whirlpool Refrigerator Ice Maker Door
18	Slide, Ice Maker
19	WP489478 Whirlpool Refrigerator Screw
20	2006254 Whirlpool Refrigerator Screw
21	4387478 Whirlpool Refrigerator Light Socket
22	RANGE ONLY 40W 120V APPL BULB
23	WPW10142283 Whirlpool Refrigerator Screw
24	WP2198633 Whirlpool Refrigerator Flipper
25	Cover, Receiver
26	2315398 Whirlpool Refrigerator Slide
28	WP2198643 Whirlpool Refrigerator Lens
29	Light Shield
30	Light Lens
31	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
32	SOCKET
33	Ladder (Left Side)
33	Ladder (Right Side)
34	2303234 Whirlpool Refrigerator Shield
