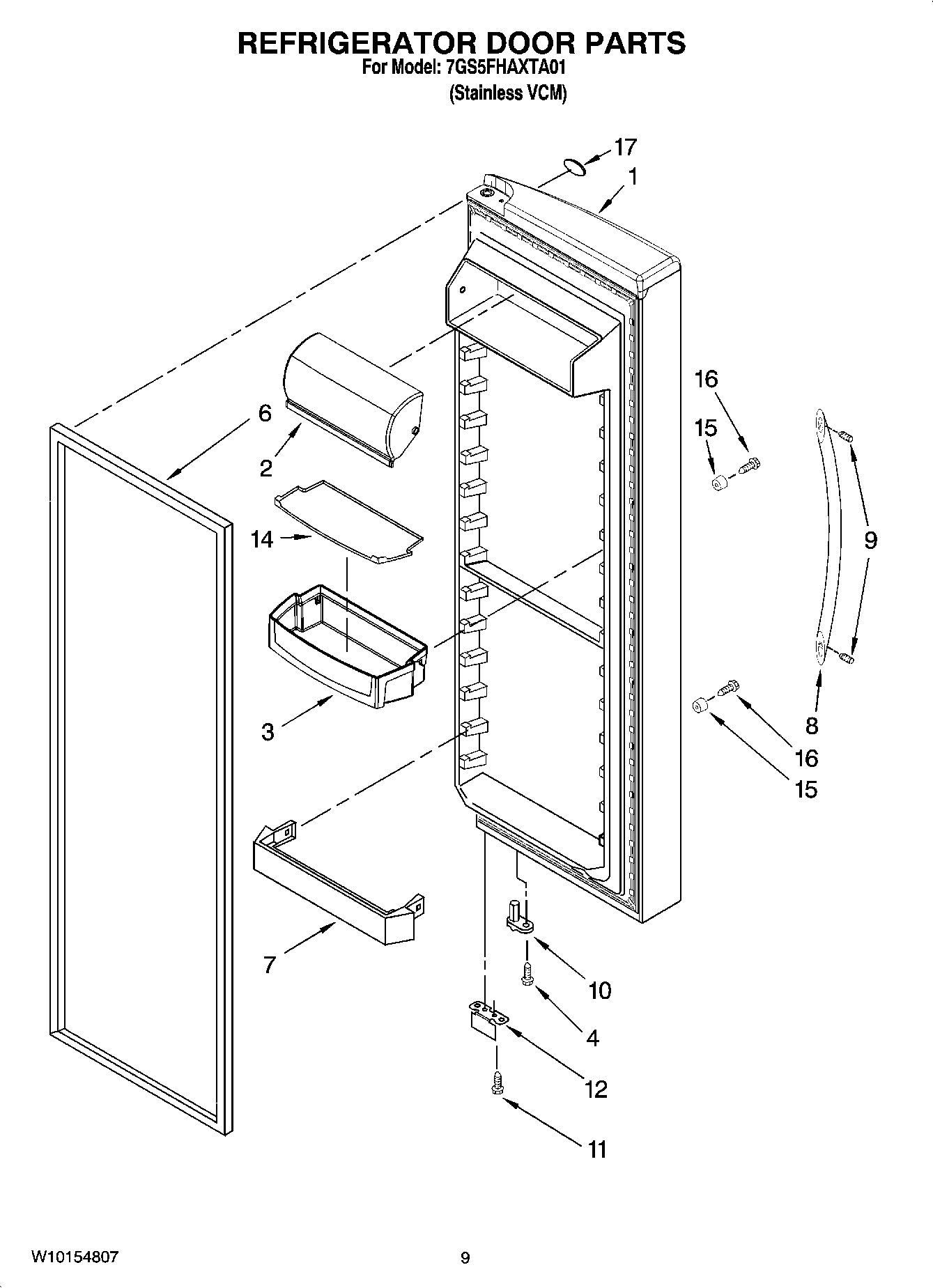

7GS5FHAXTA01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Stainless VCM)
2	WP2256101 Whirlpool Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
6	WPW10136734 Whirlpool Refrigerator Door Gasket
7	WP2156022 Whirlpool Refrigerator Door Trim
8	Handle (Stainless)
9	SCREW
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop
14	Mat, Bin (2)
15	WPW10170540 Whirlpool Screw
16	WP488163 Whirlpool Refrigerator Screw
17	Nameplate
