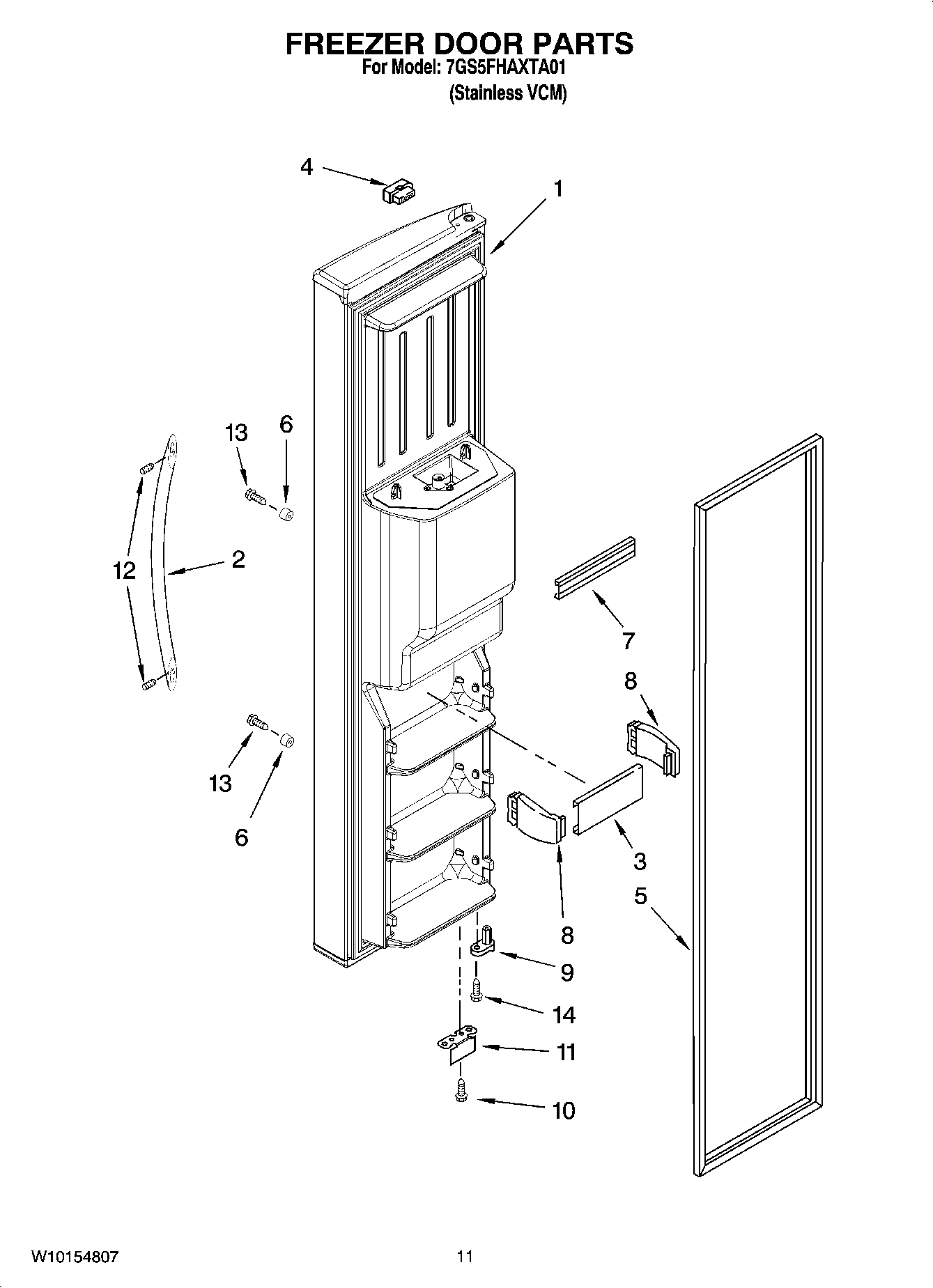

7GS5FHAXTA01 07 – FREEZER DOOR PARTS

7GS5FHAXTA01 07 – FREEZER DOOR PARTS

Written by

in

7GS5FHAXTA01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 5 And Dispenser Front Parts) (Stainless VCM)
2Handle (Stainless)
32313199 Whirlpool Refrigerator Door Trim
4Connector
5W10136735 Whirlpool Refrigerator Door Gasket
6WPW10170540 Whirlpool Screw
7WPW10307490 Whirlpool Door Trim Assembly
8WP2195917K Whirlpool Refrigerator Endcap
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11Bracket, Door Stop
12SCREW
13WP488163 Whirlpool Refrigerator Screw
14WP3400012 Whirlpool Refrigerator Screw
