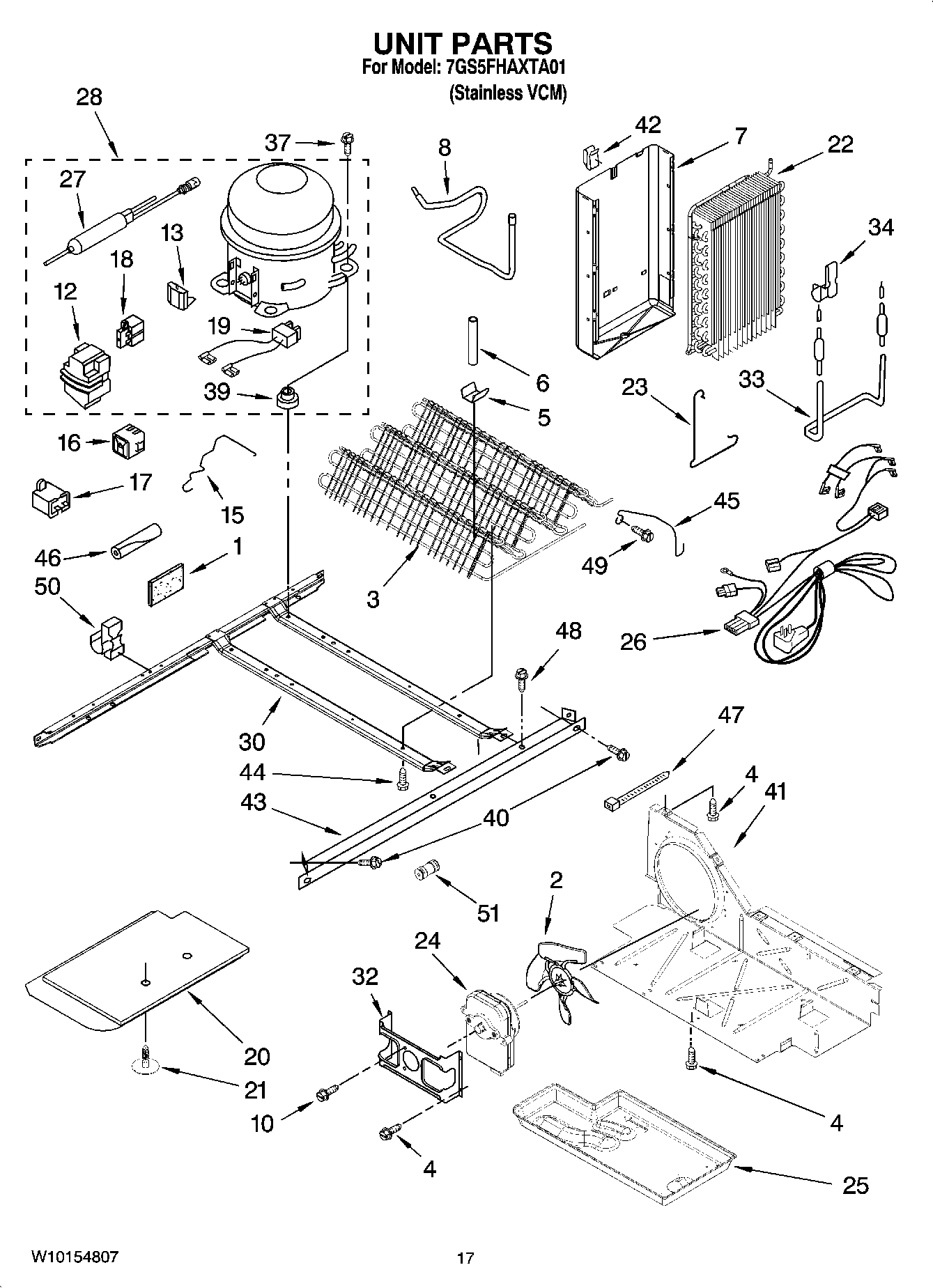

7GS5FHAXTA01 11 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	Bushing, Compressor
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
10	WP8533993 Whirlpool Refrigerator Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
15	2223314 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10920279 Whirlpool Refrigerator Start Relay
19	WP2172890 Whirlpool Refrigerator Wire
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WP2187605 Whirlpool Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10139460 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	2305374 Whirlpool Refrigerator Unit Rail
44	W11544659 Whirlpool Refrigerator Screw
45	2260517 Whirlpool Fan Guard
46	SLEEVE
47	WPW10339879 Whirlpool Wire Tie
48	WP489427 Whirlpool Refrigerator Screw
49	WP489478 Whirlpool Refrigerator Screw
50	Clip, Wire & Tube
51	Following Parts Not Illustrated and
51	876764 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (1/2“)
51	WP978025 Whirlpool Refrigerator Valve
51	VALVE, ACCESS (5/8“)
51	978030 Whirlpool Refrigerator Valve
51	WPW10334458 Whirlpool Refrigerator Connector
51	978027 Whirlpool Refrigerator Primary Valve
51	978026 Whirlpool Refrigerator Primary Valve
51	WPL ARI17332A8
