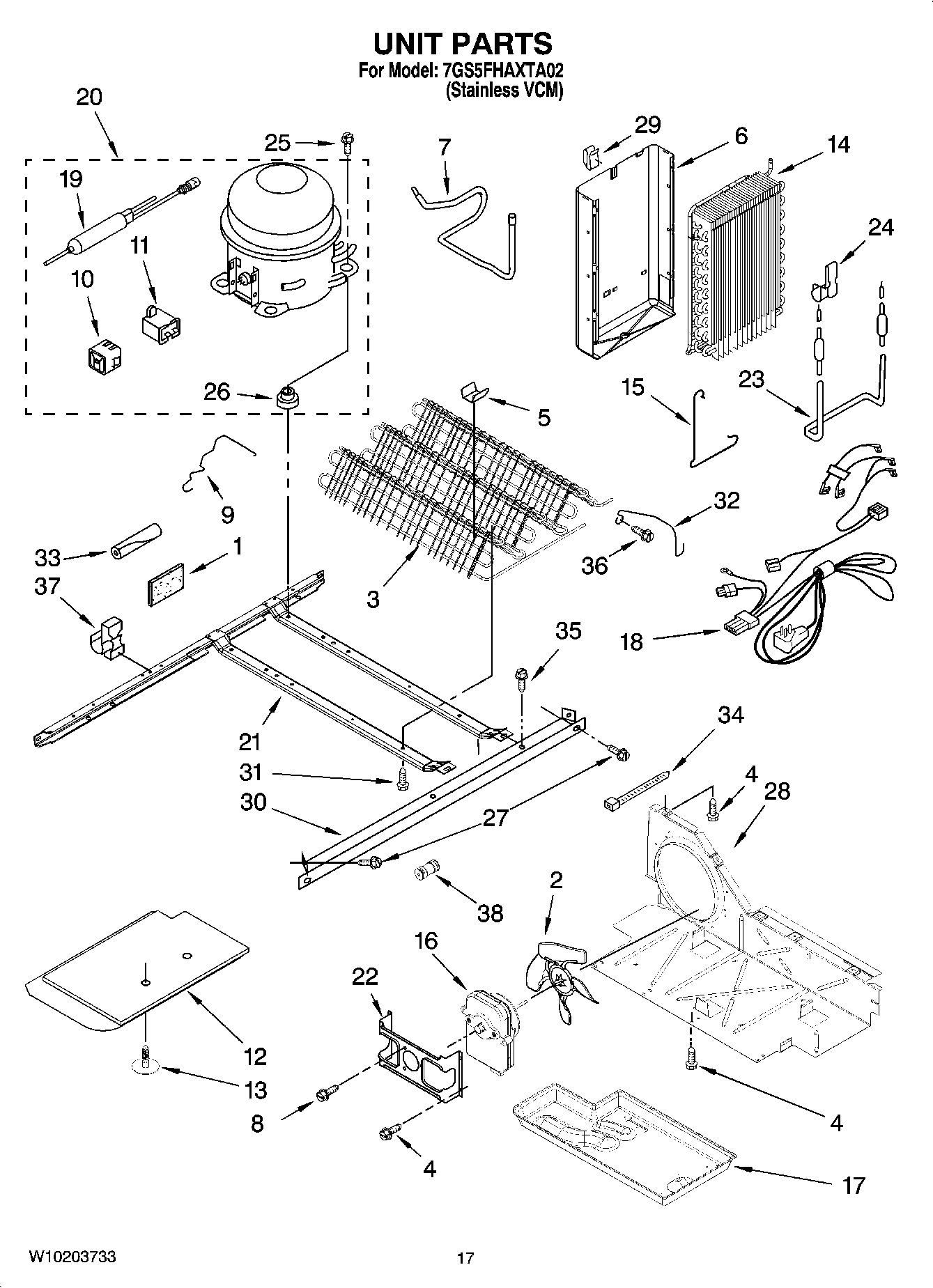

7GS5FHAXTA02 11 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	Heat Shield
7	WP2205765 Whirlpool Refrigerator Tube
8	WP8533993 Whirlpool Refrigerator Screw
9	2223314 Whirlpool Refrigerator Clip
10	WP2304885 Whirlpool Refrigerator Start Device
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	Unit Cover, Bottom
13	489396 Whirlpool Refrigerator Clip
14	WP2188823 Whirlpool Refrigerator Evaporator
15	Clamp
16	WP2188874 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	WP2187605 Whirlpool Wire Harness
19	WPW10143759 Whirlpool Dryer Filter
20	W10139460 Whirlpool Refrigerator Compressor
21	2304904 Whirlpool Frame Assembly
22	WP2181929 Whirlpool Refrigerator Bracket
23	WP2323198 Whirlpool Refrigerator Heater
24	W11623163 Whirlpool Refrigerator Clip
26	876811 Whirlpool Grommet
26	WP4387558 Whirlpool Refrigerator Compressor Grommet
27	489340 Whirlpool Refrigerator Screw
28	W10896764 Whirlpool Refrigerator Air Baffle
29	Clip, Heat Shield
30	2305374 Whirlpool Refrigerator Unit Rail
31	W11544659 Whirlpool Refrigerator Screw
32	2260517 Whirlpool Fan Guard
33	SLEEVE
34	WPW10339879 Whirlpool Wire Tie
35	WP489427 Whirlpool Refrigerator Screw
36	WP489478 Whirlpool Refrigerator Screw
37	Clip, Wire & Tube
38	WPW10334458 Whirlpool Refrigerator Connector
