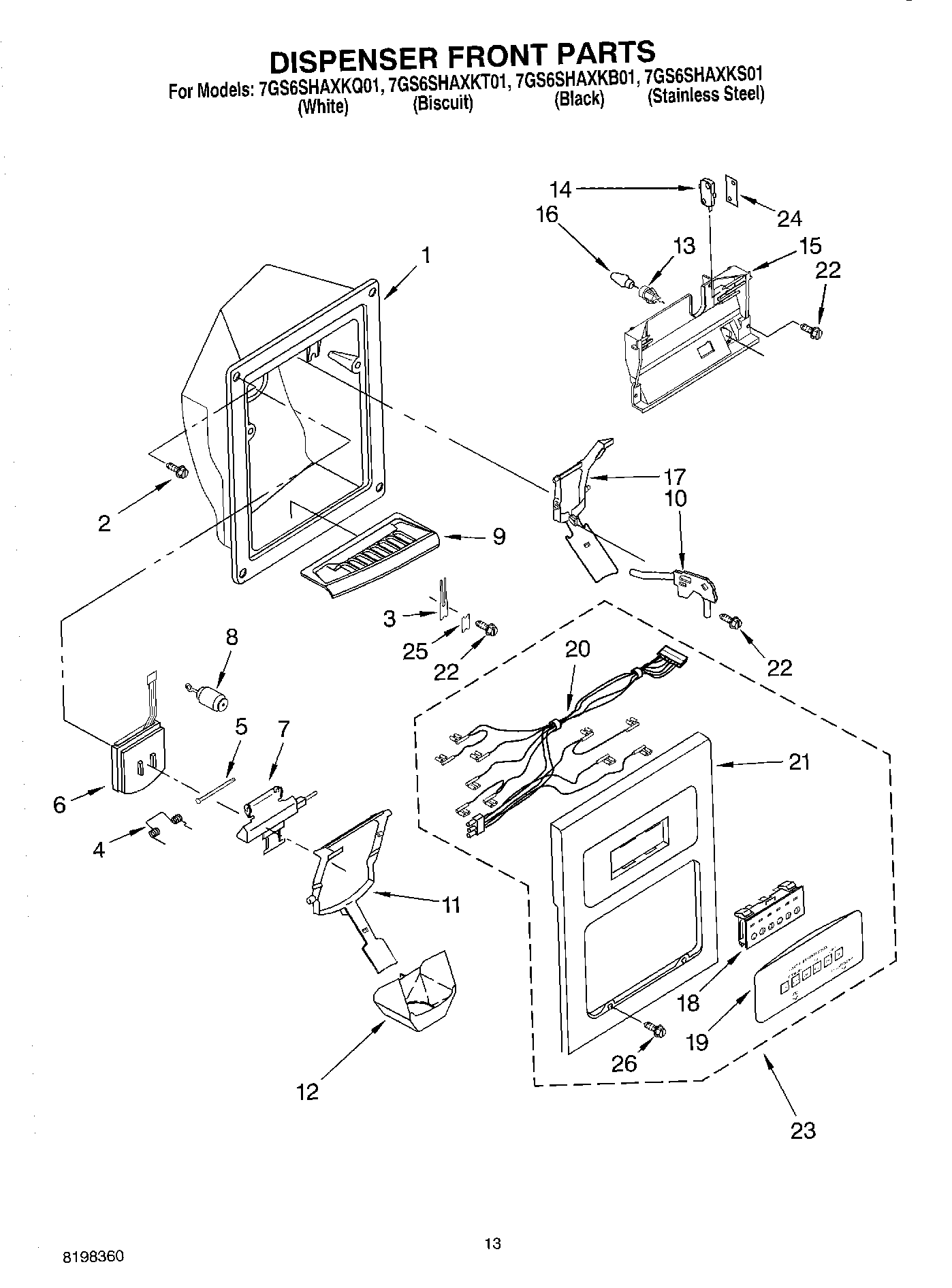

7GS6SHAXKT01 08 – DISPENSER FRONT

7GS6SHAXKT01 08 – DISPENSER FRONT

Written by

in

7GS6SHAXKT01 08 – DISPENSER FRONT

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
2WP3196175 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2207007B Whirlpool Refrigerator Grille
9Grille, Overflow (White)
9Grille, Overflow (Biscuit)
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Black)
11WP2203562W Whirlpool Refrigerator Dispenser Arm
11Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
132180200 Whirlpool Refrigerator Socket
14WP2162361 Whirlpool Switch
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP22002263 Whirlpool Dryer 10W Light Bulb
172203561W Whirlpool Refrigerator Dispenser Arm
17Lever, Water Dispenser (Biscuit (Almond Shadow Pad))
17Lever, Water Dispenser ((Storm rey Pad))
17Lever, Water Dispenser (B)
18Switch Assembly (Not Available, Order No.23)
19Overlay, Front Cover (Not Available, Order No.23)
202187406 Whirlpool Refrigerator Wire Harness
21Front Cover, Housing (Not Available, Order No.23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
24Spacer, Switch (2)
25WP2195051 Whirlpool Refrigerator Clip
26WP3400065 Whirlpool Refrigerator Screw
