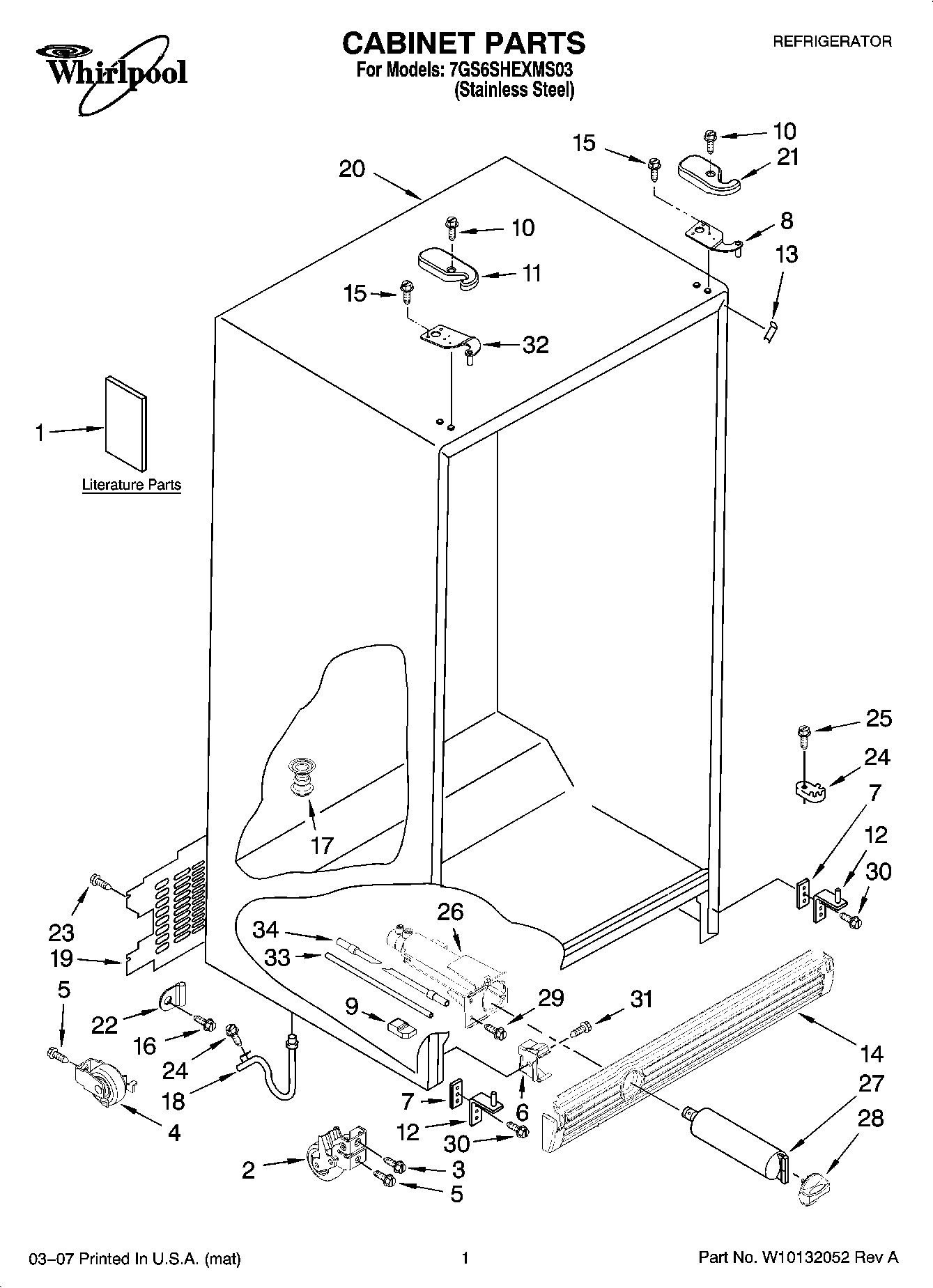

7GS6SHEXMS03 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2181911 Whirlpool Refrigerator Shim
8	WP2203771 Whirlpool Refrigerator Door Hinge
9	Block, Housing Support
10	WP8281227 Whirlpool Screw
11	WP2203407B Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Black)
14	W10803964 Whirlpool Grille Assembly
16	W11693756 Whirlpool Screw Assembly
17	W11566763 Whirlpool Fitting
18	WP1108438 Whirlpool Refrigerator Extension
19	Cover, Unit
20	Cabinet, (Not A Serviceable Part)
21	WP2203408B Whirlpool Refrigerator Cover
22	489348 Whirlpool Refrigerator Tube Clamp
24	WPW10329686 Whirlpool Door Cam Black
25	WP489483 Whirlpool Screw
26	WP2186443 Whirlpool Water Filter Housing
27	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
28	WP2186494B Whirlpool Refrigerator Filter Cap
29	WP489500 Whirlpool Refrigerator Screw
30	WP489497 Whirlpool Screw
31	WP489128 Whirlpool Refrigerator Screw
32	WP2203770 Whirlpool Refrigerator Door Hinge
33	WPW10350006 Whirlpool Refrigerator Water Tube
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
