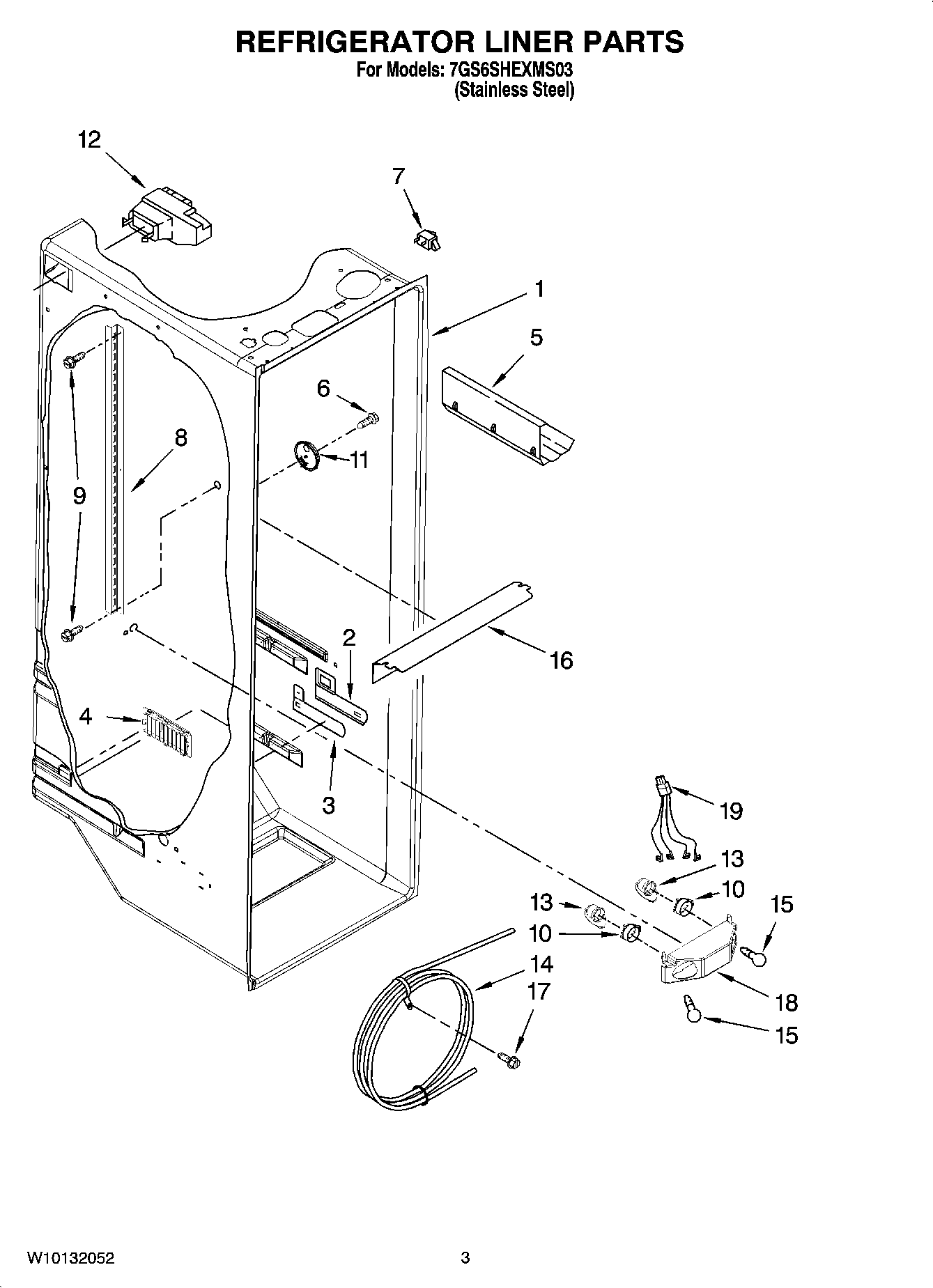

7GS6SHEXMS03 02 – REFRIGERATOR LINER PARTS

7GS6SHEXMS03 02 – REFRIGERATOR LINER PARTS

Written by

in

7GS6SHEXMS03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W10777924 Whirlpool Refrigerator Wine Rack
6W10759522 Whirlpool Screw
7W11384469 Whirlpool Door Switch
8Shelf Ladder
9WP489478 Whirlpool Refrigerator Screw
10WP2175210 Whirlpool Refrigerator Shroud
11Door Control Asm
12WPW10151374 Whirlpool Refrigerator Diffuser
134387478 Whirlpool Refrigerator Light Socket
14WP2256126 Whirlpool Refrigerator Reservoir
15RANGE ONLY 40W 120V APPL BULB
16Light Lens
17Screw (2)
18Bracket, Dual Crisper Light
192311637 Whirlpool Refrigerator Wire Harness
