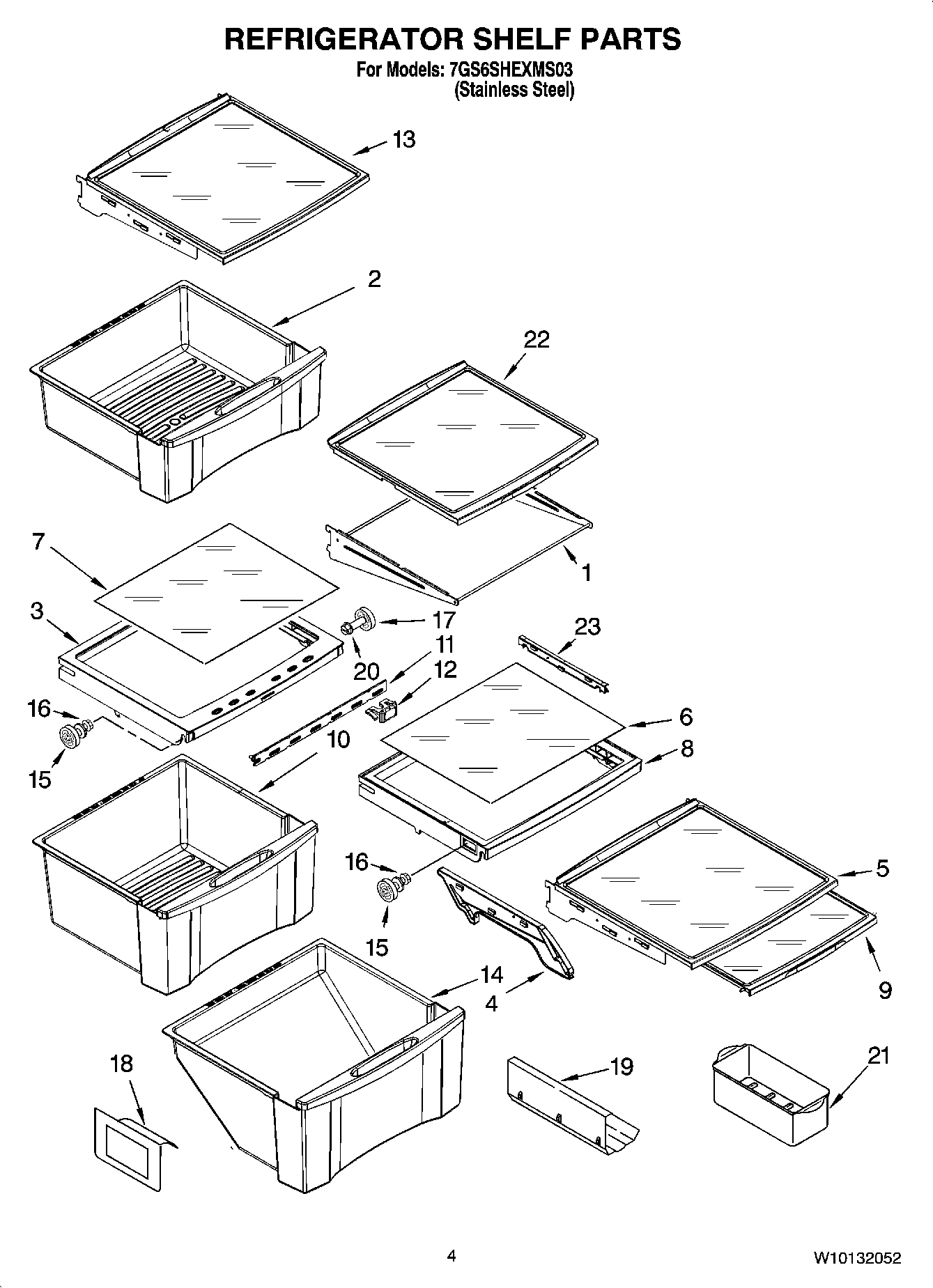

7GS6SHEXMS03 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly (2)
2	Snack Bin Asm
3	Cover, Crisper
4	Track, Shelf (Left Side)
4	WP2223427 Whirlpool Refrigerator Track
5	Shelf Assembly, Drop Down (Includes 7 & 20)
6	Glass, Meat Cover
7	WP2223591 Whirlpool Refrigerator Glass Shelf
8	WP2223242 Whirlpool Refrigerator Cover
9	Air Seal, Thermistor
9	Shelf, Drop Down
10	WPW10233488 Whirlpool Refrigerator Crisper Pan
11	2223308 Whirlpool Refrigerator Slide
12	Knob, Humidity Control
13	WP2223288 Whirlpool Refrigerator Cantilever Shelf
14	Meat Pan Assembly
15	W11223328 Whirlpool Refrigerator Shelf Stud
16	WP3-24004-109 Whirlpool Refrigerator Screw
17	WP2196483 Whirlpool Refrigerator Shelf Stud
18	2179350 Whirlpool Refrigerator Deflector
19	W10777924 Whirlpool Refrigerator Wine Rack
20	WP3400806 Whirlpool Screw
21	W10136387A Whirlpool Refrigerator Egg Container
22	Shelf, Slide Out (2)
23	WP2223320 Whirlpool Slide Track Pan
