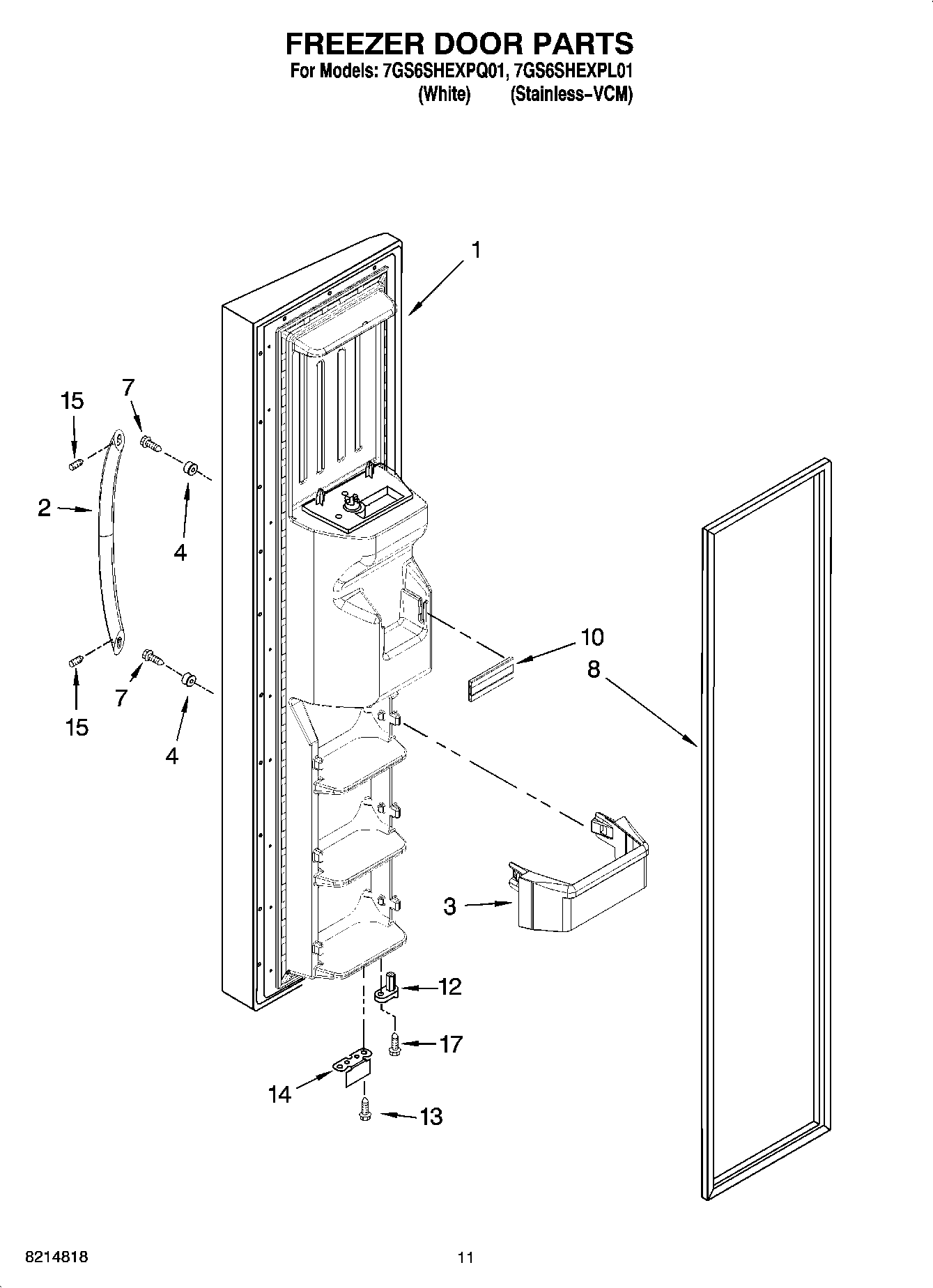

7GS6SHEXPL01 07 – FREEZER DOOR PARTS

7GS6SHEXPL01 07 – FREEZER DOOR PARTS

Written by

in

7GS6SHEXPL01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless-VCM)
2Handle (Includes 13) (Stainless)
2Handle (White)
3WP2171157 Whirlpool Shelf Trim
4WPW10170540 Whirlpool Screw
7WP488163 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
10WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
14Bracket, Door Stop
15SCREW
17WP3400012 Whirlpool Refrigerator Screw
