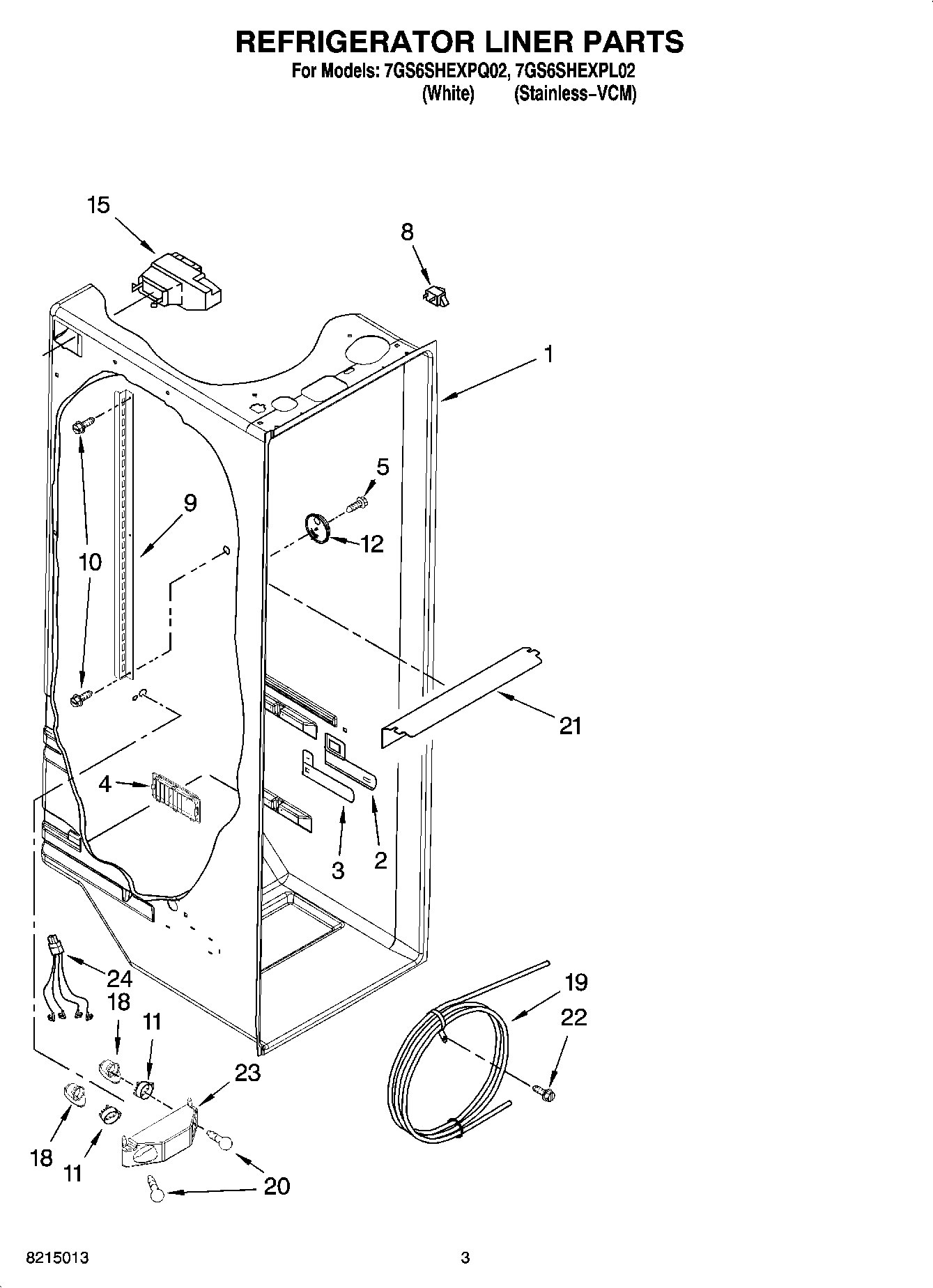

7GS6SHEXPL02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W10759522 Whirlpool Screw
8	W11384469 Whirlpool Door Switch
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	WP2175210 Whirlpool Refrigerator Shroud
12	Door Control Asm
15	WPW10151374 Whirlpool Refrigerator Diffuser
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
23	Bracket, Dual Crisper Light
24	2311637 Whirlpool Refrigerator Wire Harness
