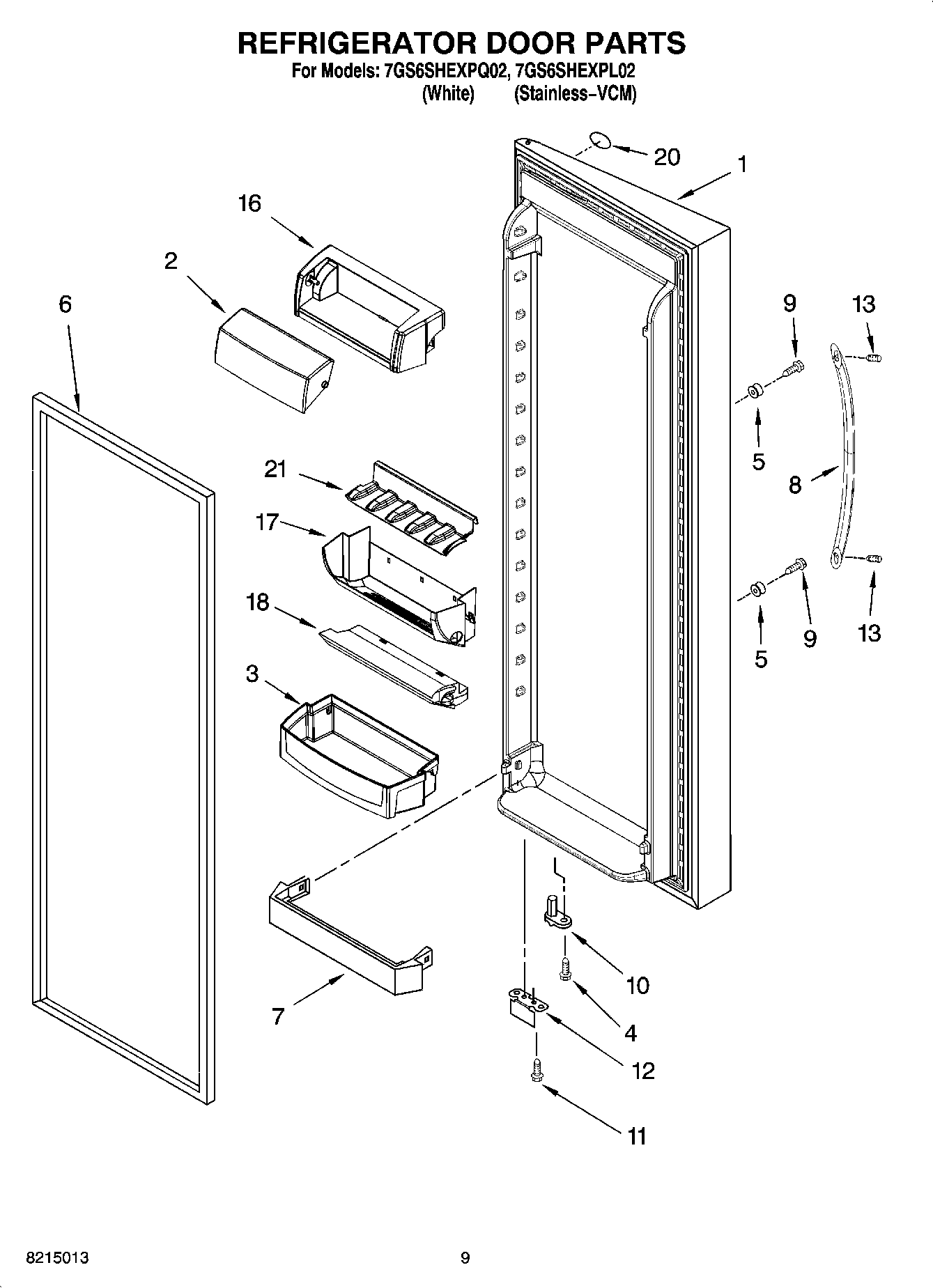

7GS6SHEXPL02 06 – REFRIGERATOR DOOR PARTS

7GS6SHEXPL02 06 – REFRIGERATOR DOOR PARTS

Written by

in

7GS6SHEXPL02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
1Refrigerator Door (Includes Item 6) (White)
2Dairy Door
3Door Bin (3)
4WP3400012 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
62159075 Whirlpool Door Gasket Seal
62159083 Whirlpool Gasket Door
7WP2156022 Whirlpool Refrigerator Door Trim
8Handle (White)
8Handle (Stainless)
9WP488163 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop
12Bracket, Door Stop
13SCREW
16Door Compartment
17Frame, Can Rack
18Air Diffuser Asm
20Nameplate
21Floor, Can Rack
