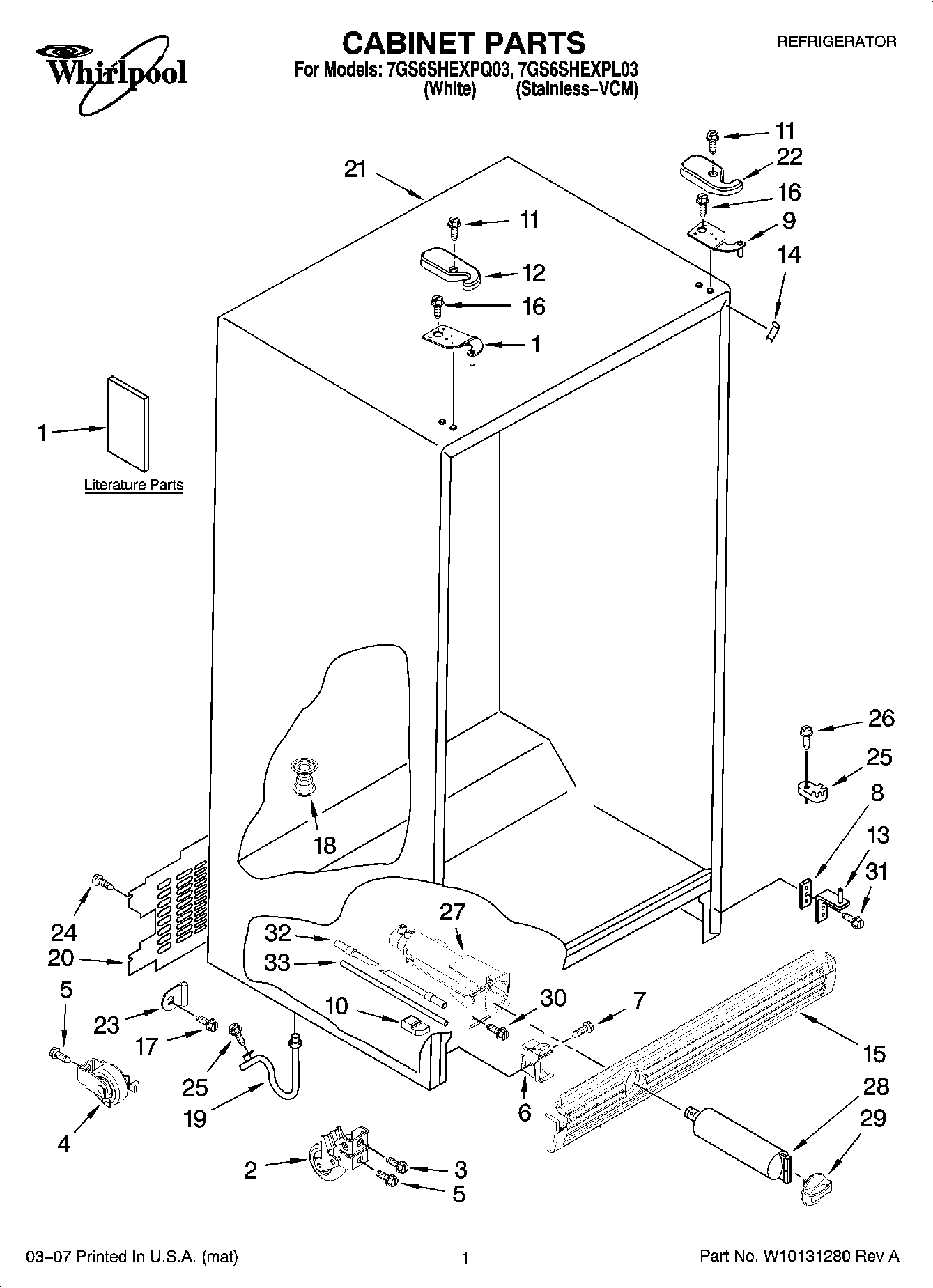

7GS6SHEXPL03 01 – CABINET PARTS
Written by
in
7GS6SHEXPL03 01 – CABINET PARTS
Products
Position
Product
1
INSTRUCTION SHEET (DOOR REMOVAL)
1
WP2203770 Whirlpool Refrigerator Door Hinge
1
Energy Guide
1
Modular Icemaker Service Sheet
1
Use & Care Guide
1
Service & Wiring Sheet
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489128 Whirlpool Refrigerator Screw
8
WP2181911 Whirlpool Refrigerator Shim
9
WP2203771 Whirlpool Refrigerator Door Hinge
10
Block, Housing Support
11
WP8281227 Whirlpool Screw
12
WP2203407B Whirlpool Refrigerator Cover
12
WP2203407W Whirlpool Refrigerator Cover
13
8201707 Whirlpool Door Hinge
14
Filler, Wrapper (White)
14
Filler, Wrapper (Black)
15
W10803964 Whirlpool Grille Assembly
17
W11693756 Whirlpool Screw Assembly
18
W11566763 Whirlpool Fitting
19
Extension Tube
20
Cover, Unit
21
Cabinet, (Not A Serviceable Part)
22
WP2203408B Whirlpool Refrigerator Cover
22
WP2203408W Whirlpool Refrigerator Cover
23
489348 Whirlpool Refrigerator Tube Clamp
25
WPW10329686 Whirlpool Door Cam Black
26
WP489483 Whirlpool Screw
27
WP2186443 Whirlpool Water Filter Housing
28
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29
WP2186494B Whirlpool Refrigerator Filter Cap
29
WP2186494W Whirlpool Water Filter Cap
30
WP489500 Whirlpool Refrigerator Screw
31
WP489497 Whirlpool Screw
32
WPW10350006 Whirlpool Refrigerator Water Tube
33
8201597 Whirlpool Inlet Water Fill Tube Kit Filter
←
