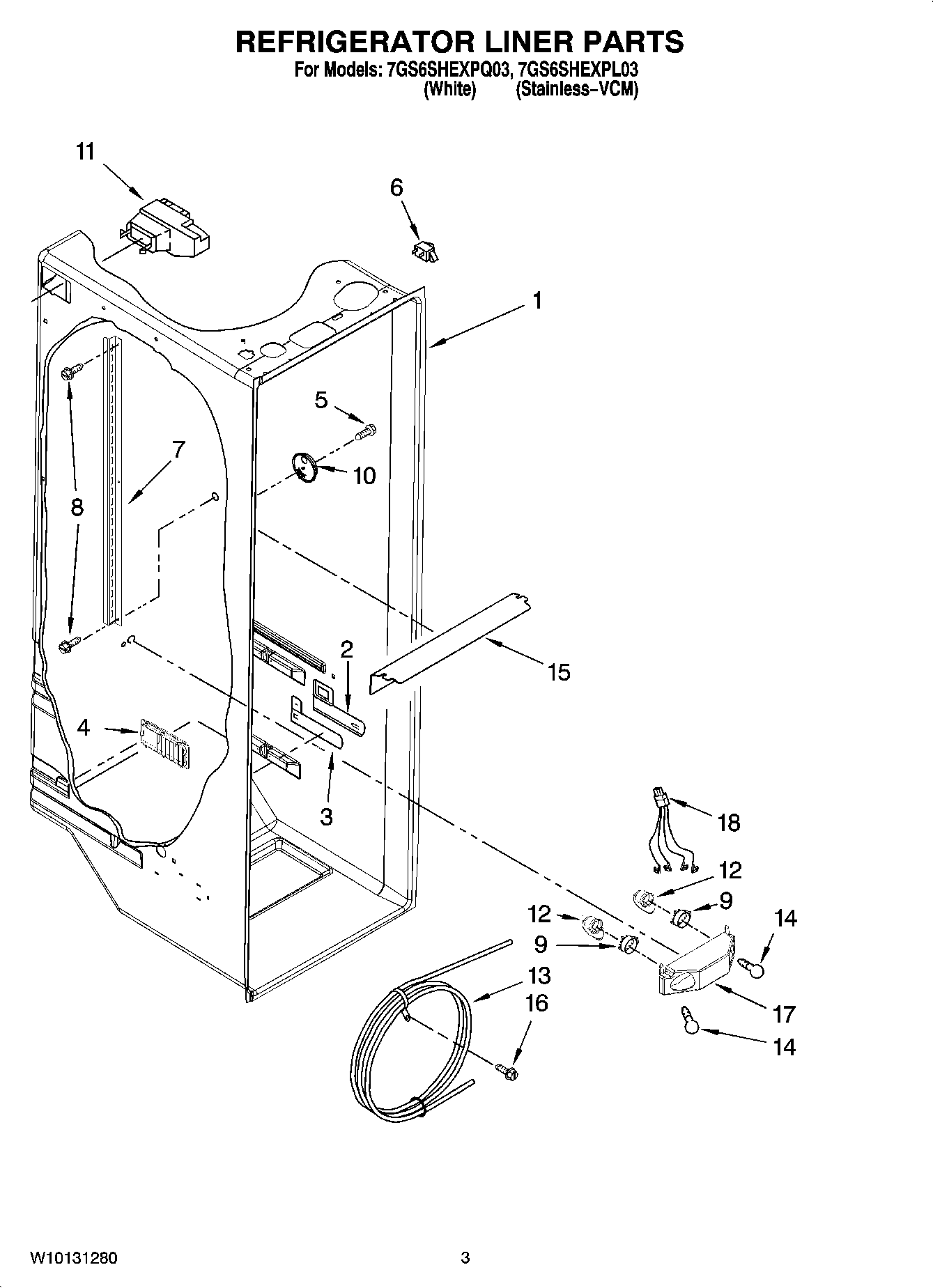

7GS6SHEXPL03 02 – REFRIGERATOR LINER PARTS

7GS6SHEXPL03 02 – REFRIGERATOR LINER PARTS

Written by

in

7GS6SHEXPL03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W10759522 Whirlpool Screw
6W11384469 Whirlpool Door Switch
7Shelf Ladder
8WP489478 Whirlpool Refrigerator Screw
9WP2175210 Whirlpool Refrigerator Shroud
10Door Control Asm
11WPW10151374 Whirlpool Refrigerator Diffuser
124387478 Whirlpool Refrigerator Light Socket
13WP2256126 Whirlpool Refrigerator Reservoir
14RANGE ONLY 40W 120V APPL BULB
15Light Lens
16Screw (2)
17Bracket, Dual Crisper Light
182311637 Whirlpool Refrigerator Wire Harness
