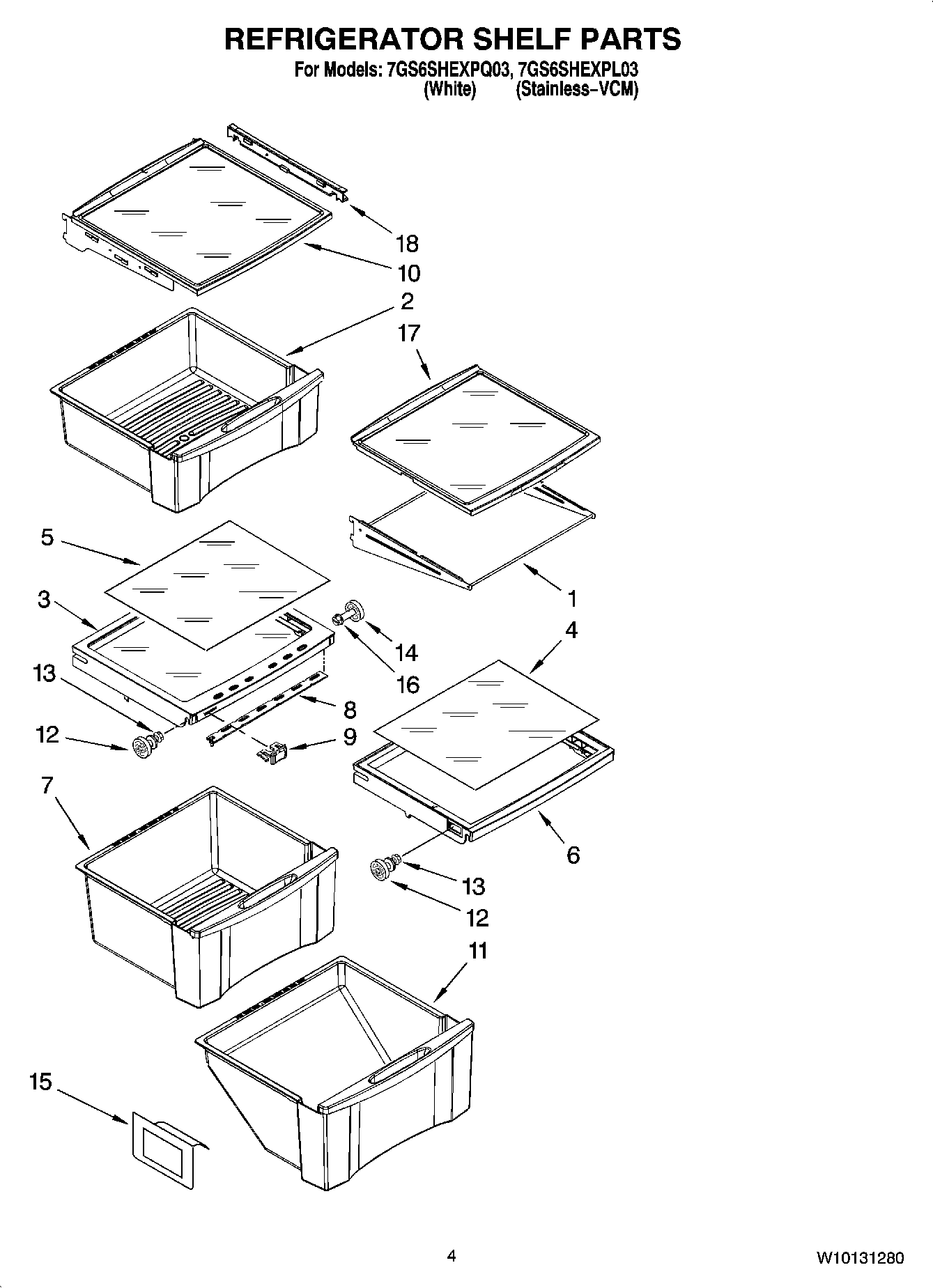

7GS6SHEXPL03 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2Snack Bin Asm
3Cover, Crisper
4Glass, Meat Cover
5WP2223591 Whirlpool Refrigerator Glass Shelf
6WP2223242 Whirlpool Refrigerator Cover
7WPW10233488 Whirlpool Refrigerator Crisper Pan
82223308 Whirlpool Refrigerator Slide
9Knob, Humidity Control
10WP2223288 Whirlpool Refrigerator Cantilever Shelf
11Meat Pan Assembly
12W11223328 Whirlpool Refrigerator Shelf Stud
13WP3-24004-109 Whirlpool Refrigerator Screw
14WP2196483 Whirlpool Refrigerator Shelf Stud
152179350 Whirlpool Refrigerator Deflector
16WP3400806 Whirlpool Screw
17Shelf, Slide Out (2)
18WP2223320 Whirlpool Slide Track Pan
