7GS6SHEXPL03 06 – REFRIGERATOR DOOR PARTS
Written by
in

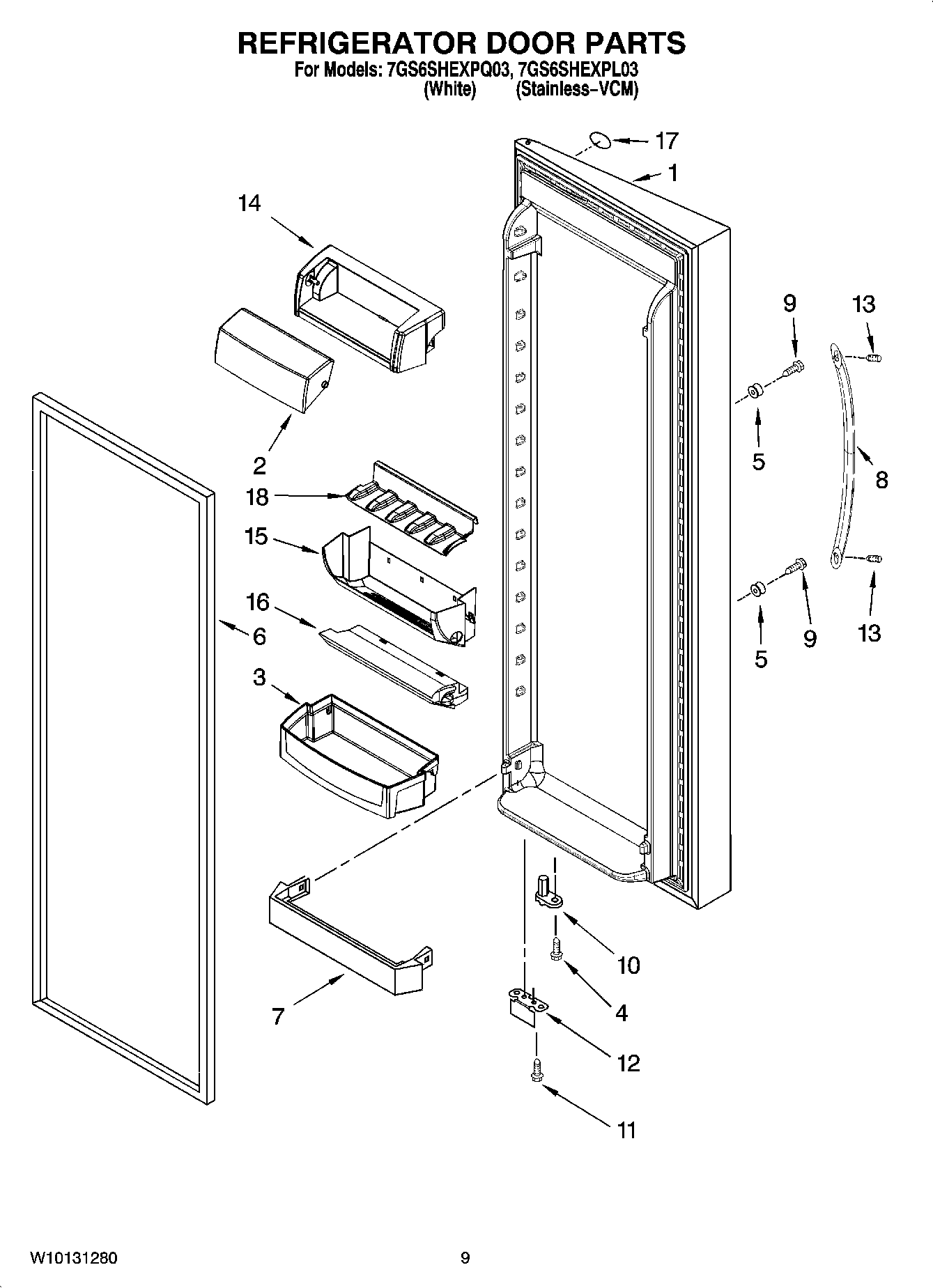

7GS6SHEXPL03 06 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
Refrigerator Door (Includes Item 6) (Stainless-VCM)
1
Refrigerator Door (Includes Item 6) (White)
2
Dairy Door
3
Door Bin (3)
4
WP3400012 Whirlpool Refrigerator Screw
5
WPW10170540 Whirlpool Screw
6
2159083 Whirlpool Gasket Door
6
2159075 Whirlpool Door Gasket Seal
7
WP2156022 Whirlpool Refrigerator Door Trim
8
Handle (Stainless)
8
Handle (White)
9
WP488163 Whirlpool Refrigerator Screw
10
WP2182179 Whirlpool Cam Closer
11
WP489483 Whirlpool Screw
12
Bracket, Door Stop
12
Bracket, Door Stop
13
SCREW
14
Door Compartment
15
Frame, Can Rack
16
Air Diffuser Asm
17
Nameplate
18
Floor, Can Rack
←
