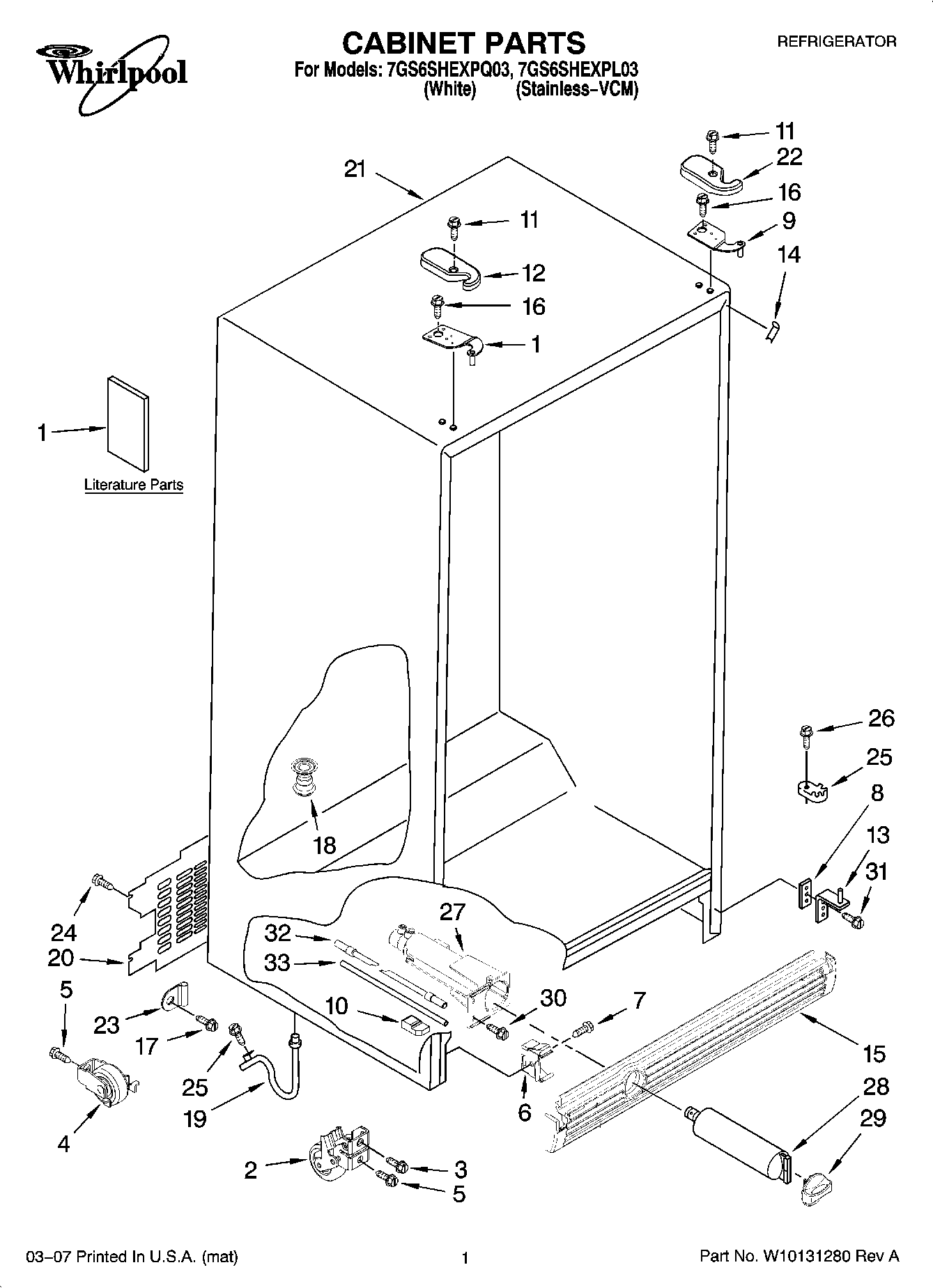

7GS6SHEXPQ03 01 – CABINET PARTS

Products

PositionProduct
1INSTRUCTION SHEET (DOOR REMOVAL)
1WP2203770 Whirlpool Refrigerator Door Hinge
1Energy Guide
1Modular Icemaker Service Sheet
1Use & Care Guide
1Service & Wiring Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489128 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10Block, Housing Support
11WP8281227 Whirlpool Screw
12WP2203407B Whirlpool Refrigerator Cover
12WP2203407W Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (White)
14Filler, Wrapper (Black)
15W10803964 Whirlpool Grille Assembly
17W11693756 Whirlpool Screw Assembly
18W11566763 Whirlpool Fitting
19Extension Tube
20Cover, Unit
21Cabinet, (Not A Serviceable Part)
22WP2203408B Whirlpool Refrigerator Cover
22WP2203408W Whirlpool Refrigerator Cover
23489348 Whirlpool Refrigerator Tube Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27WP2186443 Whirlpool Water Filter Housing
28EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29WP2186494B Whirlpool Refrigerator Filter Cap
29WP2186494W Whirlpool Water Filter Cap
30WP489500 Whirlpool Refrigerator Screw
31WP489497 Whirlpool Screw
32WPW10350006 Whirlpool Refrigerator Water Tube
338201597 Whirlpool Inlet Water Fill Tube Kit Filter
