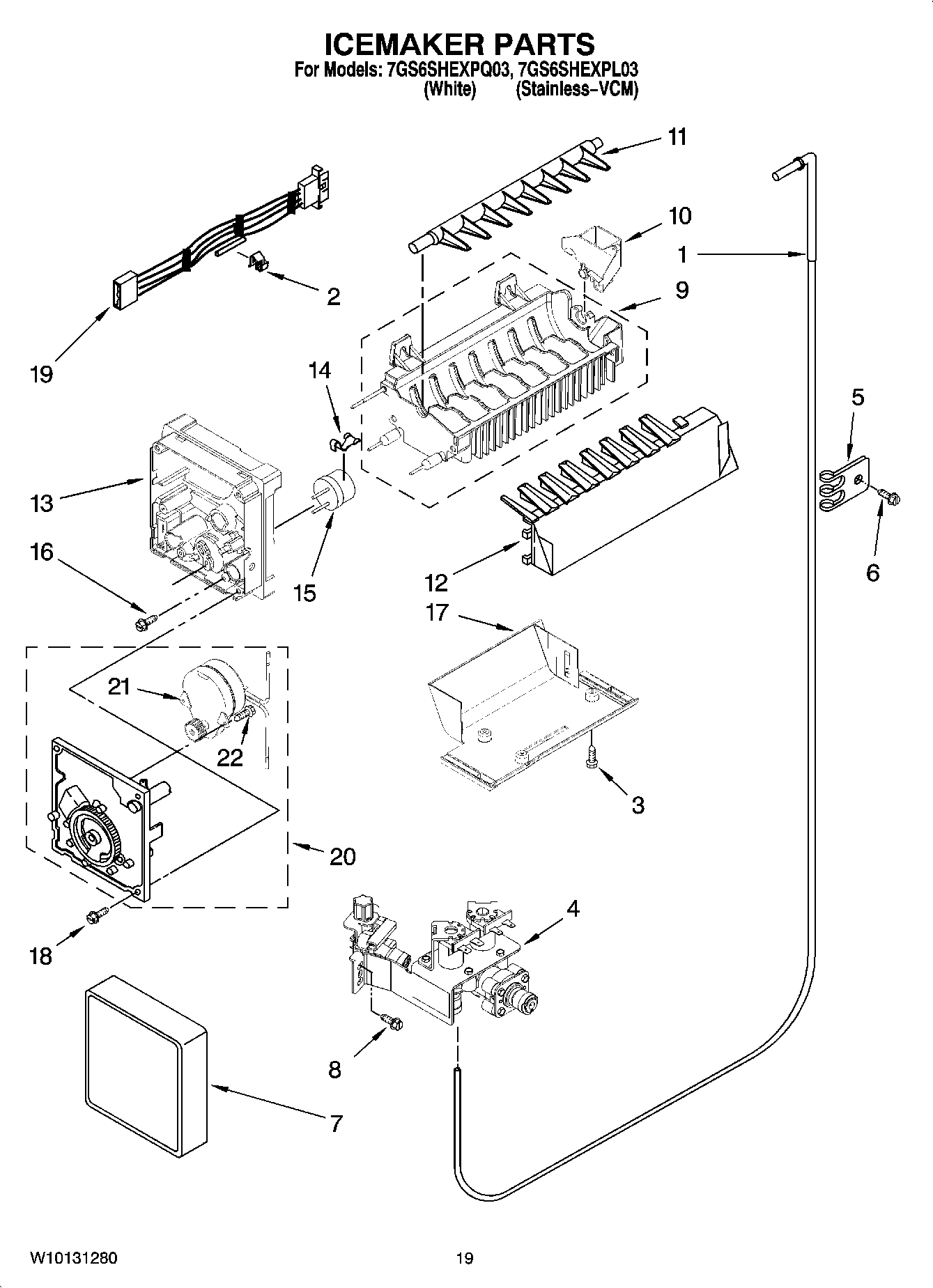

7GS6SHEXPQ03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

7GS6SHEXPQ03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

7GS6SHEXPQ03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
212643 Whirlpool Refrigerator Permagum Sealer
WP542638 Whirlpool Refrigerator Grease
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
8171357 Whirlpool Spray Nozzle
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
PAINT, BULK (1 QT. GRAPHITE)
WPL 799833
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI17579A3
WPL ARI17578A3
WPL ARI17577A2
Important: The spray paint is not to be used where the paint may make contact with the door gaske
CLEANER, (STAINLESS STEEL)
4210463RW Whirlpool Refrigerator Coil Brush
1WP2256096 Whirlpool Refrigerator Fitting
2WP628379 Whirlpool Refrigerator Clip
3WP489478 Whirlpool Refrigerator Screw
4W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
5WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WP628356 Whirlpool Refrigerator Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12W10297244 Whirlpool Refrigerator Arm Strip
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17BRACKET, ICEMAKER MOUNTING
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
