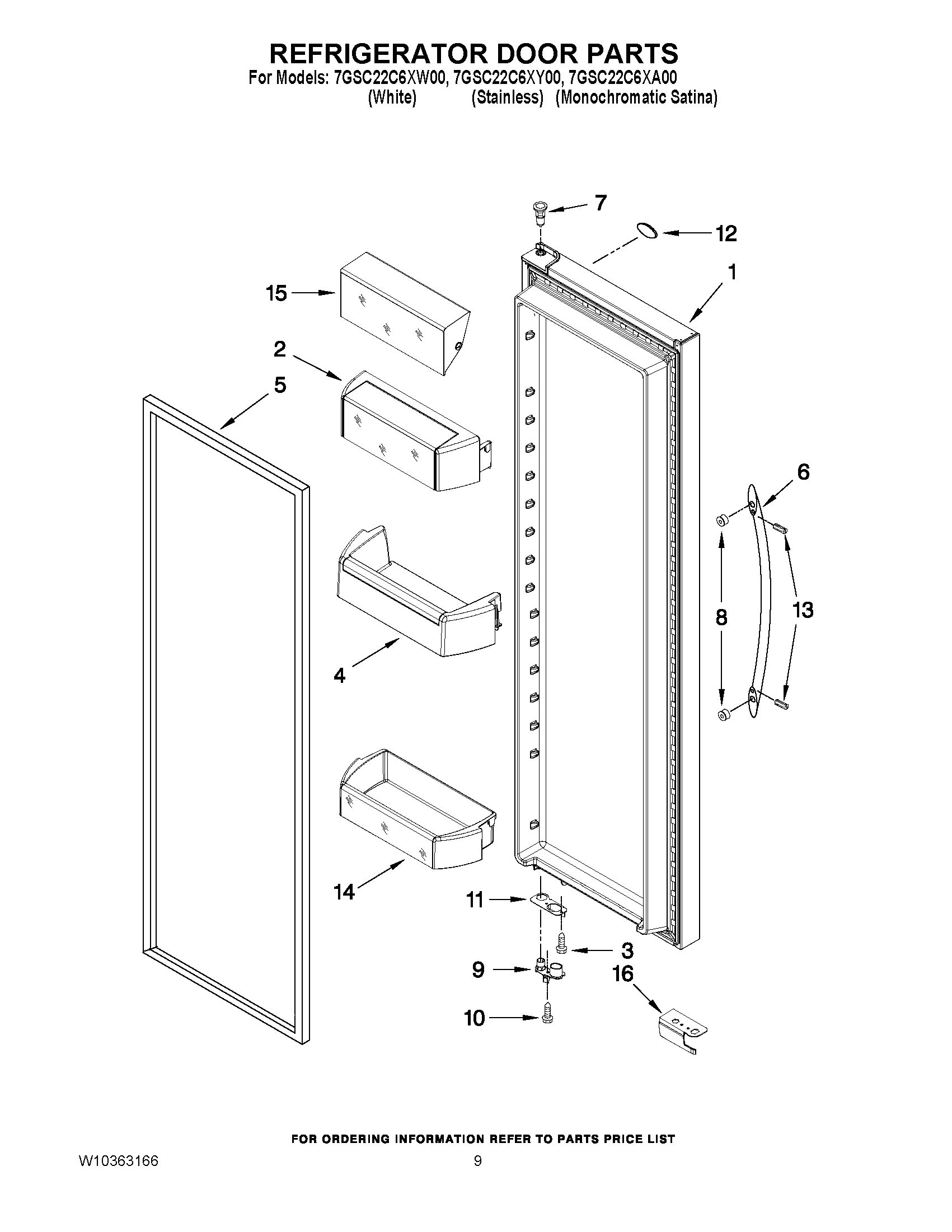

7GSC22C6XA00 06 – REFRIGERATOR DOOR PARTS

7GSC22C6XA00 06 – REFRIGERATOR DOOR PARTS

Written by

in

7GSC22C6XA00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO SATINA)
1LW10330177 Whirlpool Refrigerator DOR-FIP SS
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4DOOR BIN, SHALLOW
5W11624999 Whirlpool Refrigerator FIP Gasket
5W10355588 Whirlpool Refrigerator FIP Gasket
6WPW10670421 Whirlpool Refrigerator Handle
6WPW10268056 Whirlpool Refrigerator Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12Nameplate
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15DOOR, COMPARTMENT
16W11661847 Whirlpool Wire Cover
16W10789144 Whirlpool Refrigerator Wire Cover
