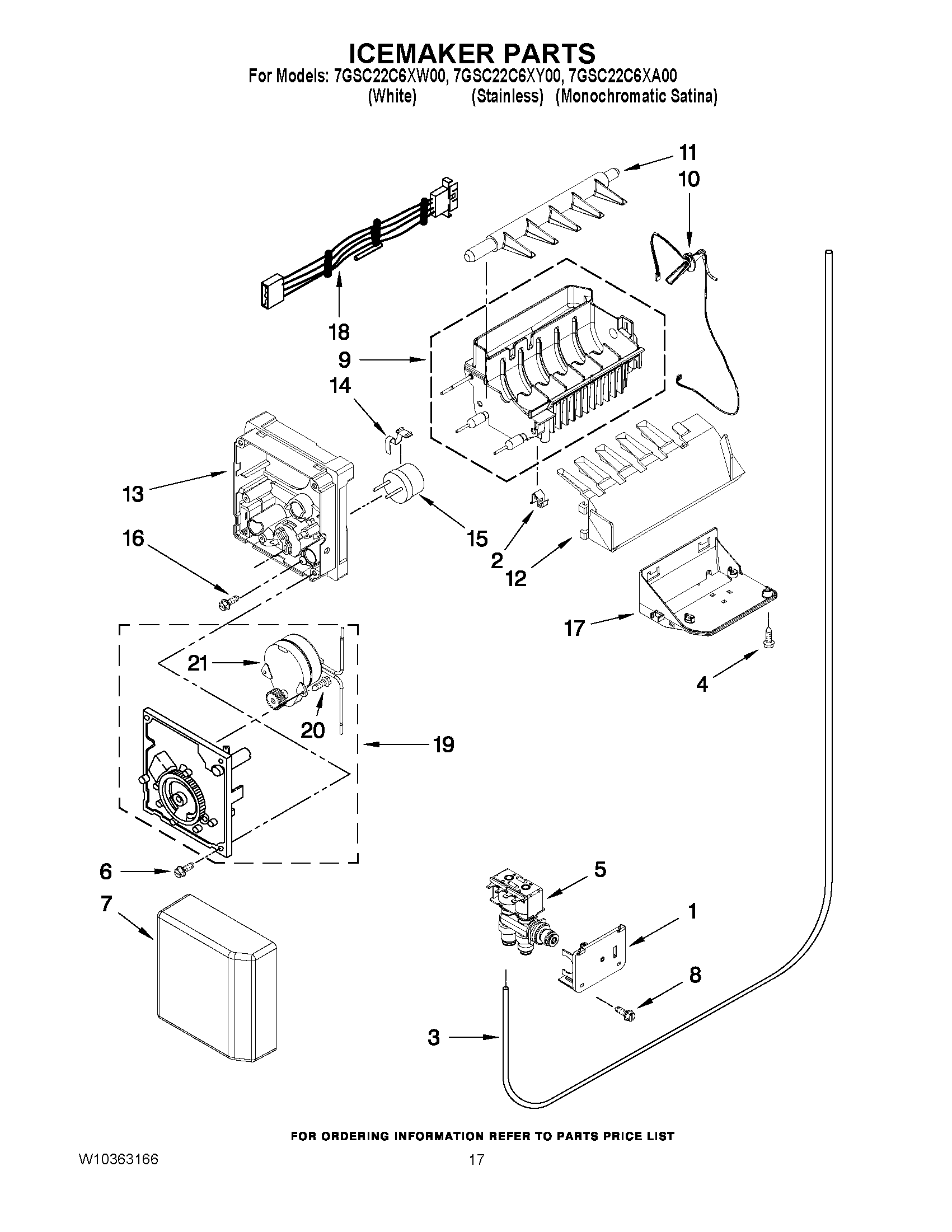

7GSC22C6XA00 10 – ICEMAKER PARTS

Products

Position	Product
1	W10847867 Whirlpool Refrigerator Bracket
2	WP628379 Whirlpool Refrigerator Clip
3	WPW10238092 Whirlpool Refrigerator Water Tube
5	W10279877 Whirlpool Inlet Valve
6	WP489478 Whirlpool Refrigerator Screw
7	COVER
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	MOLD & HEATER ASSEMBLY (ALSO ORDER 542638
10	W10816479 Whirlpool Refrigerator Fitting
11	W10318644 Whirlpool Refrigerator Ejector Arm
12	W10747731 Whirlpool Refrigerator Arm Stripper
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
16	W10001240 Whirlpool Refrigerator Screw
17	W10251080 Whirlpool Refrigerator Bracket
18	W10242384 Whirlpool Refrigerator Wire Harness
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	489136 Whirlpool Refrigerator Screw
21	CABINET (NOT A SERVICEABLE PART)
100	WPW10337591 Whirlpool Ice Maker
