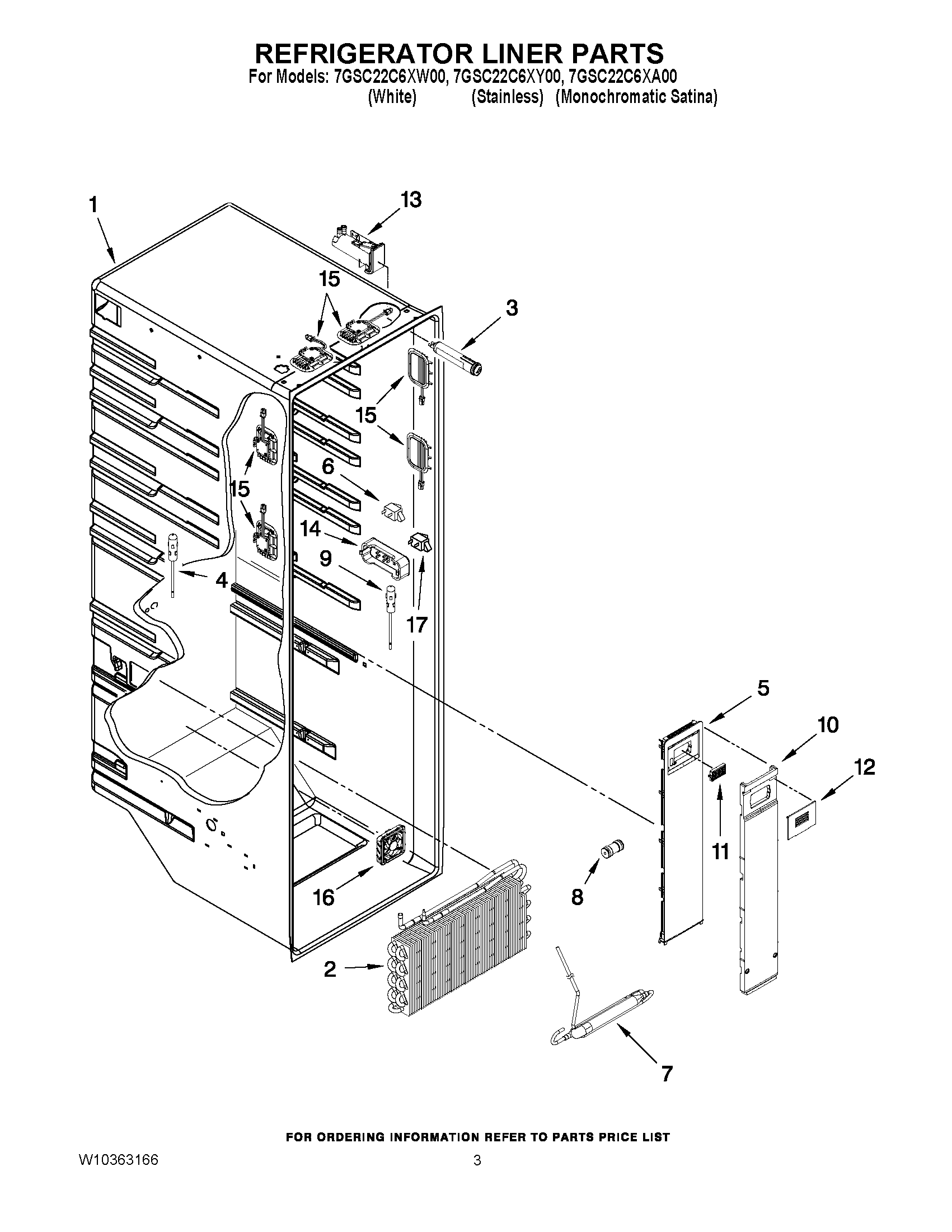

7GSC22C6XW00 02 – REFRIGERATOR LINER PARTS

7GSC22C6XW00 02 – REFRIGERATOR LINER PARTS

Written by

in

7GSC22C6XW00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10643261 Whirlpool Refrigerator Evaporator
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5COVER, AIR TOWER
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10TOWER, AIR
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12AIR FILTER COVER
13WPW10238123 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16WPW10439624 Whirlpool Refrigerator Evaporator Motor
17W11123943 Whirlpool Refrigerator Switch
