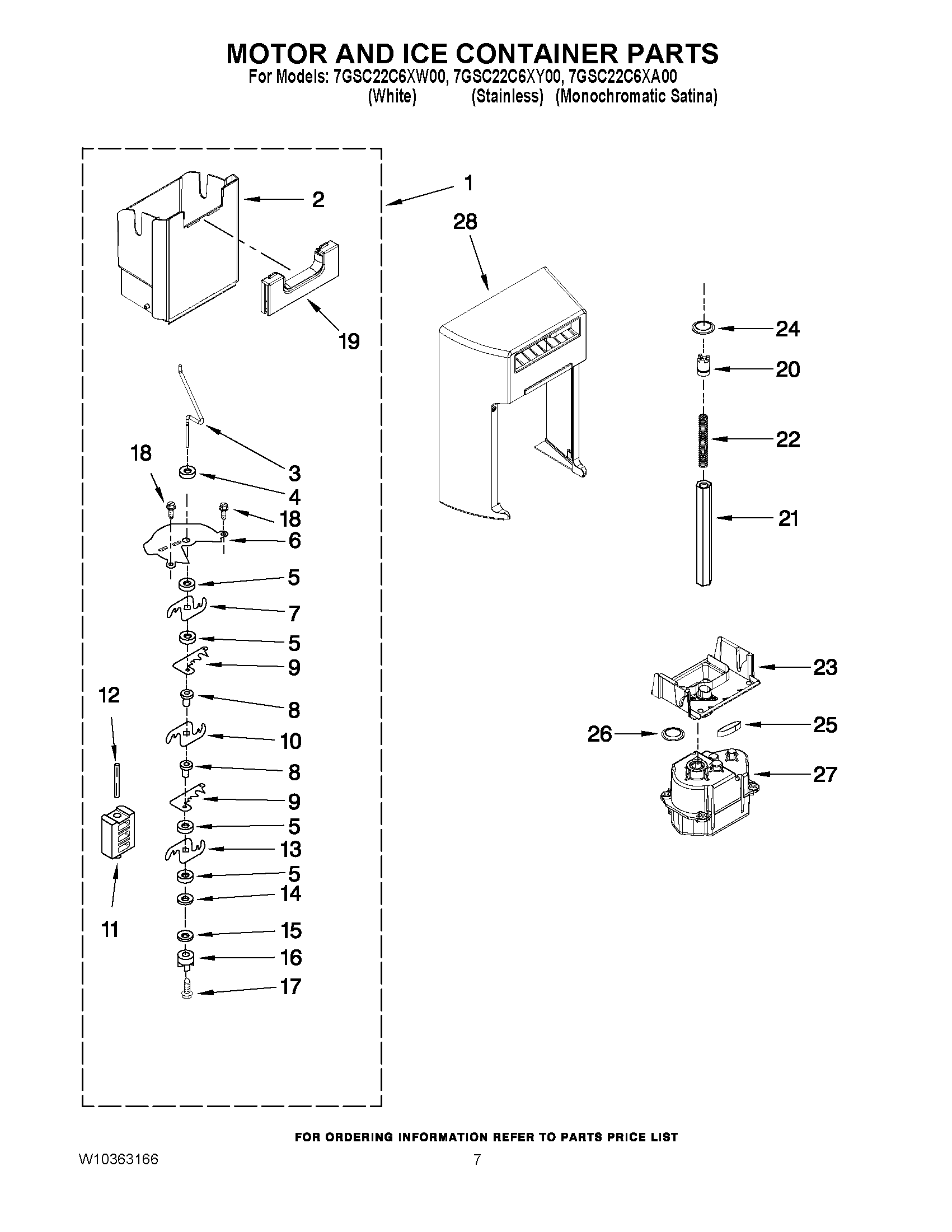

7GSC22C6XW00 05 – MOTOR AND ICE CONTAINER PARTS

7GSC22C6XW00 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

7GSC22C6XW00 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
2ICE BIN
3AUGER
4Washer
5W11032812 Whirlpool Refrigerator Spacer
6COVER, CRUSHER
7W10278731 Whirlpool Refrigerator Blade
8W11032808 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
11W10178238 Whirlpool Blade Block
12W10166878 Whirlpool Roll Pin
13W10278733 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19W11652042 Whirlpool Bin Latch
20WP2220458 Whirlpool Drive Cam
21WPW10258544 Whirlpool Refrigerator Shaft
22W10852956 Whirlpool Refrigerator Spring
23CHUTE
24WP2198628 Whirlpool Door Seal
25WPW10291905 Whirlpool Seal
26WP2212370 Whirlpool Washer
27DISPENSER, MOTOR
28WPW10287594 Whirlpool Refrigerator Front Cover
100W11109888 Whirlpool Refrigerator Ice Container
