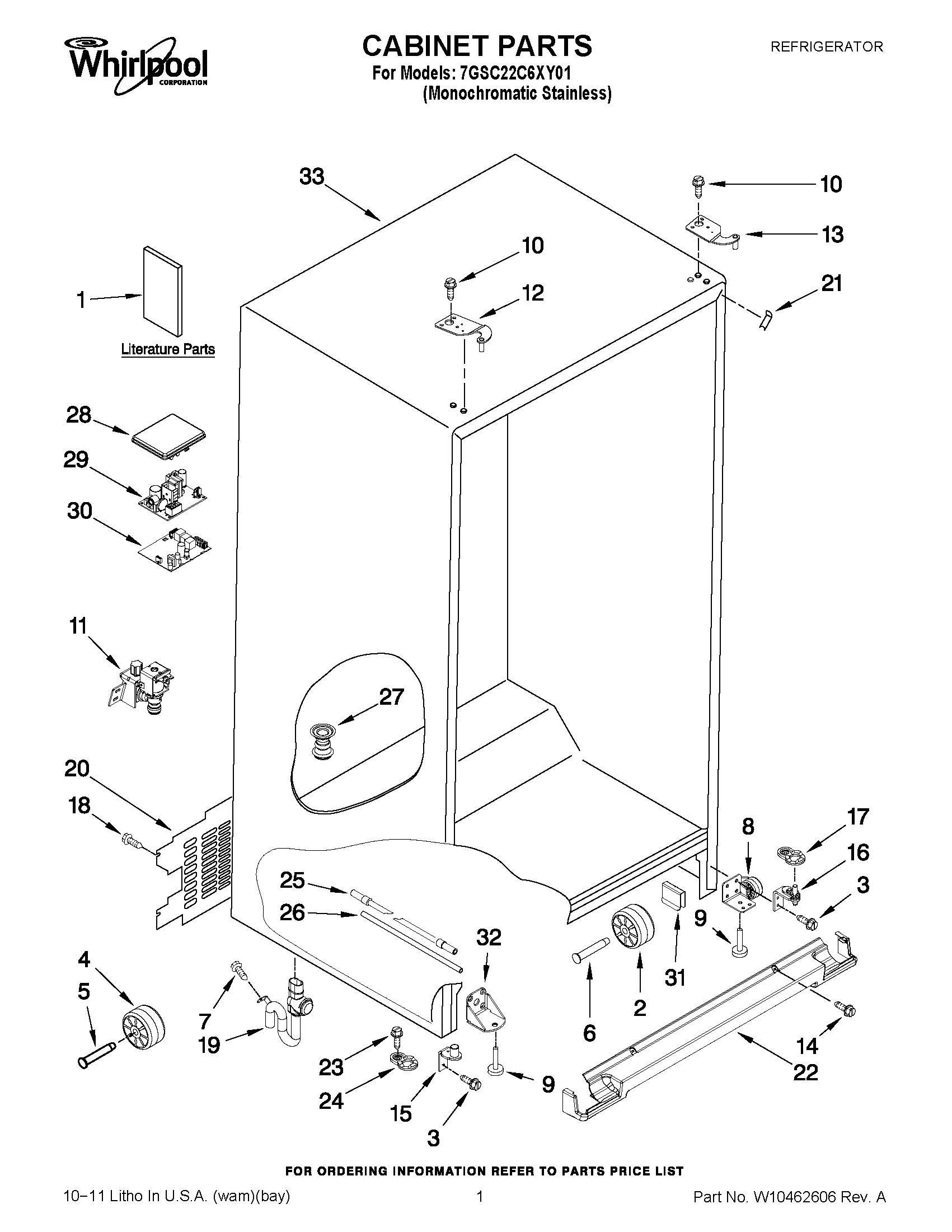

7GSC22C6XY01 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	WP489464 Whirlpool Refrigerator Screw
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	WPW10279876 Whirlpool Inlet Valve
12	W11590581 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
18	SCREW
19	W11519143 Whirlpool Refrigerator Extension
20	COVER, UNIT
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
25	WPW10279882 Whirlpool Water Line
26	WPW10279885 Whirlpool Refrigerator Water Tube
27	W10247979 Whirlpool Refrigerator Fitting
28	LID, HV BOX
29	WPW10226427 Whirlpool Refrigerator Electronic Control Board
30	WPW10419172-includeCORE Whirlpool WPW10419172 Refrigerator Electronic Control Board + Core
31	W11545866 Whirlpool Refrigerator Clip
33	CABINET (NOT A SERVICEABLE PART)
