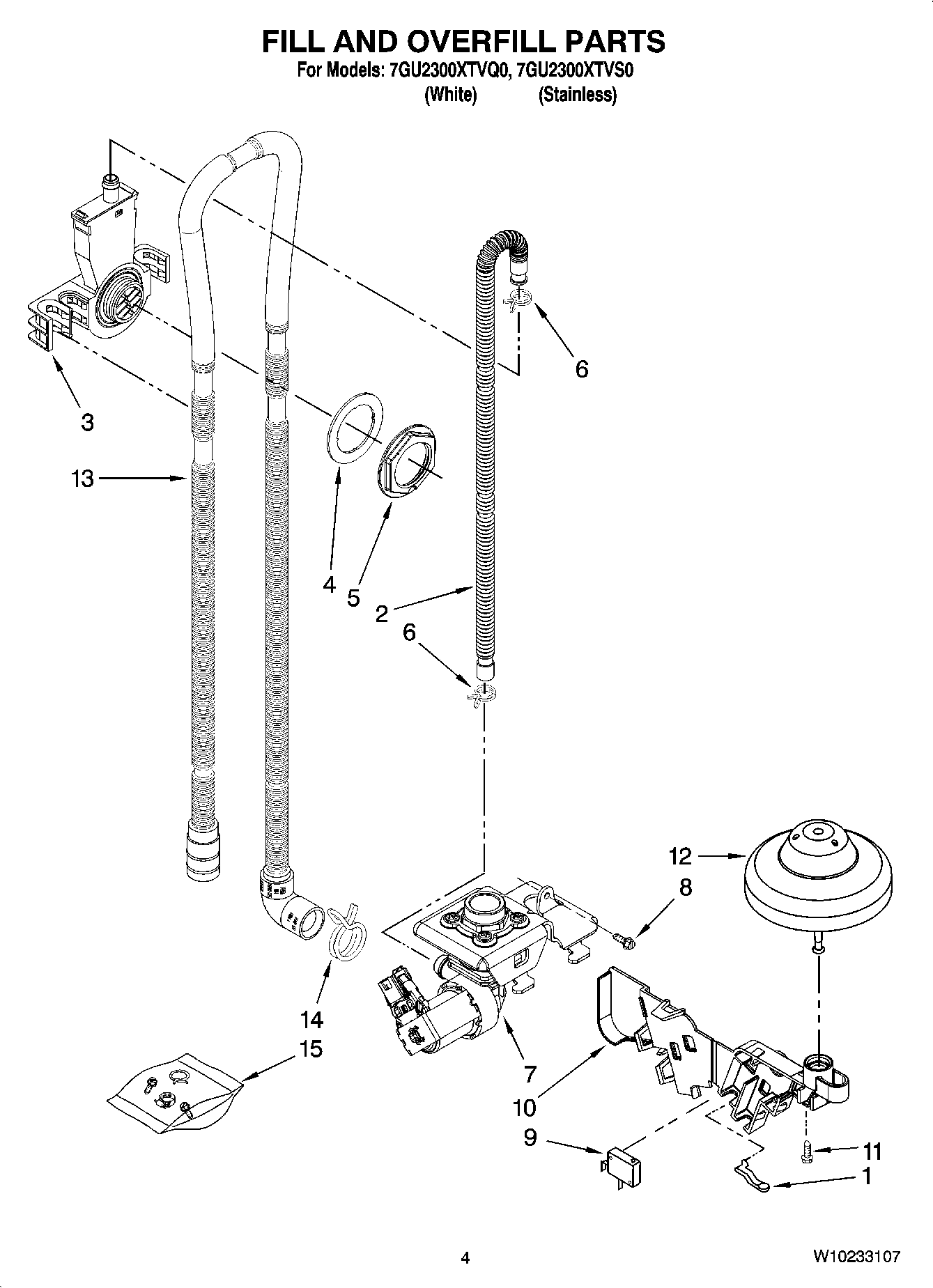

7GU2300XTVQ0 04 – FILL AND OVERFILL PARTS

7GU2300XTVQ0 04 – FILL AND OVERFILL PARTS

Written by

in

7GU2300XTVQ0 04 – FILL AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP8268909 Whirlpool Dishwasher Switch
10WPW10175383 Whirlpool Dishwasher Standpipe
11WP304231 Whirlpool Dishwasher Screw
12WP8268895 Whirlpool Dishwasher Float Assembly
13WPW10545278 Whirlpool Drain Hose
14WP356138 Whirlpool Hose Clamp
15WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
