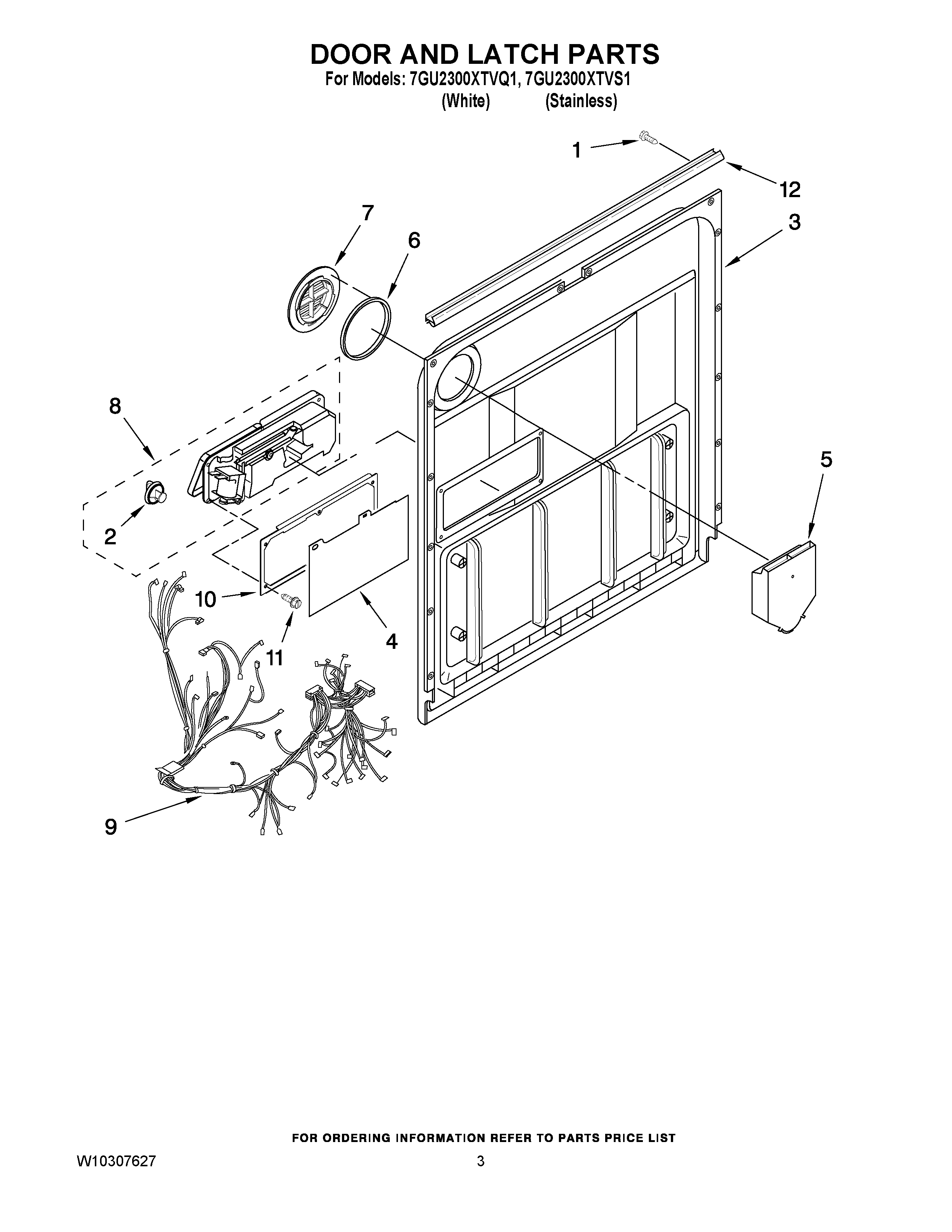

7GU2300XTVQ1 03 – DOOR AND LATCH PARTS

7GU2300XTVQ1 03 – DOOR AND LATCH PARTS

Written by

in

7GU2300XTVQ1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3Inner Door Mastic Assembly (Also Order Item 6)
4WP8531865 Whirlpool Dishwasher Door Shield
5WP8558980 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 6)
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9Wiring Harness Main
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WPW10177098 Whirlpool Dishwasher Screw
12WP8269296 Whirlpool Dishwasher Seal
