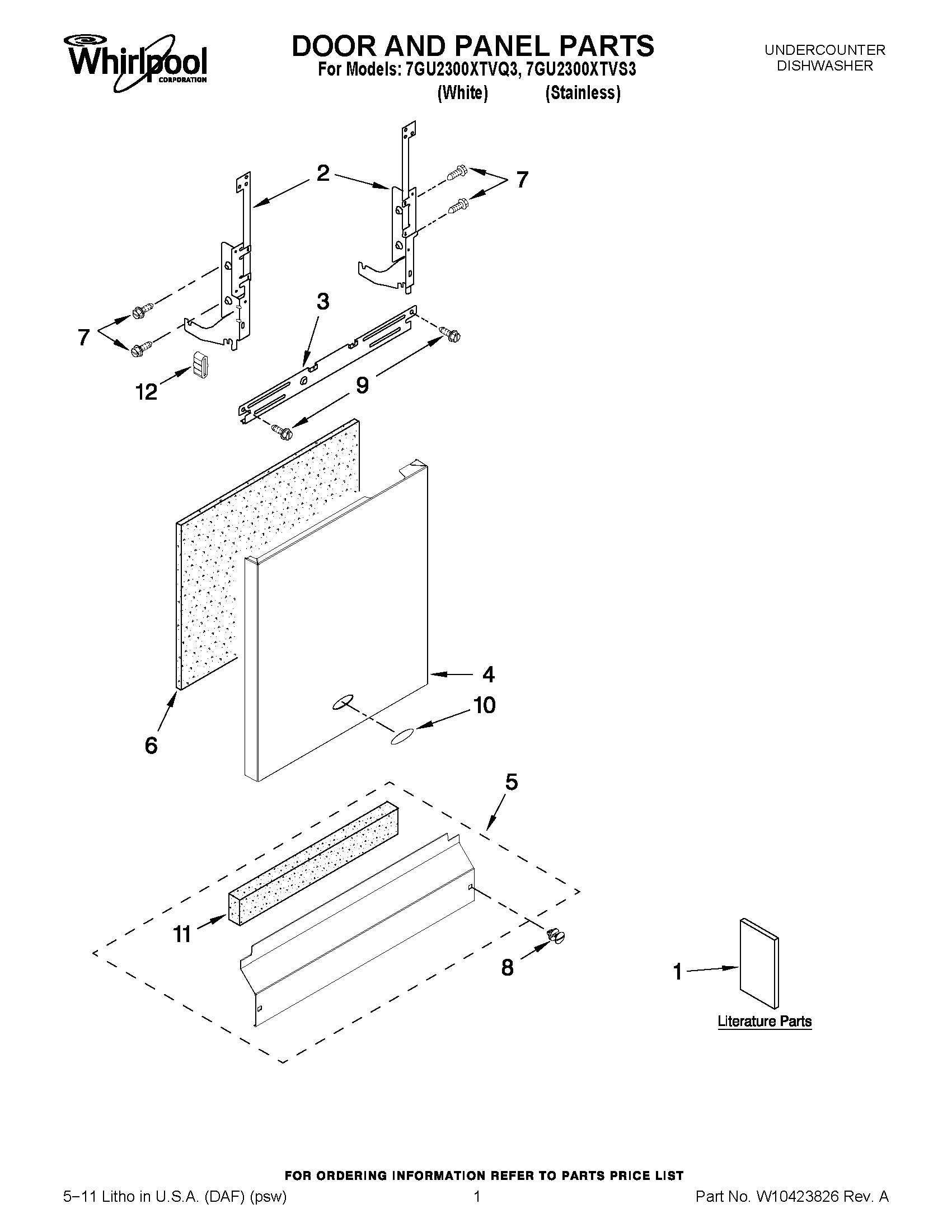

7GU2300XTVQ3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET ENGLISH/SPANISH
1GUIDE, USE & CARE (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4PANEL FRONT (STAINLESS)
4PANEL FRONT (WHITE)
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10109200 Whirlpool Screw
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9SCREW
10NAMEPLATE
11SHIELD
12WP8268961 Whirlpool Friction Pad
