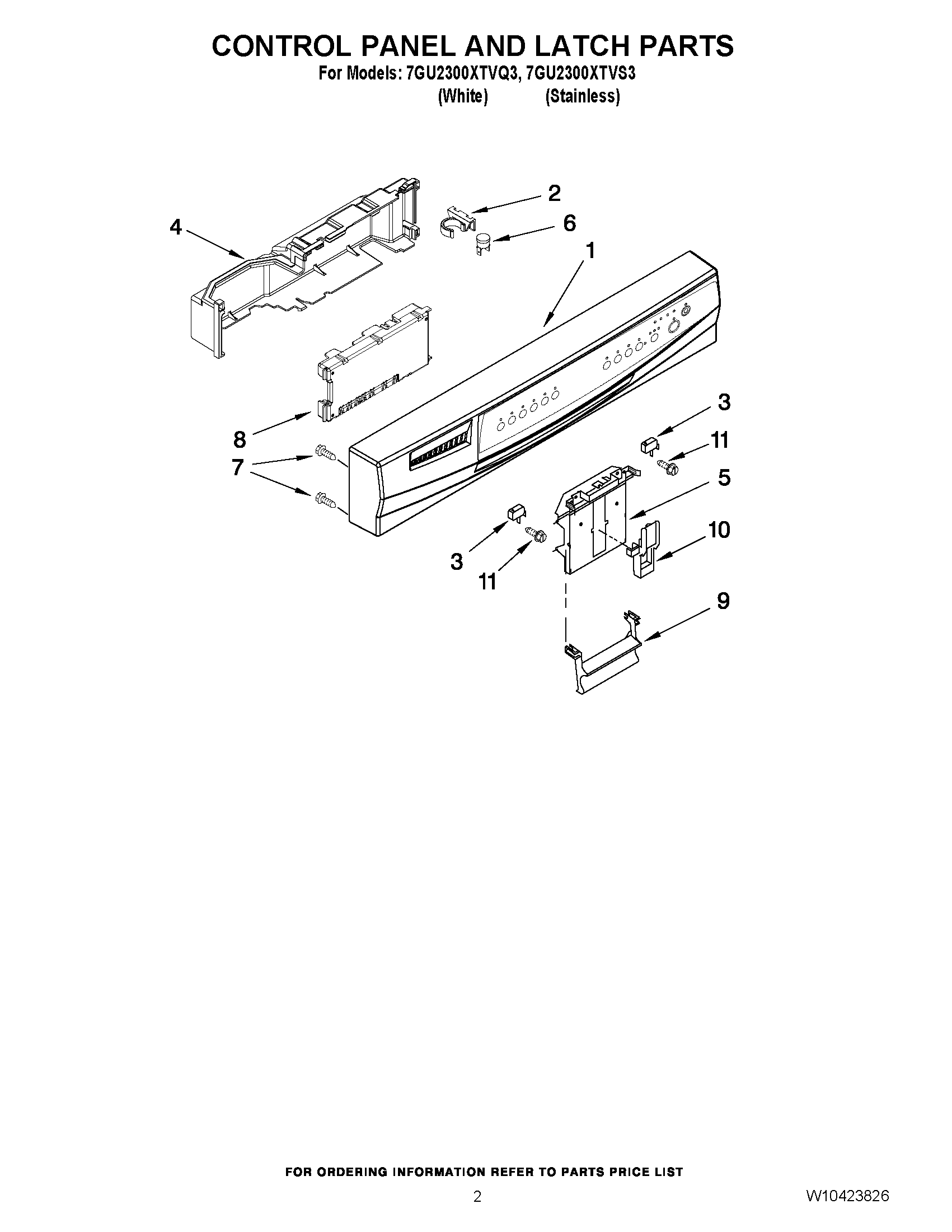

7GU2300XTVQ3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1Console Asm. Includes Active Overlay & Insert (White)
1Console Asm. Includes Active Overlay & Insert (Black)
2Clip, BI-Metal
3WP8269209 Whirlpool Door Switch
4Cover Control Shield Assembly
58193882 Whirlpool Dishwasher Primary Latch Bolt
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348413 Whirlpool Dishwasher Screw
8WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
9WP8534984 Whirlpool Dishwasher Handle
9WP8534985 Whirlpool Dishwasher Handle
10WP8524471 Whirlpool Dishwasher Actuator
11WP3400412 Whirlpool Dishwasher Screw
