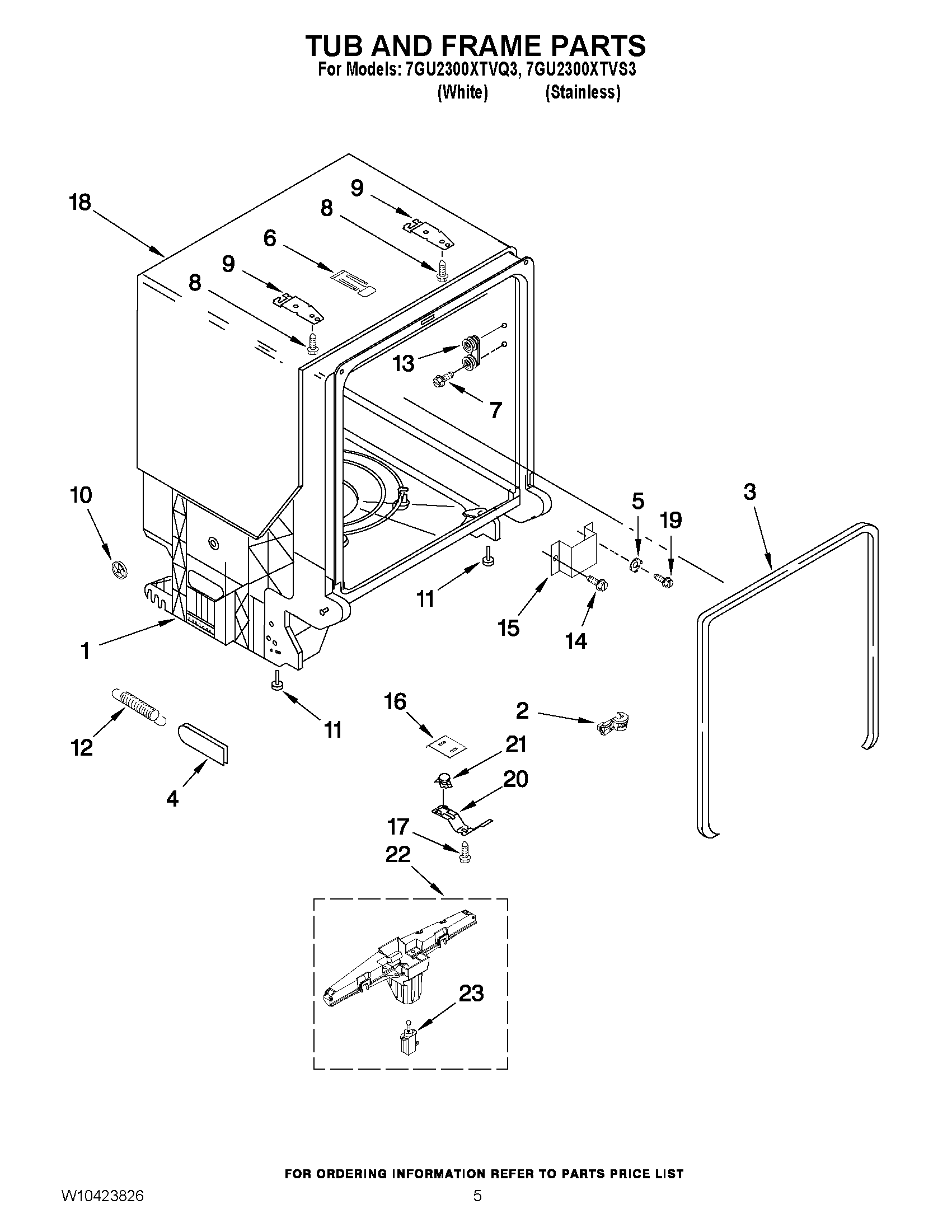

7GU2300XTVQ3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB-DISHWR
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4	WP8268990 Whirlpool Dishwasher Door Spring Bushing
5	WP3378128 Whirlpool Dishwasher Washer
6	WP8580309 Whirlpool Dishwasher Strike
7	W10817436 Whirlpool Screw
8	W10165274 Whirlpool Dishwasher Screw
9	WP8269145 Whirlpool Dishwasher Mounting Bracket
10	WP8269831 Whirlpool Dishwasher Wheel
11	8193716 Whirlpool Leveling Leg
12	WPW10337934 Whirlpool Spring Assembly
13	WP8575897 Whirlpool Dishwasher Tub Wheel
14	WP3400892 Whirlpool Dishwasher Screw
15	WP8268991 Whirlpool Dishwasher Cover Assembly
16	W10321574 Whirlpool Dishwasher Shield
17	WP304231 Whirlpool Dishwasher Screw
18	W11086533 Whirlpool Dishwasher Shield
19	WP3400014 Whirlpool Dishwasher Screw
20	W10539489 Whirlpool Dishwasher Bracket-Stat
21	WP661566 Whirlpool High Limit Thermostat
22	Actuator Assembly
23	Motor, Wax
