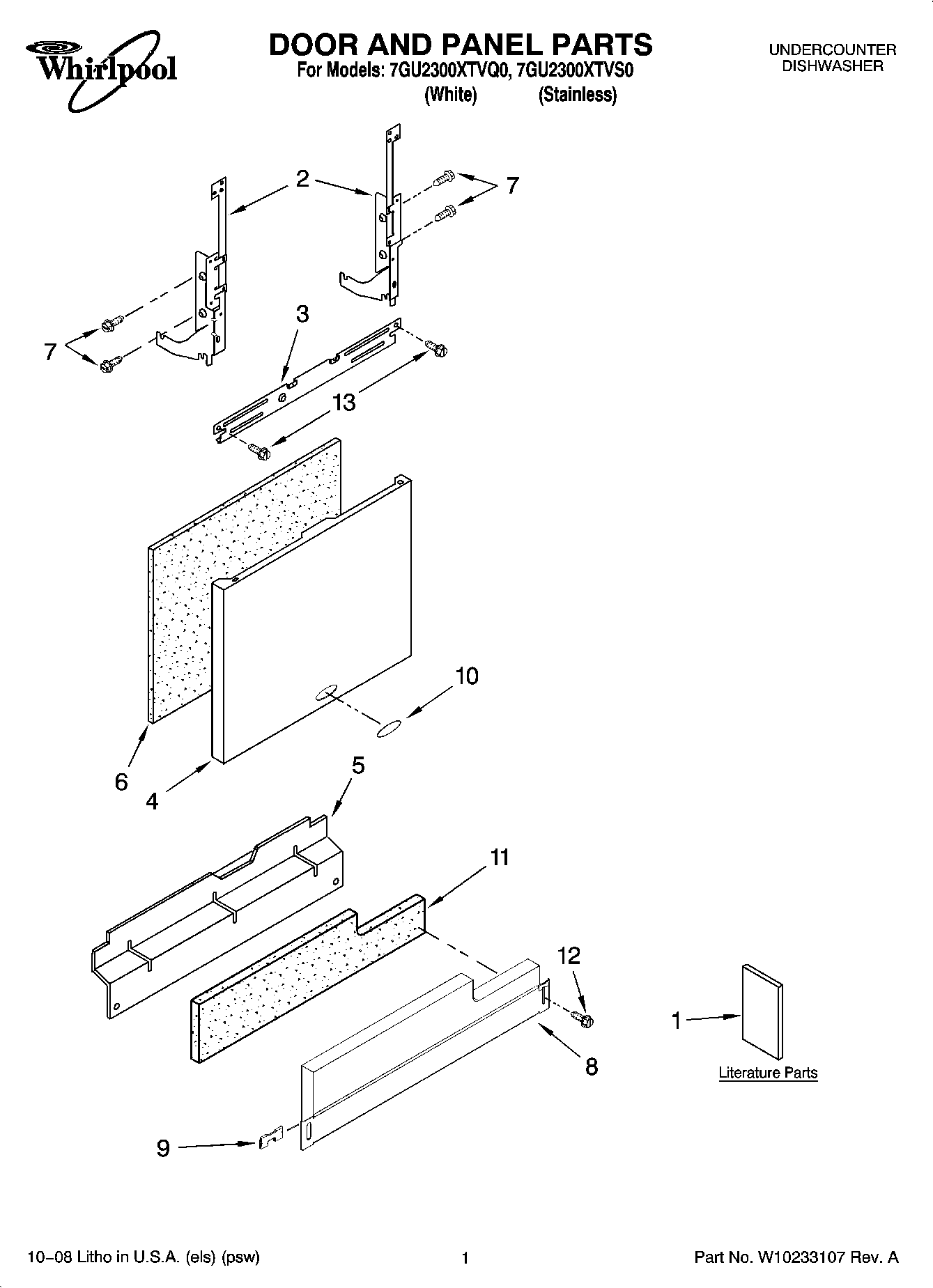

7GU2300XTVS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (SPANISH)
1Instructions, Installation
1Tech Sheet
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Stainless)
4Panel Front (White)
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10109200 Whirlpool Screw
8W10799406 Whirlpool Dishwasher Toe Panel
9WP8269016 Whirlpool Clip Assembly
10NAMEPLATE
11SHIELD
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
