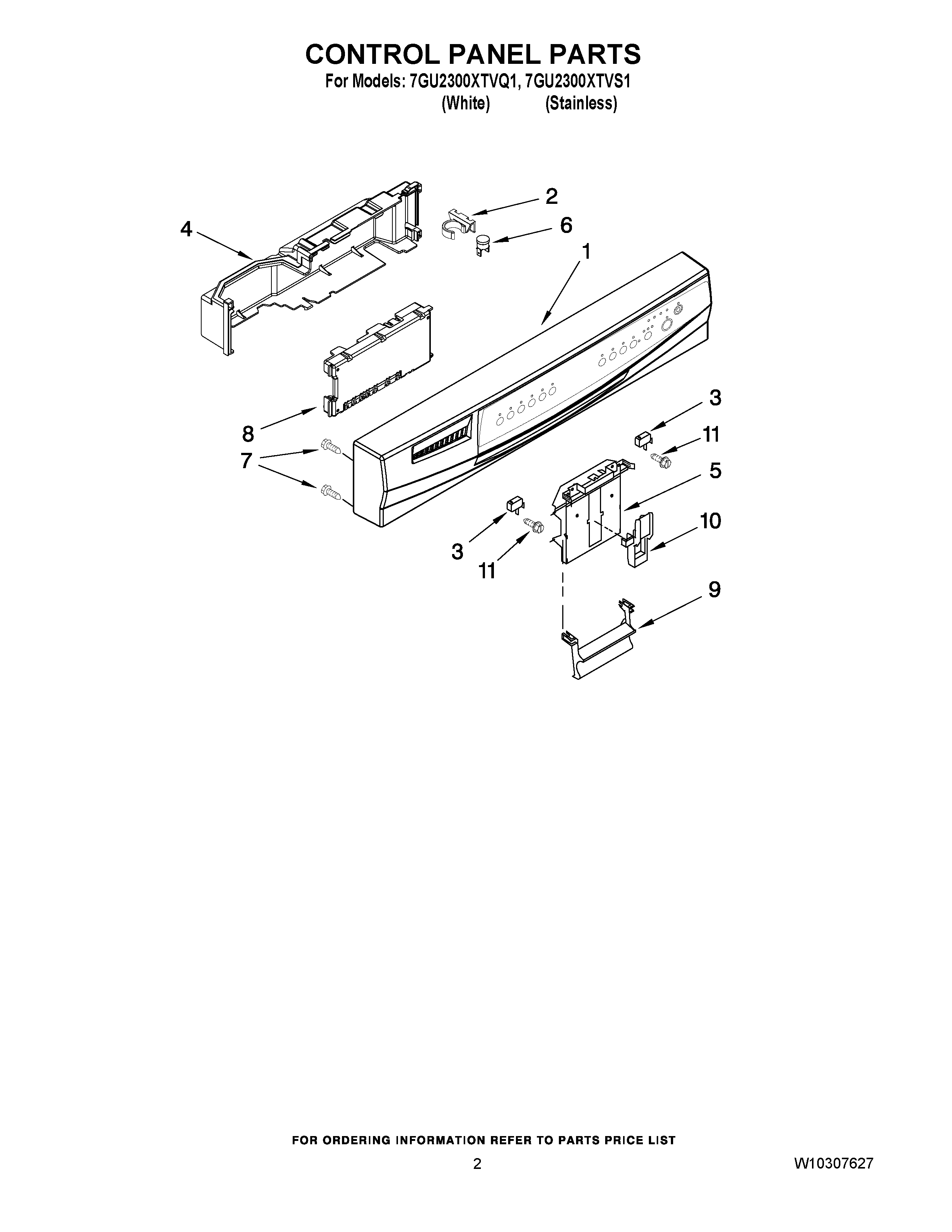

7GU2300XTVS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. Includes Active Overlay & Insert (White)
1	Console Asm. Includes Active Overlay & Insert (Black)
2	Clip, BI-Metal
3	WP8269209 Whirlpool Door Switch
4	Cover Control Shield Assembly
5	8193882 Whirlpool Dishwasher Primary Latch Bolt
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WPW10348413 Whirlpool Dishwasher Screw
8	WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
9	WP8534984 Whirlpool Dishwasher Handle
9	WP8534985 Whirlpool Dishwasher Handle
10	WP8524471 Whirlpool Dishwasher Actuator
11	WP3400412 Whirlpool Dishwasher Screw
