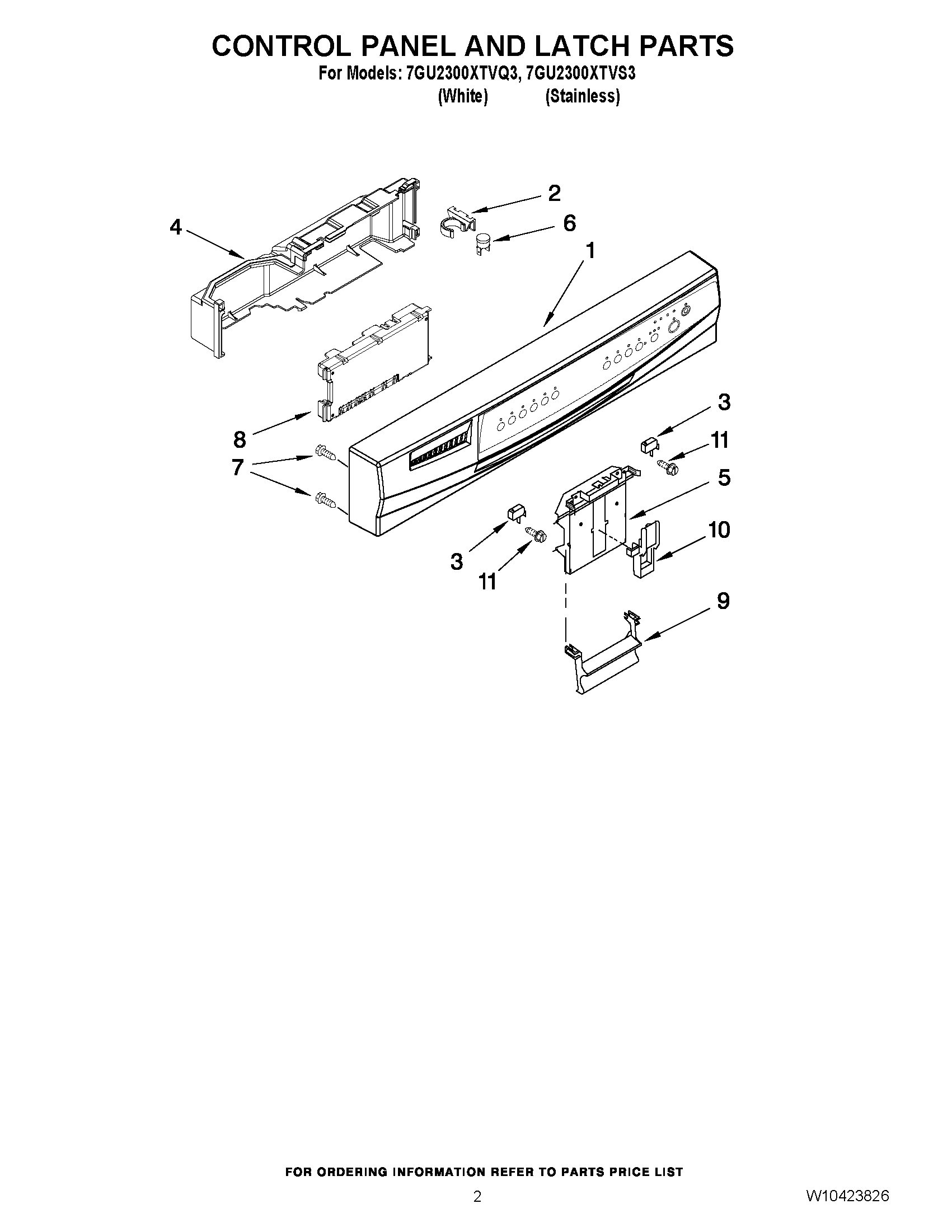

7GU2300XTVS3 02 – CONTROL PANEL AND LATCH PARTSadmin2025-04-26T11:41:11+00:007GU2300XTVS3 02 – CONTROL PANEL AND LATCH PARTS ProductsPositionProduct1Console Asm. Includes Active Overlay & Insert (White)1Console Asm. Includes Active Overlay & Insert (Black)2Clip, BI-Metal3WP8269209 Whirlpool Door Switch4Cover Control Shield Assembly58193882 Whirlpool Dishwasher Primary Latch Bolt6W10258275 Whirlpool Dishwasher Bimetal Fuse7WPW10348413 Whirlpool Dishwasher Screw8WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board9WP8534984 Whirlpool Dishwasher Handle9WP8534985 Whirlpool Dishwasher Handle10WP8524471 Whirlpool Dishwasher Actuator11WP3400412 Whirlpool Dishwasher Screw
