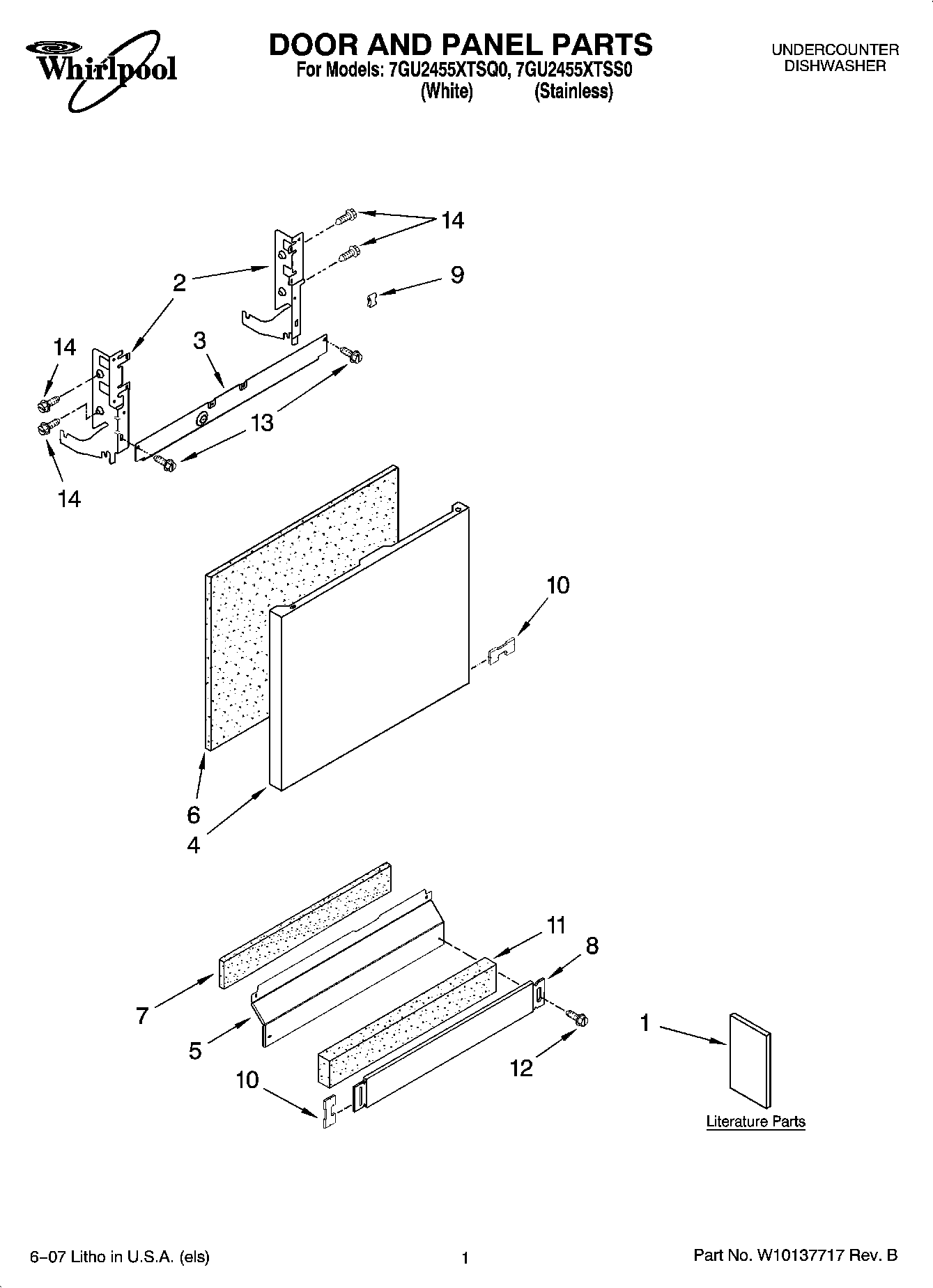

7GU2455XTSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Tech Sheet
1Instructions, Installation
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
4Panel Front (Includes 7) (White)
5PANEL
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7SHIELD
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9Clip, Grounding
10WP8269016 Whirlpool Clip Assembly
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
14WPW10109200 Whirlpool Screw
