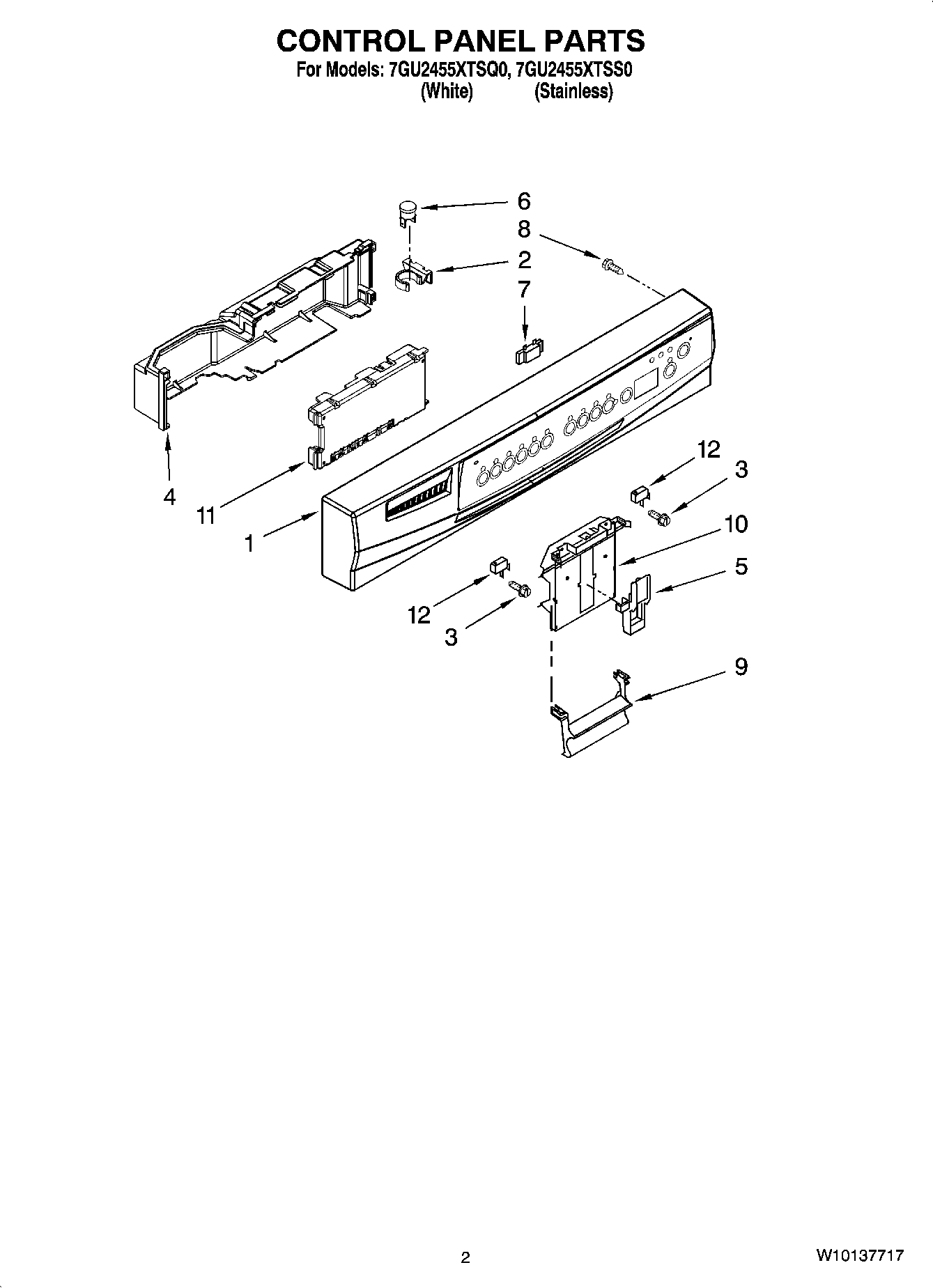

7GU2455XTSS0 02 – CONTROL PANEL PARTS
Written by
in
7GU2455XTSS0 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Console Asm. includes Active Overlay & Insert (White)
1
Console Asm. includes Active Overlay & Insert (Black)
2
Clip, BI-Metal
3
WP3400412 Whirlpool Dishwasher Screw
4
Cover Control Shield Assembly
5
WP8524471 Whirlpool Dishwasher Actuator
6
W10258275 Whirlpool Dishwasher Bimetal Fuse
7
WP8269206 Whirlpool Dishwasher Display
8
WPW10348409 Whirlpool Screw
9
Handle, Latch (White)
9
Handle, Latch (Black)
10
8193882 Whirlpool Dishwasher Primary Latch Bolt
11
WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12
WP8269209 Whirlpool Door Switch
←
