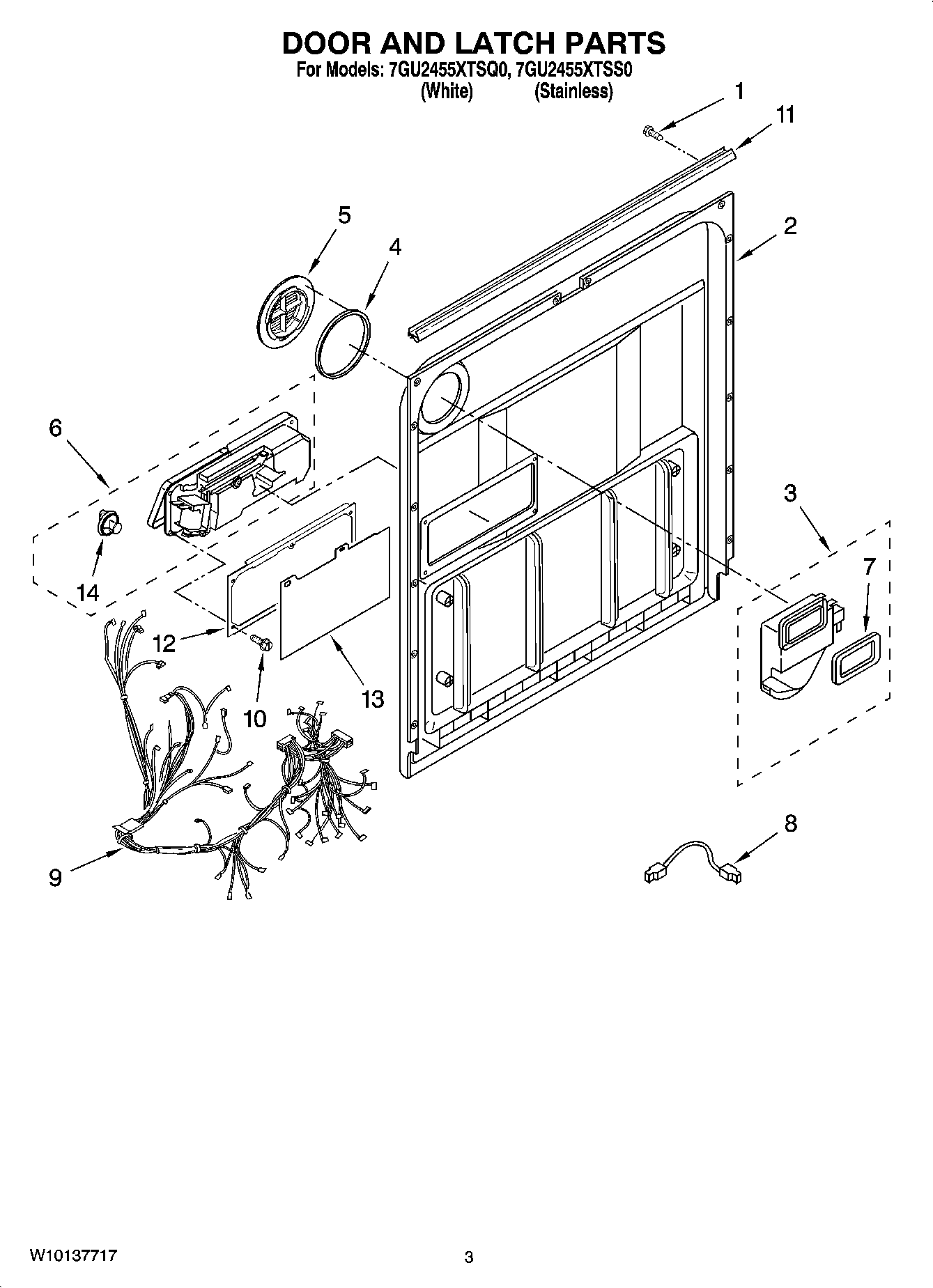

7GU2455XTSS0 03 – DOOR AND LATCH PARTS

7GU2455XTSS0 03 – DOOR AND LATCH PARTS

Written by

in

7GU2455XTSS0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Inner Door Mastic Assembly (Also Order Item 6)
3WPW10164259 Whirlpool Dishwasher Vent Assembly
4WP8269259 Whirlpool Air Vent Gasket
5Deflector, Vent (Also Order Item 5)
6DISPENSER-DW DETERGENT
7WP8269258 Whirlpool Dishwasher Gasket
8Harness, Vent Motor
9Wiring Harness Main
10WPW10177098 Whirlpool Dishwasher Screw
11WP8269296 Whirlpool Dishwasher Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
13WP8531865 Whirlpool Dishwasher Door Shield
14WP8558307 Whirlpool Rinse Aid Dispenser Cap
