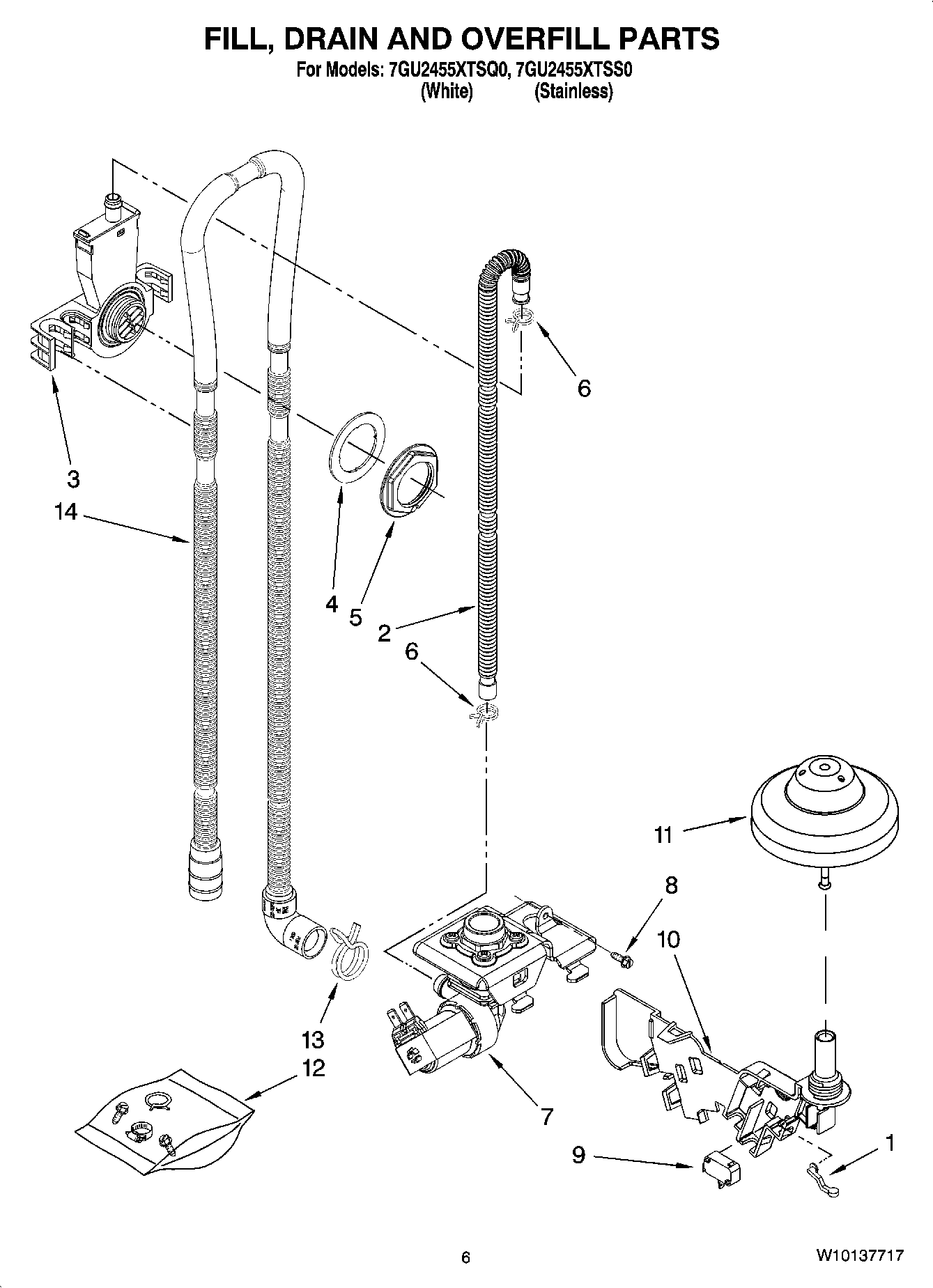

7GU2455XTSS0 06 – FILL, DRAIN AND OVERFILL PARTS

7GU2455XTSS0 06 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

7GU2455XTSS0 06 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP8268909 Whirlpool Dishwasher Switch
10WPW10175383 Whirlpool Dishwasher Standpipe
11WP8268895 Whirlpool Dishwasher Float Assembly
12WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
13WP356138 Whirlpool Hose Clamp
14WPW10358302 Whirlpool Dishwasher Drain Hose
