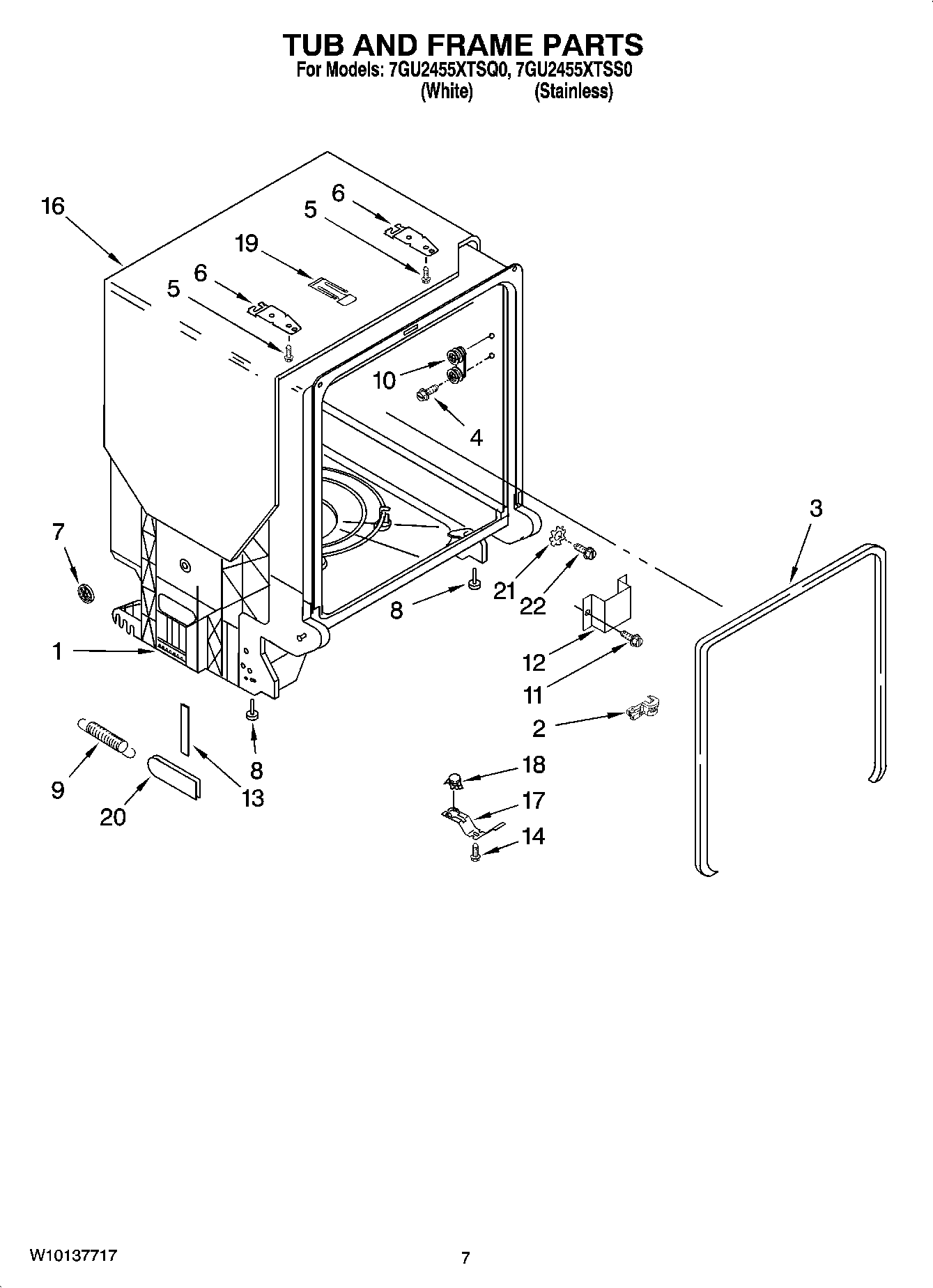

7GU2455XTSS0 07 – TUB AND FRAME PARTS

7GU2455XTSS0 07 – TUB AND FRAME PARTS

Written by

in

7GU2455XTSS0 07 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB-DISHWR
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4W10817436 Whirlpool Screw
5WP489443 Whirlpool Refrigerator Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7WP8269831 Whirlpool Dishwasher Wheel
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8575897 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13WP8268961 Whirlpool Friction Pad
14WP304231 Whirlpool Dishwasher Screw
16W10877094 Whirlpool Shield
17W10539489 Whirlpool Dishwasher Bracket-Stat
18WP661566 Whirlpool High Limit Thermostat
19WP8580309 Whirlpool Dishwasher Strike
20WP8268990 Whirlpool Dishwasher Door Spring Bushing
21WP3378128 Whirlpool Dishwasher Washer
22WP3400014 Whirlpool Dishwasher Screw
