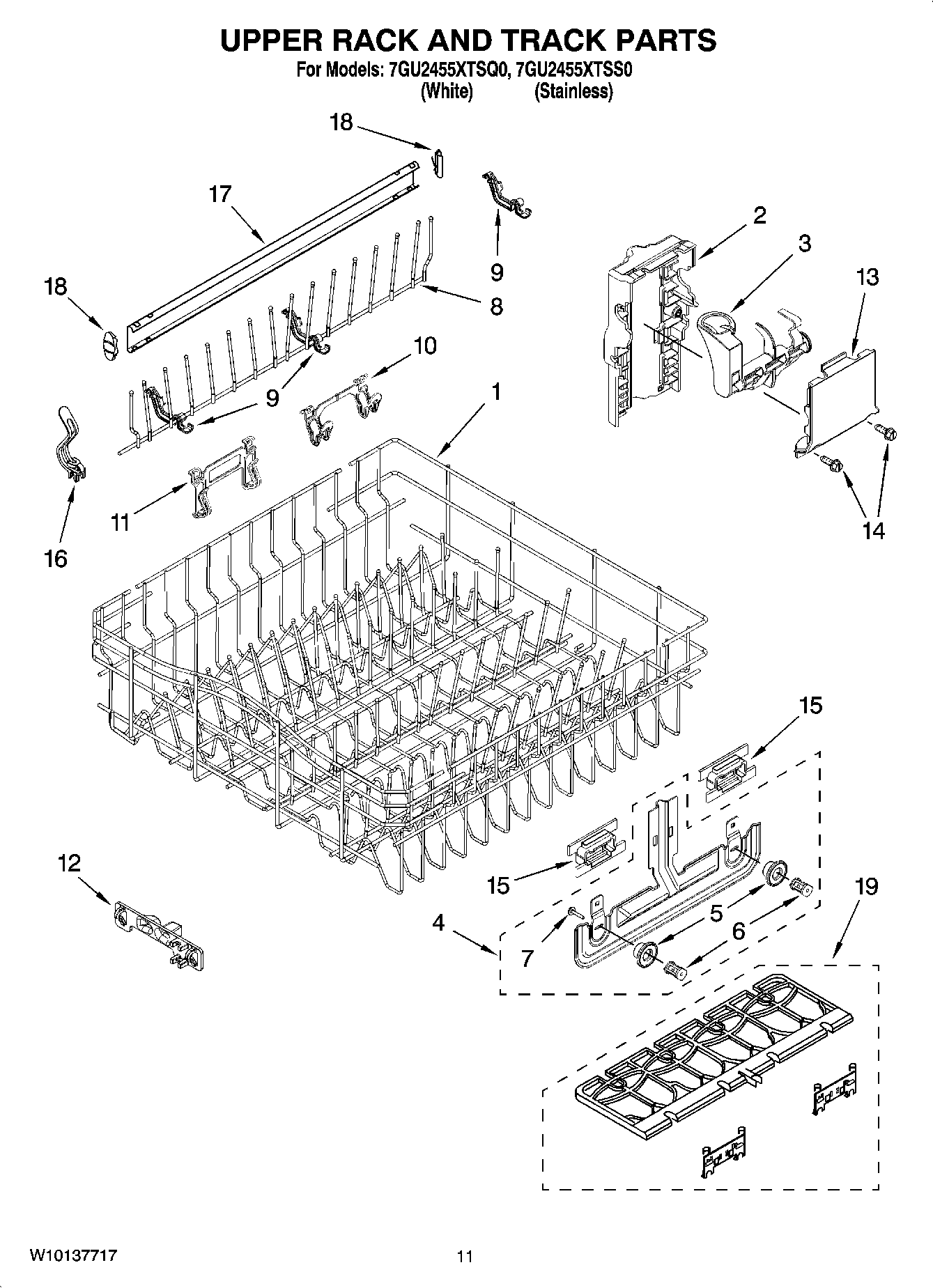

7GU2455XTSS0 09 – UPPER RACK AND TRACK PARTS

7GU2455XTSS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

7GU2455XTSS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
28193741 Whirlpool Dishwasher Adjuster P1
3Actuator, Adjuster (Left Hand)
3Actuator, Adjuster (Right Hand)
4W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5WP3385088 Whirlpool Dishwasher Upper Wheel
6WP8268703 Whirlpool Dishwasher Rack Axle
7WP8281156 Whirlpool Dishwasher Screw
8W10727426 Whirlpool Dishwasher Rack Tine
9PIVOT-TINE
10Clip, Side Utensil
11Clip, Side (Light Items)
12WP8539119 Whirlpool Dishwasher Positioner
14WP9741232 Whirlpool Dishwasher Screw
15WP8268738 Whirlpool Dishwasher Positioner
16WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
17WP3385089 Whirlpool Track
18WP8565925 Whirlpool Slide Rail Stop
19WPW10082810 Whirlpool Dishwasher Cup Shelf
