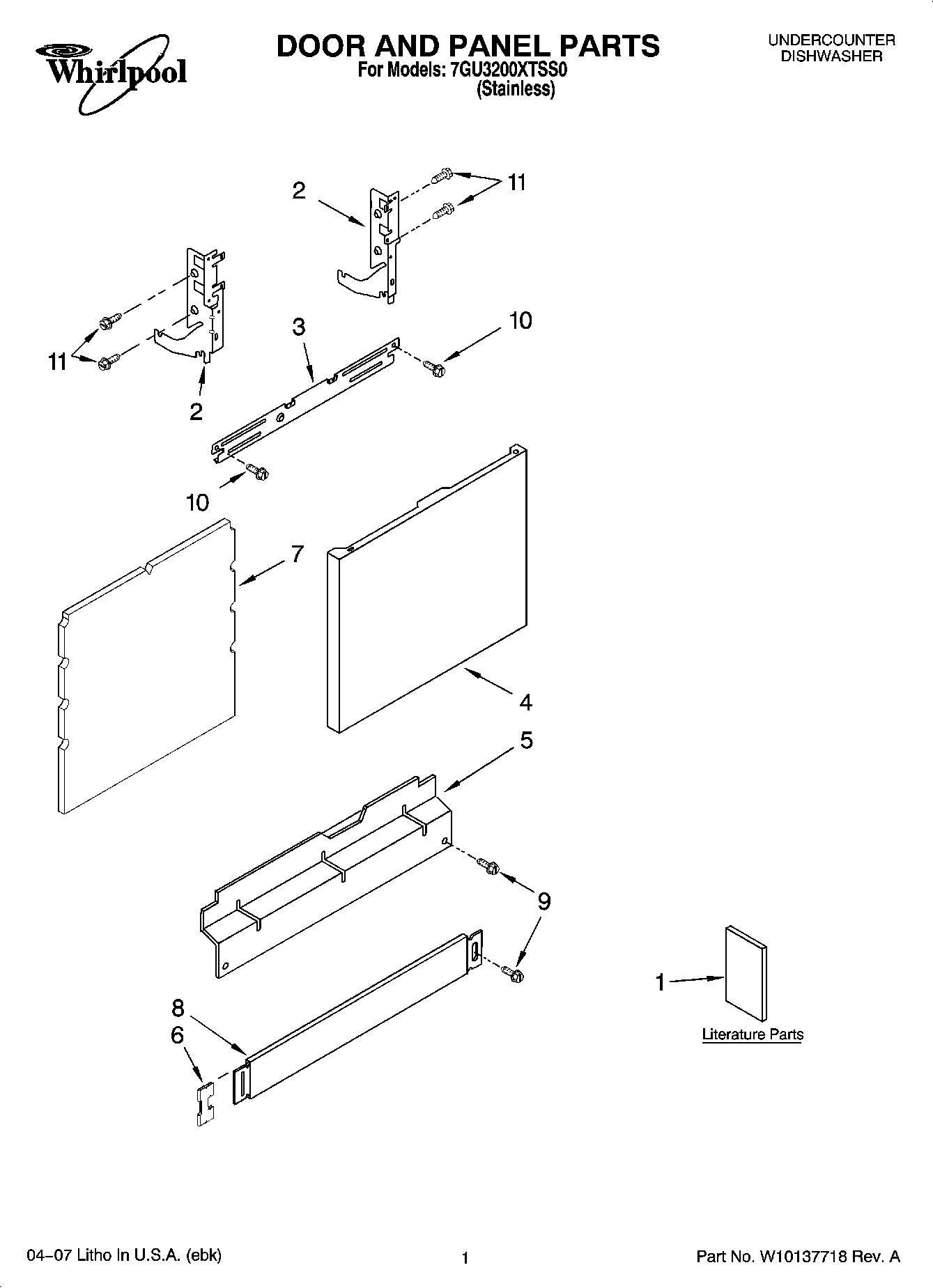

7GU3200XTSS0 01 – DOOR AND PANEL PARTS

7GU3200XTSS0 01 – DOOR AND PANEL PARTS

Written by

in

7GU3200XTSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
7WPW10073520 Whirlpool Dishwasher Insulation Pad
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
11WP3400071 Whirlpool Screw
