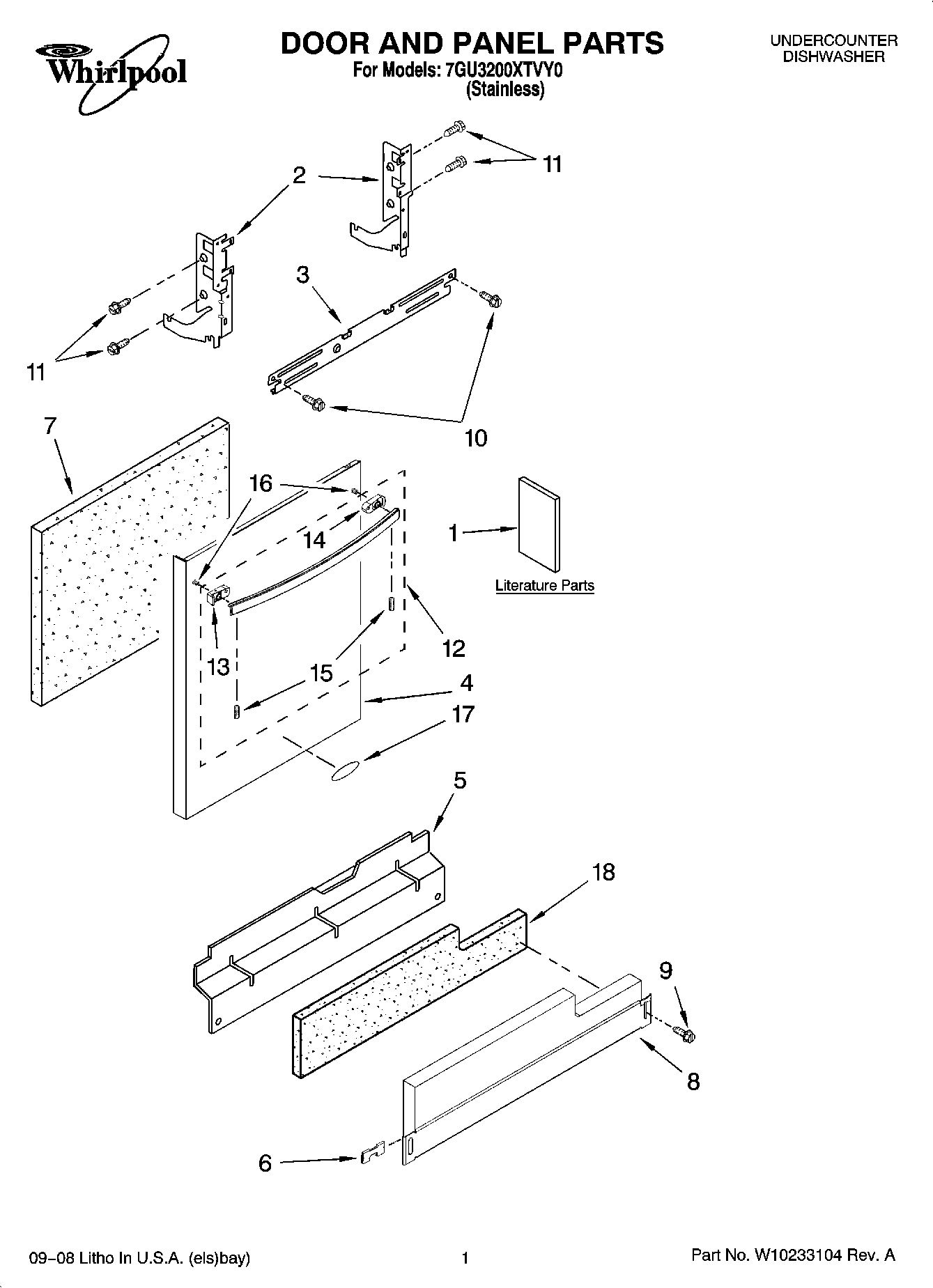

7GU3200XTVY0 01 – DOOR AND PANEL PARTS

7GU3200XTVY0 01 – DOOR AND PANEL PARTS

Written by

in

7GU3200XTVY0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Instructions, Installation
1Guide, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 16 & 17) (Stainless)
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
7WPW10073520 Whirlpool Dishwasher Insulation Pad
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
11WP3400071 Whirlpool Screw
12Handle
13Endcap, L/H
14Endcap, R/H
15WP8534008 Whirlpool Screw
16WP8564951 Whirlpool Dishwasher Stud
17NAMEPLATE
18SHIELD
