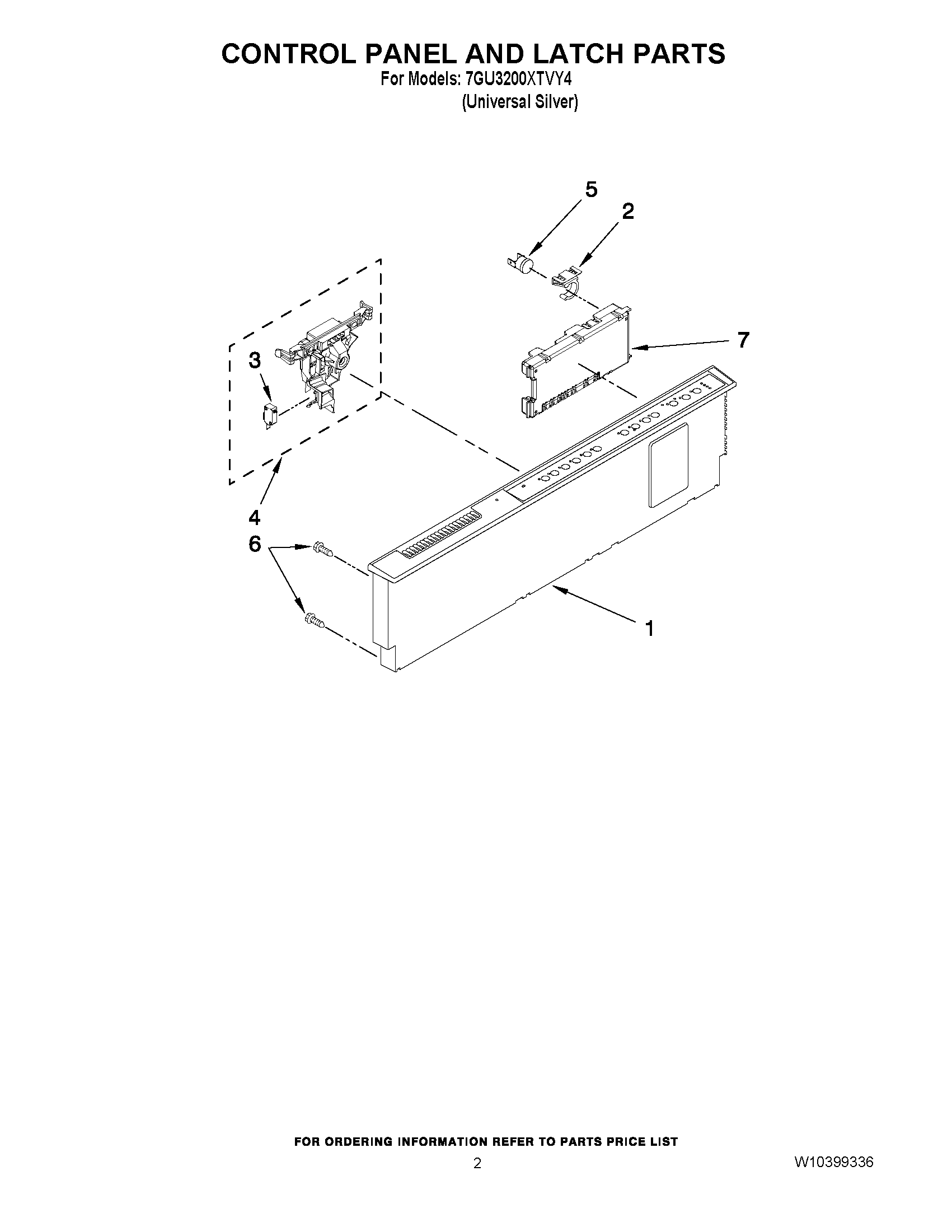

7GU3200XTVY4 02 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2	Clip, BI-Metal
3	WPW10134019 Whirlpool Dishwasher Switch
4	WPW10404412 Whirlpool Door Latch
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10348409 Whirlpool Screw
7	WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
