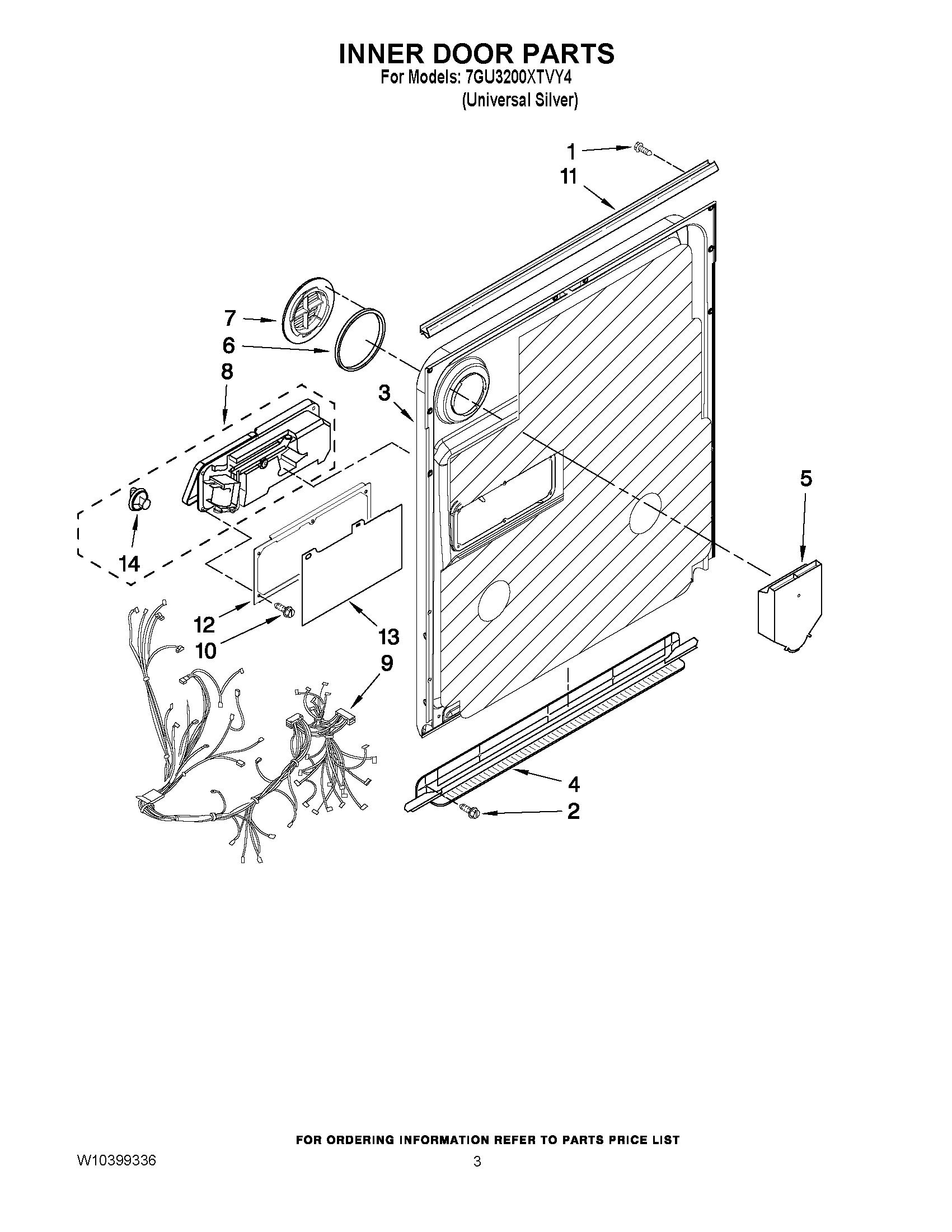

7GU3200XTVY4 03 – INNER DOOR PARTS

7GU3200XTVY4 03 – INNER DOOR PARTS

Written by

in

7GU3200XTVY4 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10164357 Whirlpool Dishwasher Inner Door
4WP8268937 Whirlpool Dishwasher Air Inlet
5W10258708 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WPW10413099 Whirlpool Dishwasher Wire Harness
10WPW10177098 Whirlpool Dishwasher Screw
11WP8535660 Whirlpool Dishwasher Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
13SHIELD
14WP8558307 Whirlpool Rinse Aid Dispenser Cap
