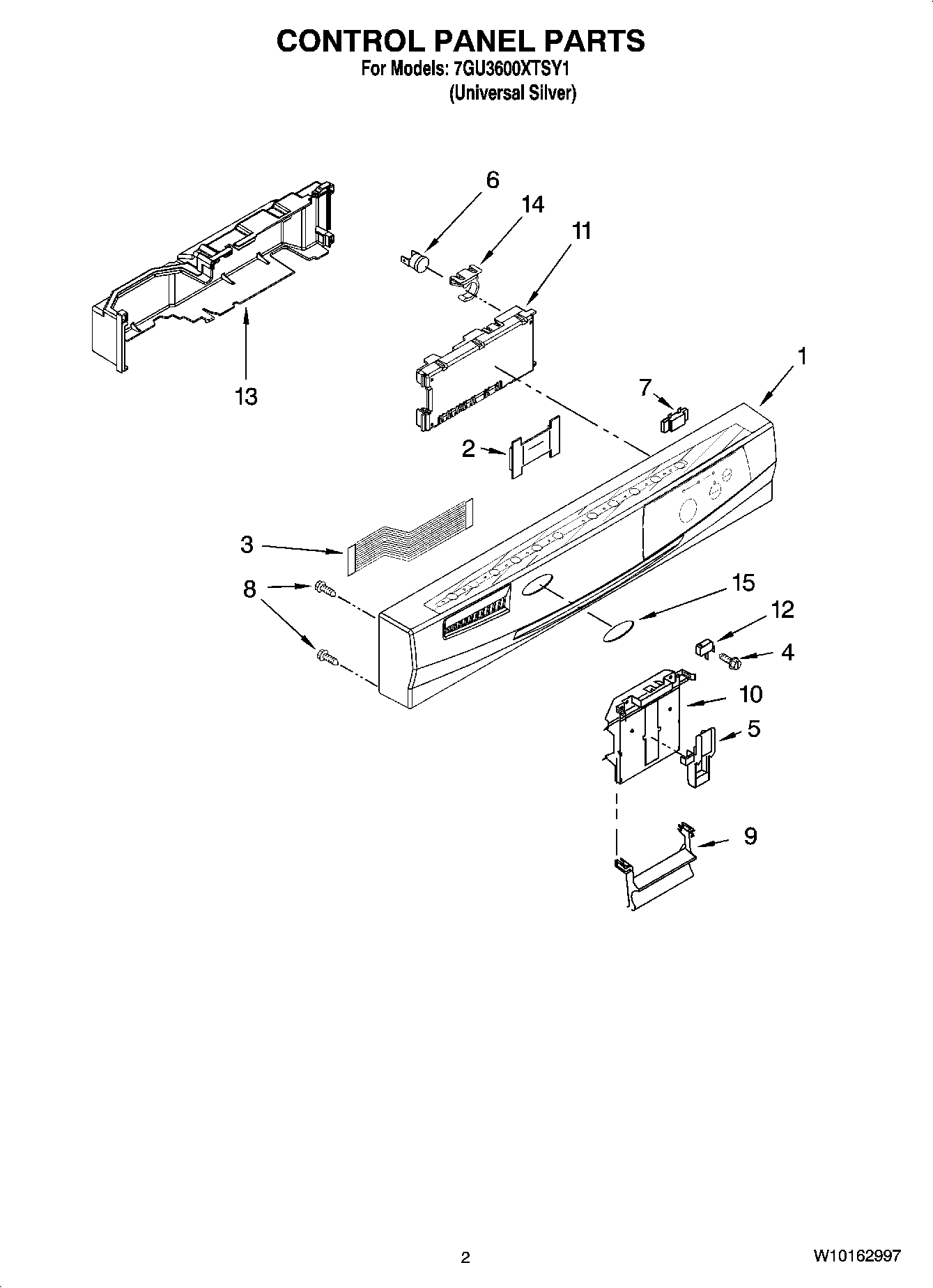

7GU3600XTSY1 02 – CONTROL PANEL PARTS

7GU3600XTSY1 02 – CONTROL PANEL PARTS

Written by

in

7GU3600XTSY1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (Silver)
2Board, Interconnect
3Cable, Ribbon
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP8269206 Whirlpool Dishwasher Display
8WPW10348409 Whirlpool Screw
98575334 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
13Cover, Control Shield
14Clip, BI-Metal
159757613 Whirlpool Oven Nameplate
