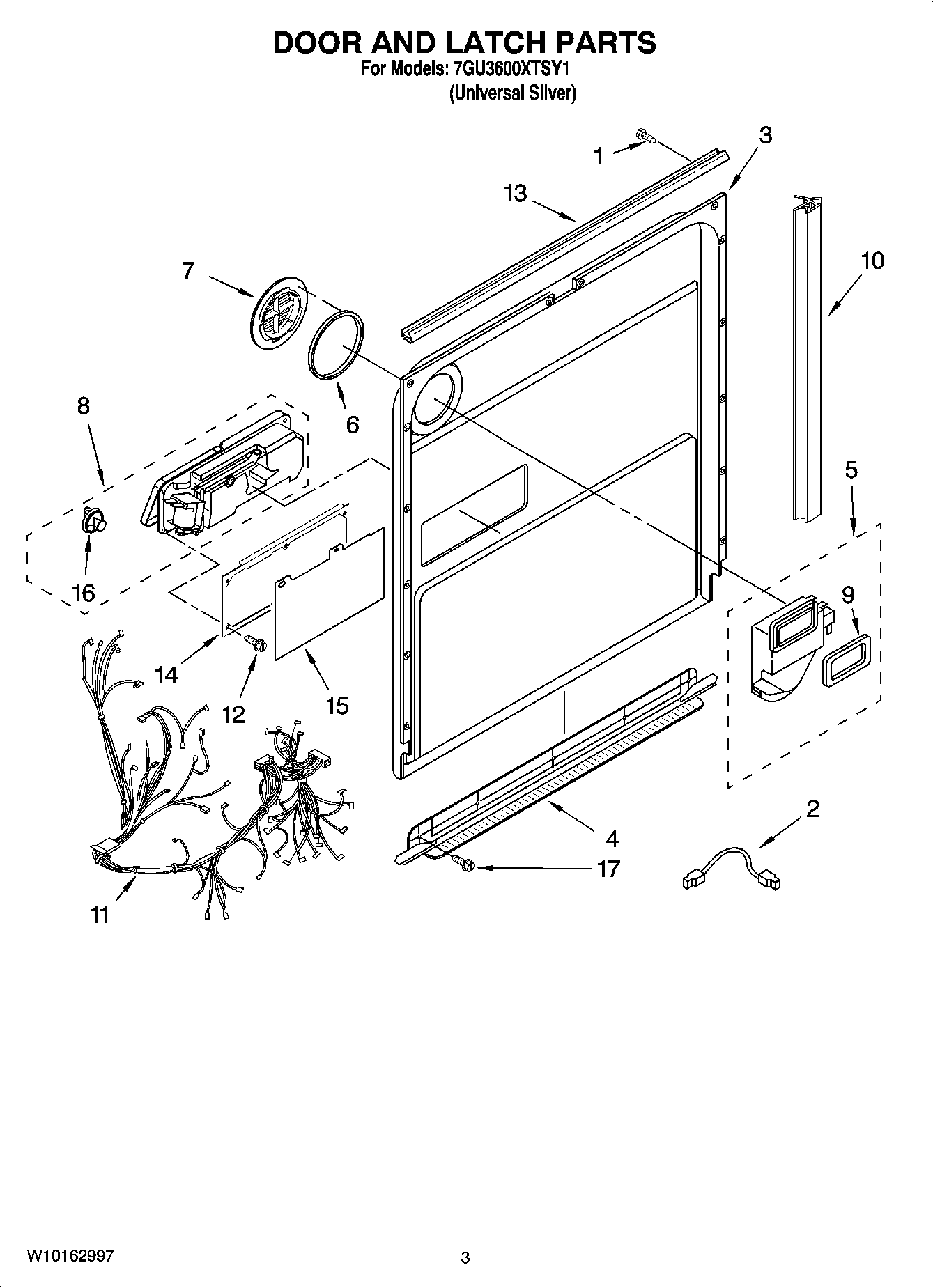

7GU3600XTSY1 03 – DOOR AND LATCH PARTS

7GU3600XTSY1 03 – DOOR AND LATCH PARTS

Written by

in

7GU3600XTSY1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Harness, Vent Motor
3Inner Door Mastic Assembly (Also Order Item 6)
4WP8268937 Whirlpool Dishwasher Air Inlet
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8DISPENSER-DW DETERGENT
9WP8269258 Whirlpool Dishwasher Gasket
108574160 Whirlpool Dishwasher Seal
11Wiring Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WP8535660 Whirlpool Dishwasher Seal
14WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
15WP8531865 Whirlpool Dishwasher Door Shield
16WP8558307 Whirlpool Rinse Aid Dispenser Cap
17W11631670 Whirlpool Screw
