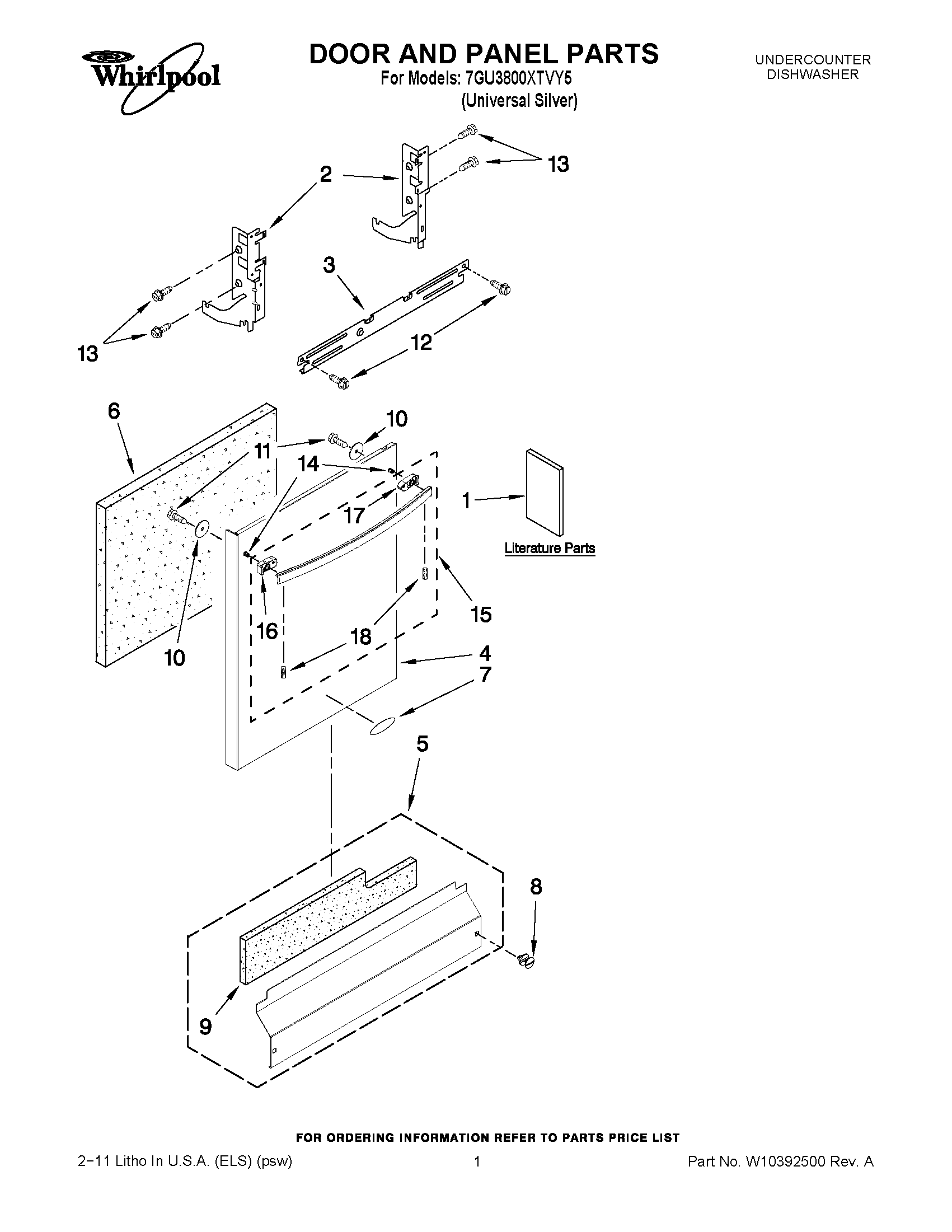

7GU3800XTVY5 01 – DOOR AND PANEL PARTS

7GU3800XTVY5 01 – DOOR AND PANEL PARTS

Written by

in

7GU3800XTVY5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1TECH SHEET (SPANISH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 16 & 17) (Stainless)
5W10827631 Whirlpool Toe Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7NAMEPLATE
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9SHIELD
10PLATE-BACKING
11Screw
12WP489069 Whirlpool Compactor Screw
13WP3400071 Whirlpool Screw
14WP8564951 Whirlpool Dishwasher Stud
15Handle
16Endcap, L/H
17Endcap, R/H
18WP8534008 Whirlpool Screw
