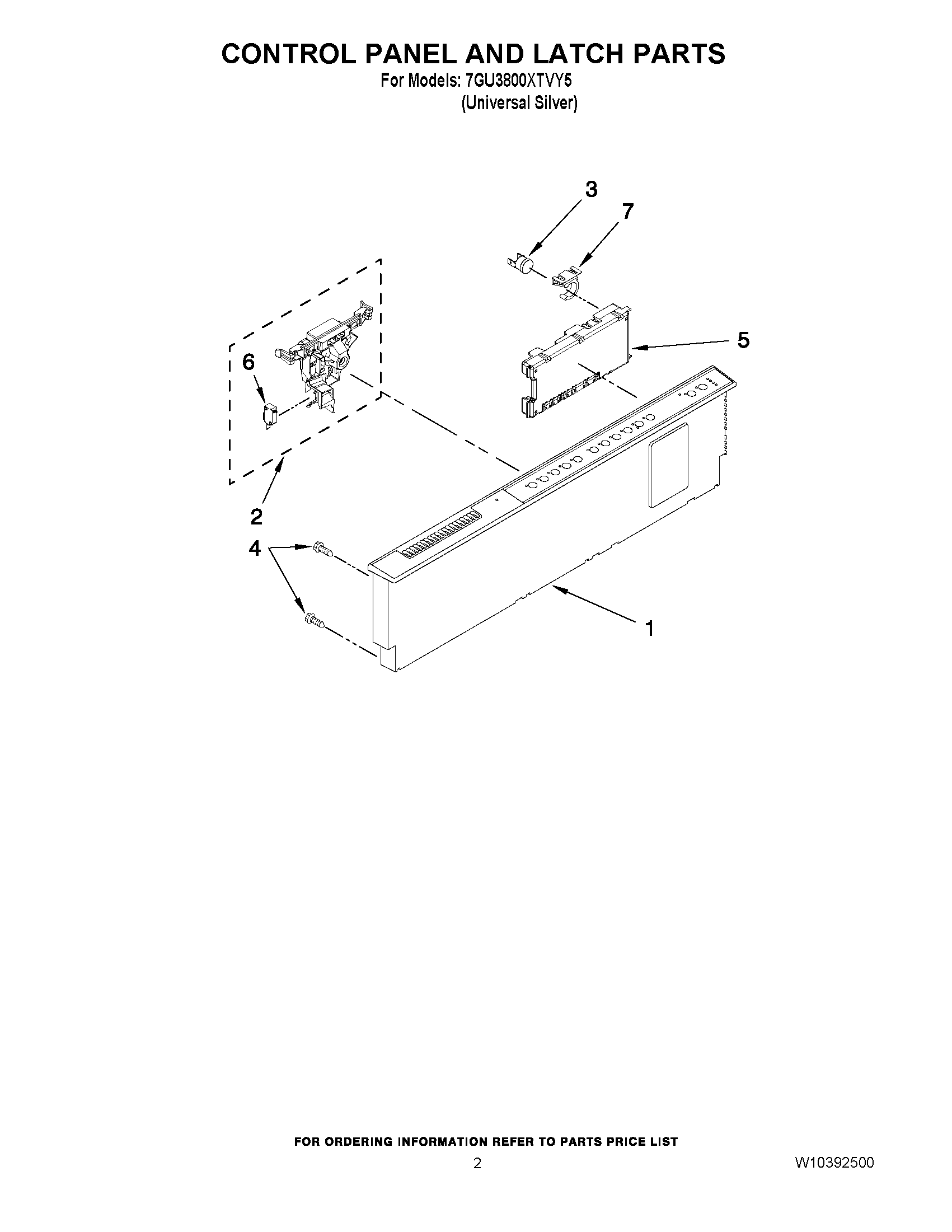

7GU3800XTVY5 02 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (MIDNIGHT GREY)
2	WPW10404412 Whirlpool Door Latch
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WPW10348409 Whirlpool Screw
5	WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
6	SWITCH, DOOR
7	Clip, BI-Metal
