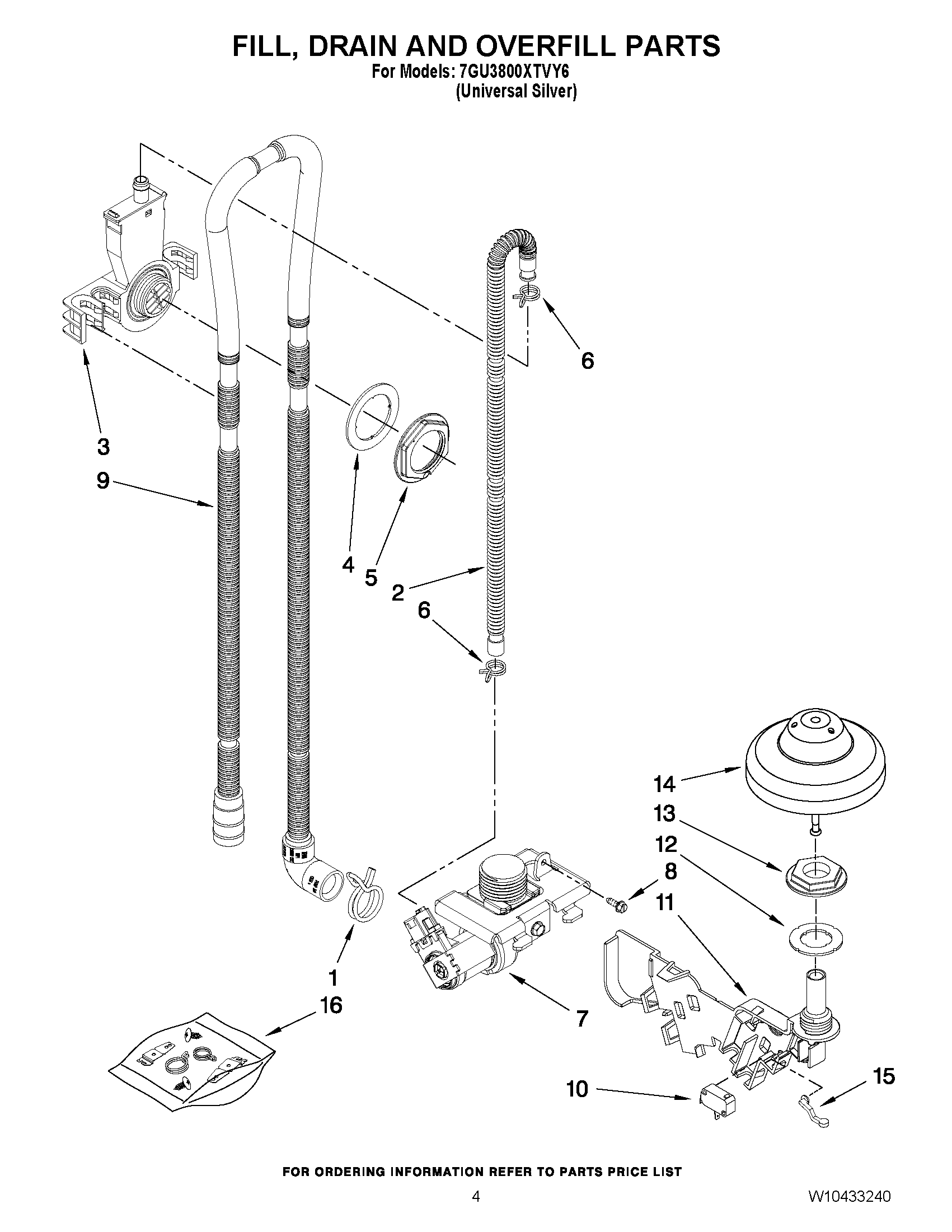

7GU3800XTVY6 04 – FILL, DRAIN AND OVERFILL PARTS

7GU3800XTVY6 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

7GU3800XTVY6 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP285655 Whirlpool Hose Clamp
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10213825 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WPW10545278 Whirlpool Drain Hose
10WPW10102495 Whirlpool Dishwasher Switch
118193506 Whirlpool Dishwasher Switch
12WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
13WPW10195038 Whirlpool Dishwasher Nut
14WP8268895 Whirlpool Dishwasher Float Assembly
15WP8268892 Whirlpool Dishwasher Lever
16MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS 2 HOSE CLAMPS & 2 BRACKETS)
